AVMATRIX converters have earned a reputation for the highest quality and best levels of reliability. Built to the exacting standards of all avmatrix hardware, Mini-converters are backed by our world class support network and advanced replacement policy with
3-year international warrnaty
.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
AVMATRIX
-
Use:
-
Broadcasting
-
Warranty Time:
-
3years
-
Product name:
-
12G-SDI Fiber Optic Extender
-
Transmitter:
-
SDI Input*1, Loop Out*1
-
Receiver:
-
SDI Out*2
-
Fiber Type:
-
SFP Module(LC)
-
Distance:
-
0-10km
-
Optical Wavelength:
-
1310nm
-
Bandwidth:
-
12Gbps
-
Dimension:
-
71mm*41mm*23mm
-
Support:
-
UP to 4K 12G
Quick Details
-
Type:
-
Fiber Optic Transceivers
-
Model Number:
-
FE1121-12G
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
AVMATRIX
-
Use:
-
Broadcasting
-
Warranty Time:
-
3years
-
Product name:
-
12G-SDI Fiber Optic Extender
-
Transmitter:
-
SDI Input*1, Loop Out*1
-
Receiver:
-
SDI Out*2
-
Fiber Type:
-
SFP Module(LC)
-
Distance:
-
0-10km
-
Optical Wavelength:
-
1310nm
-
Bandwidth:
-
12Gbps
-
Dimension:
-
71mm*41mm*23mm
-
Support:
-
UP to 4K 12G
Brief Introduction
|
1
|
10km transmission distance
|
|
2
|
Support 12Gb/s all formats, including 3G level A and level B
|
|
3
|
SFP module with LC connector
|
|
4
|
12G-SDI input & loopout on transmitter
|
|
5
|
Dual 12G-SDI outputs on receiver
|
|
6
|
SDI input automatic switching SD, HD, 3G, 6G & 12G
|
|
7
|
5V USB power supply
|

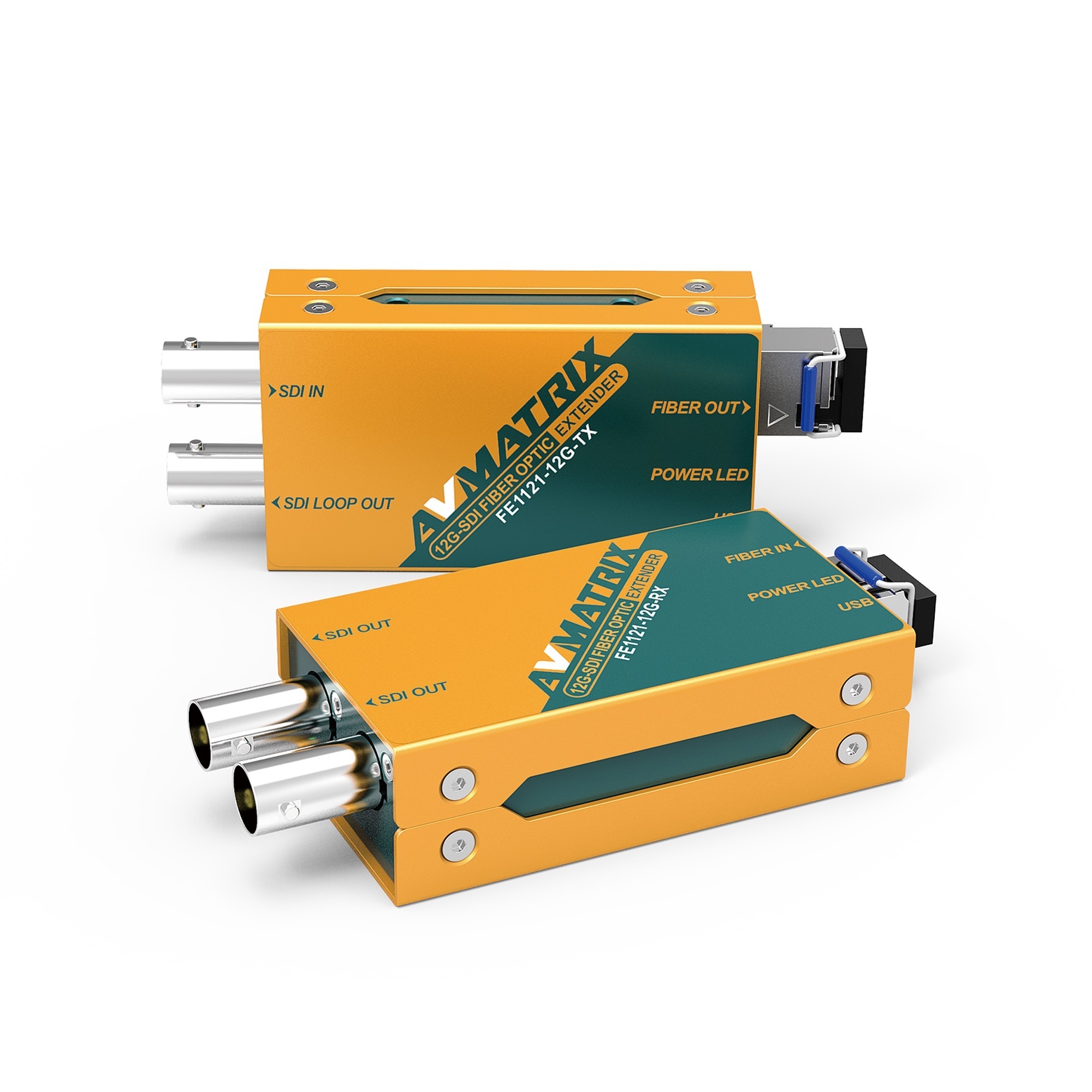

FE1121-12G
12G / 6G / 3G-SDI Fiber Optic Extender
FE1121-12G
is a transmitter/receiver kit supporting single-mode LC simplex fiber extensions up to 10km. It is a miniature-style extension solution that supports all SDI formats resolutions up to 4k@60hz with audio and metadata, also supports level A and level B for 3G-SDI. It features a local SDI loop out and dual SDI outputs and supports SD/HD/SD/3G/6G/12G-SDI signals. It is also compatible with m
ultimode fiber.
Product Description
10km Transmission
The 12G-SDI Fiber Optic Extender / converter is a transmitter/receiver kit supporting 1310nm wavelength single-mode LC simplex fiber extensions up to 100km. It is a miniature-style extension solution that supports all SDI formats resolutions up to 1080p (Max. bandwidth: 3Gbps) with audio and metadata.
SFP module with LC connector
The fiber extender uses hot-pluggable SFP design with LC connector. You can replace the module anytime and anywhere. It is designed to transmit data rates from 50Mbps to 3Gbps, compliant with SFP MSA , SFF-8472 and SMPTE 297M-2006.
SDI Equalization & Re-clocking
Equalized on the SDI input and reclocking on the SDI outputs to maximize performance up to 80m for 12G, 120m for 3G and 140m for HD-SDI. It ensures transmission quality and effect of eye diagram, and fully compatible with 3G level A & level B formats.
Techniacl Parameter
About AVMATRIX
After-Sales Service
About AVMATRIX
AVMATRIX is specialized in processing high definition video signals for years. we have developed and produced a series of pro video devices, including signal converter, multi-viewer, optical fiber converter, signal distribution amplifier, signal generator and matrix switcher, etc.
