Quick Details
-
Weight (KG):
-
190
-
Name:
-
grinding polishing machine
-
Application:
-
grinding polishing machine
-
Type:
-
grinding polishing machine
-
Function:
-
grinding polishing machine
-
Usage:
-
grinding polishing machine
-
max suitable diameter:
-
300mm
-
Power:
-
3.4kw
-
voltage:
-
220/380v or customize
-
Working head:
-
1-10
Quick Details
-
Place of Origin:
-
Henan,China(Mainland)
-
Brand Name:
-
HONEST
-
Power (kW):
-
4
-
Weight (KG):
-
190
-
Name:
-
grinding polishing machine
-
Application:
-
grinding polishing machine
-
Type:
-
grinding polishing machine
-
Function:
-
grinding polishing machine
-
Usage:
-
grinding polishing machine
-
max suitable diameter:
-
300mm
-
Power:
-
3.4kw
-
voltage:
-
220/380v or customize
-
Working head:
-
1-10

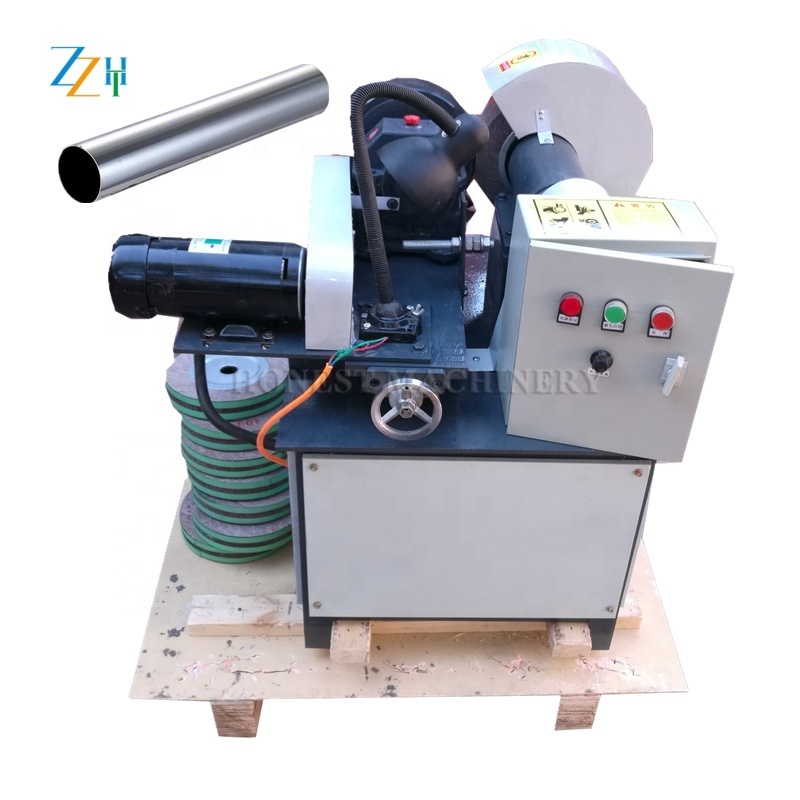

Automatic Grinding Polishing Machine / Tube Polishing Machine / SUS Pipe Grinding Machine
Automatic Steel tube Stainless steel pipe grinding polishing machine Pipe Polisher Machine
Application : polishing machine can be of various round tube, the surface of cylindrical workpiece rust, polishing, polishing, wire drawing, polishing, descaling, bright mirror polishing etc..
Single working head
|
Model |
HT-SP80 |
HT-SP120 |
HT-SP150 |
HT-SP200 |
|
Max working dia.(MM) |
1-80 |
1-120 |
1-150 |
20-200 |
|
Max working length(MM) |
6000 |
6000 |
6000 |
6000 |
|
Main roll dia.(MM) |
32 |
32 |
32 |
32 |
|
Max wheel dia.(MM) |
300 |
300 |
300 |
300 |
|
Max wheel thickness(MM) |
160 |
160 |
160 |
160 |
|
Guide roller dia.(MM) |
230 |
230 |
260 |
260 |
|
Buff whell speed(r/min) |
2800 |
2800 |
2800 |
2800 |
|
Guide roller speed(r/min) |
0-200(adjustable) |
|||
|
Working speed(m/min) |
0-10(adjustable) |
|||
|
Buff wheel power(KW) |
3 |
3 |
4 |
4 |
|
Guide roller power(KW) |
0.4 |
0.4 |
0.8 |
0.8 |
|
Total power(KW) |
3.4 |
3.4 |
4.8 |
4.8 |
|
Total weight(KG) |
320 |
360 |
420 |
460 |
|
Dimension (MM) |
900*700*1200 |
1000*700*1200 |
1100*800*1200 |
1200*800*1200 |
|
Lighting voltage(V) |
36 |
36 |
36 |
36 |
Multi working heads(2/4/6/8/10 heads also could customize)
|
Model |
HT-DP2 |
HT-DP4 |
HT-DP10 |
|
Polishing head |
2pcs |
4heads |
10pcs |
|
Working dia.(MM) |
6-219 |
6-219 |
6-219 |
|
Guide roller dia.(MM) |
120 |
120 |
120 |
|
Buff whell speed(r/min) |
2800 |
2800 |
2800 |
|
Guide roller speed(r/min) |
0-200(adjustable) |
0-200(adjustable) |
0-200(adjustable) |
|
Working speed(m/min) |
0-10(adjustable) |
0-10(adjustable) |
0-10(adjustable) |
|
Motor |
variation speed motor |
variation speed motor |
variation speed motor |
|
Total power(KW) |
10 |
35 |
35 |
|
Total weight(KG) |
800 |
1600 |
3000 |
|
Dimension (CM) |
120*120*150 |
220*120*150 |
480*120*150 |
If you need further information, please contact us freely, we will do our best to cooperate with you .
