Quick Details
-
Thickness:
-
2-6mm
-
Size:
-
300*300mm,600*600mm, 1200*2400
-
Name:
-
pmma lgp
-
Application:
-
lighting, advertising
-
Light efficiency::
-
Above 90
-
Certificate:
-
ROHS,
-
Color:
-
clear+laser dot
-
Density:
-
1.2g/cm3
-
Cover:
-
PE film
-
REsistance:
-
high heat resistance
-
service:
-
OEM/ODM
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
P01
-
Thickness:
-
2-6mm
-
Size:
-
300*300mm,600*600mm, 1200*2400
-
Name:
-
pmma lgp
-
Application:
-
lighting, advertising
-
Light efficiency::
-
Above 90
-
Certificate:
-
ROHS,
-
Color:
-
clear+laser dot
-
Density:
-
1.2g/cm3
-
Cover:
-
PE film
-
REsistance:
-
high heat resistance
-
service:
-
OEM/ODM

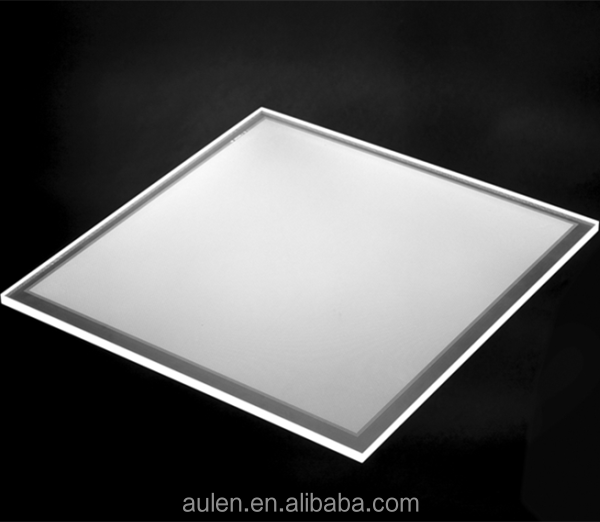

Acrylic LGP Sheet Light Guide Panel,laser engraving light guide panel
Specification of Acrylic LGP
| Product type | Acrylic Light Guide Panel/PMMA LGP |
| Material | MMA imported from Mitsubishi |
| Density | 1.2g/cm3 |
| Standard size |
300*300mm, 600*600mm, 1220*1830mm(4*6ft), 1220*2440mm(4*8ft), 24"*36", any customized sizes |
| Thickness | 3mm, 4mm, 6mm |
| Color | clear+laser dotted/clear+3d v-cutting/clear+tiny stripes |
| Packing | covered with PE film, and using cartons or wooden pallet for delivery |
| Certificate | SGS,ISO9001,CE |
| MOQ | 1pcs(negotiable when we have in stock) |
| Payment | T/T, L/C, Western Union, Paypal |
| Delivery | 7days |
Acrylic Technical Parameters
| Property | Property |
ASTM Typical Value 3 Method mm (Thickness) |
| Mechanical Property | Specific Gravity | D792 1.19 |
| Optical Property | Tensile Strength | D638 700 kg/cm2 |
| Flexural Strength | D790 1170 kg/cm2 | |
| Modulus of Elasticity | 28000-35000 kg/cm2 | |
| Compressive Strength | D695 1200 kg/cm2 | |
| Rockwell Hardness | D785 M-100 | |
| Refractive Index | D542 1.49 | |
| Light Transmission,Total | D1003 93% | |
| Thermal Property | Forming Temperature | Approx 150-180℃ |
| Deflection Temperature | D648 95℃ | |
| Vicat Softening Point | D1525 120℃ (223℉) | |
|
Coefficient of Linear Thermal Expansion (-18℃ To 38℃ Ave) |
D696 5×10-5 cm/cm/℃ | |
| Coefficient of Thermal Conductivity | Cenco-Fitch 6×10-5 cm/cm/℃ | |
| Selflgnition Temperature | D1929 443℃ | |
| Specific Heat | 0.35 (BTU/1b℉) | |
| Electrical Property | Volume Resistivity | D257 1016ohm-cm |
| Surface Resistivity | D257 1015ohm-cm | |
| Water Absorption | D570 0.3 |
Comprehensive Presentation of Acrylic LGP
