Quick Details
-
Product Weight（kg）:
-
0.876
-
Place of Origin:
-
China
-
Brand Name:
-
Leynew
-
Connection Mode:
-
DMX512
-
IP Rating:
-
Ip20
-
Certification:
-
RoHS
-
Application:
-
Sports Stadiums
-
Supply voltage:
-
DC12V
-
Output:
-
standard DMX512 signal
Quick Details
-
Warranty(Year):
-
2-Year
-
Type:
-
Touch screen
-
Max. Load Power:
-
1W
-
Product Weight（kg）:
-
0.876
-
Place of Origin:
-
China
-
Brand Name:
-
Leynew
-
Connection Mode:
-
DMX512
-
IP Rating:
-
Ip20
-
Certification:
-
RoHS
-
Application:
-
Sports Stadiums
-
Supply voltage:
-
DC12V
-
Output:
-
standard DMX512 signal

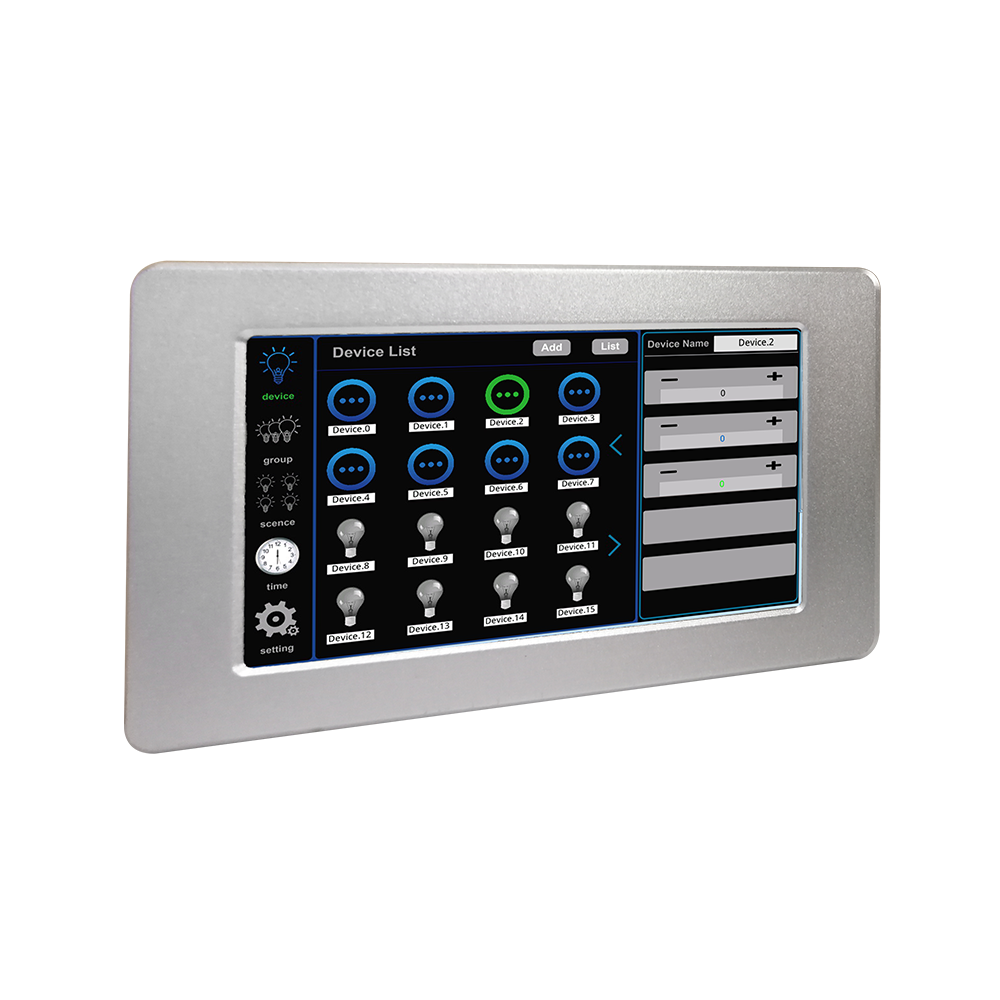

NAME: New DMX Touch screen master controller
Model: DMX501
Summarization
DMX touch screen master controller is a kind of lighting controller which is based on intelligent system. The touch screen adopts the popular capacitive touch technology, It is a control panel using software virtual metallic. This software is easy to use and very simple for user-defined settings. It can realize a variety of lighting control effect quickly and easily.
Technical Parameters
Working temperature : -20~ 7 0℃
Supply voltage : DC 12V,1A
Output : 1 channel DMX signal, can connect up to 64 DMX 1 channel to 5 channels device.
Connect way : DMX signal line
Packing size : 245*165*60mm
External dime n sion : 210mm*127mm*45mm
Net weight : 72 1 g
Gross wet :876 g
Static power consumption : 12W
E xternal Dime n sion
Interface instruction
1. Power input port (DC12V);
2. DMX signal output
F unction Instruction
Typical Application
