Quick Details
-
Brand Name:
-
Safewill
-
Model Number:
-
ES80A-A6
-
Power:
-
110V-230V
-
Material:
-
Metal
-
Product name:
-
Air quality monitoring system
-
Gas Type:
-
O3/SO2/NO2/CO
-
Particulate matter type:
-
PM2.5/PM10/TSP
-
Gas optional:
-
H2S/NH3/TVOC
-
Meteorological parameters:
-
Temperature/Humidit/wind speed&direction/Noise
-
Data transmission:
-
RS485 MODBUS OR 4G LTE
-
Power Supply:
-
AC110-AC230V/Solar energy
-
Installation method:
-
Standing pole mounted
-
Application:
-
Environmental Monitoring
-
MOQ:
-
1pcs
Quick Details
-
Type:
-
Air quality monitoring system
-
Warranty:
-
12 months Under Normal
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Safewill
-
Model Number:
-
ES80A-A6
-
Power:
-
110V-230V
-
Material:
-
Metal
-
Product name:
-
Air quality monitoring system
-
Gas Type:
-
O3/SO2/NO2/CO
-
Particulate matter type:
-
PM2.5/PM10/TSP
-
Gas optional:
-
H2S/NH3/TVOC
-
Meteorological parameters:
-
Temperature/Humidit/wind speed&direction/Noise
-
Data transmission:
-
RS485 MODBUS OR 4G LTE
-
Power Supply:
-
AC110-AC230V/Solar energy
-
Installation method:
-
Standing pole mounted
-
Application:
-
Environmental Monitoring
-
MOQ:
-
1pcs
|
Product Name
|

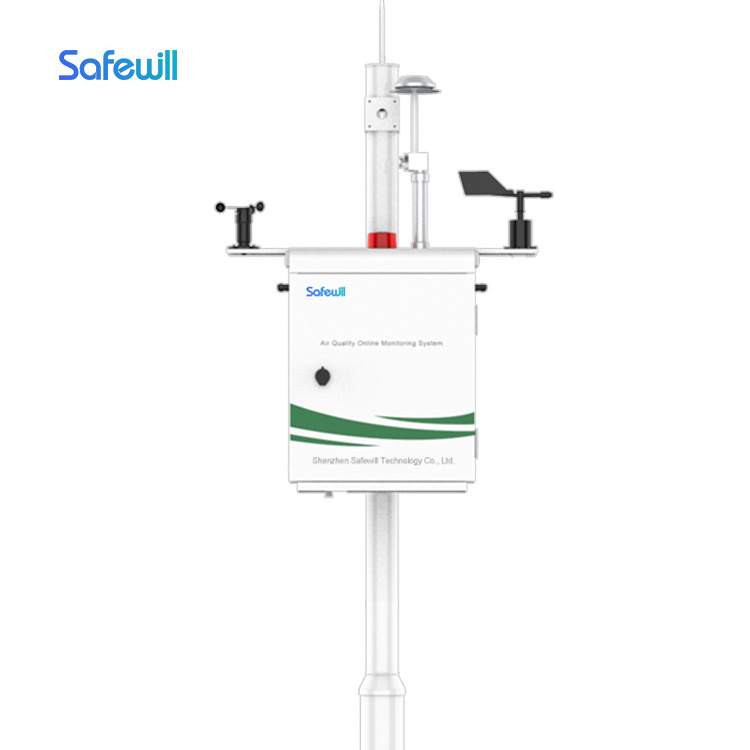

SAFEWILL ES80A-A6 Air Quality Online Monitoring System
|
|||
|
Detection Method
|
Diffusion / Suction
|
|||
|
Data Transmission
|
RS485/RS232 Modbus/4G LTE Optional
|
|||
|
Preheat Time
|
90 Seconds
|
|||
|
Temperature/ Humidity
|
-20℃~55 ℃/10%RH ~95%RH (No Condensation)
|
|||
|
Power Supply/Consumption
|
AC220V/50Hz/Optional Solar Power Supply/80W(MAX)
|
|||
|
Size
|
620*440*160MM
|
|||
|
The Main Material
|
Cold Rolled Steel Plate
|
|||
|
Installation Method
|
Outdoor Column Installation
|
|||
|
Protection Class
|
IP53
|
|||
|
The Standard Gas Configuration
|
||||
|
Gas Type
|
Measuring Range
|
Resolution
|
Indication Error
|
T90
|
|
O3
|
500ppb
|
1ppb
|
≤±10%FS
|
120S
|
|
NO2
|
500ppb
|
1ppb
|
≤±10%FS
|
120S
|
|
SO2
|
500ppb
|
1ppb
|
≤±10%FS
|
120S
|
|
CO
|
50ppm
|
0.1ppm
|
≤±10%FS
|
120S
|
|
Optional Gases
|
||||
|
Gas Type
|
Measuring Range
|
Resolution
|
Indication Error
|
T90
|
|
TVOC
|
10ppm
|
0.01ppm
|
≤±10%FS
|
120S
|
|
H2S
|
20ppm
|
0.1ppm
|
≤±10%FS
|
120S
|
|
NH3
|
20ppm
|
0.1ppm
|
≤±10%FS
|
120S
|
|
Particulate Technical Parameters
|
||||
|
Project
|
Technical Indicators
|
|||
|
Measuring Range
|
PM2.5/10/TSP:(0-2000) μg/m3
|
|||
|
Sampling Cutter
|
Cyclone Physical Cutter
|
|||
|
Sampling Time
|
Adjustable, Default Five Minutes
|
|||
|
Resolution
|
1ug/m3
|
|||
|
Sampling Mode
|
Suction Type
|
|||
|
Air Intake Heating
|
Heating And Dehumidifying According To Air Humidity
|
|||
|
Malfunction Alarm
|
Real-Time Display Of Fault Alarms
|
|||
|
Zero Method
|
Automatic zero calibration
|
|||
|
Meteorological And Other Parameters(Optional)
|
||||
|
Parameters
|
Range
|
Resolution
|
Accuracy
|
|
|
Temperature
|
-30℃--50℃
|
0.1℃
|
±1℃
|
|
|
Humidity
|
0-95%Rh
|
1%Rh
|
±5%Rh
|
|
|
Wind Speed
|
0~60m/s
|
0.1 m/s
|
±1m/s
|
|
|
Wind Direction
|
0-360°
|
1°
|
/
|
|
|
Atmospheric Pressure
|
600—1100hPa
|
1 hPa
|
/
|
|
|
Noise
|
30dB(A)~130dB(A) (A-weighted)
|
/
|
±3dB
|
|
|
Rainfall
|
0~4mm/min
|
0.1mm
|
±0.4mm (≤10mm) ±4%(>10mm)
|
|
|
Illumination
|
0~200,000 Lux
|
/
|
±7% (25℃)
|
|
|
UV Radiation
|
0~400mW/m2
|
1mW/m2
|
±5%
|
|
