Quick Details
-
Controller Type:
-
MPPT, PWM
-
Mounting Type:
-
Roof Mounting,Ground Mounting
-
Certificate:
-
TUV/UL/JET
-
Warranty:
-
25years, 30years
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
xcsolar
-
Model Number:
-
home use
-
Output Voltage (V):
-
110/120/220/230V
-
Output Frequency:
-
50/60HZ
-
Work Time (h):
-
24
-
Product name:
-

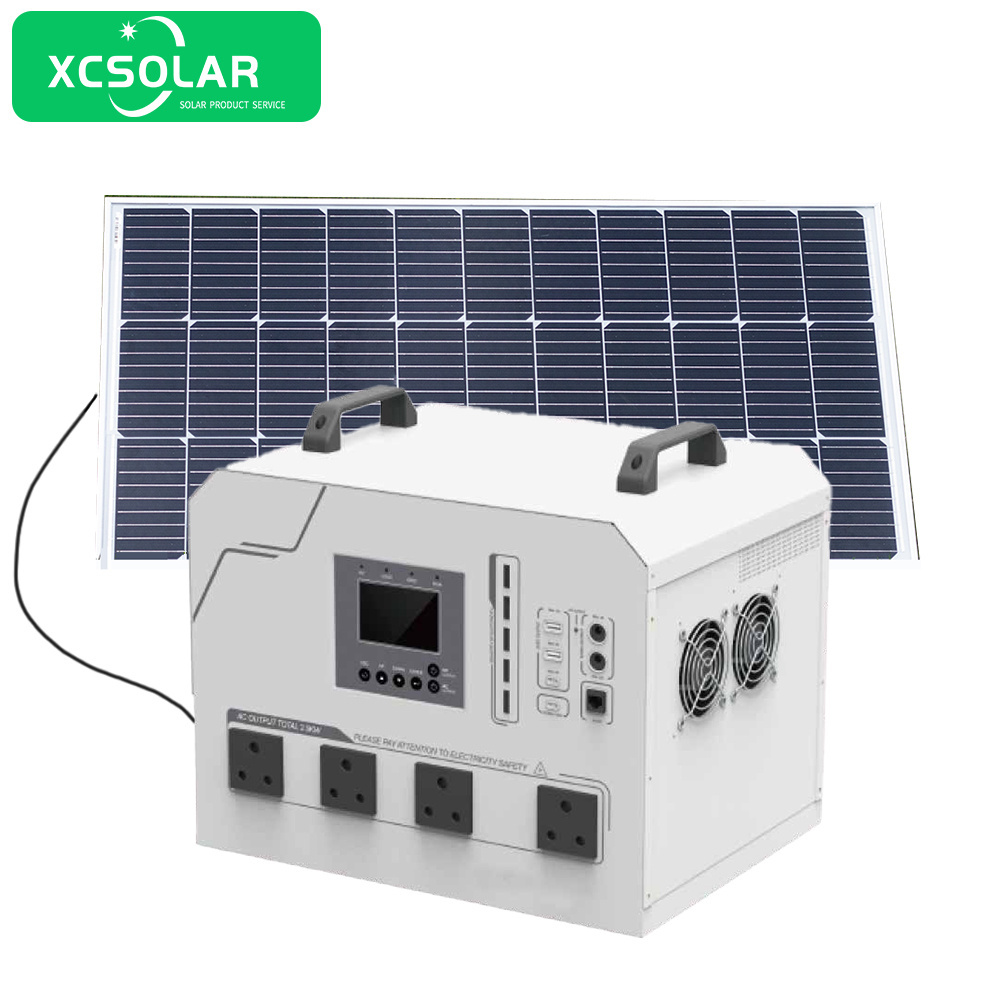

Home Portable Solar Generator
-
Type:
-
Off-grid System AC,On-grid System
-
Solar panel:
-
Mono Solar Panel
-
Phase::
-
Single Phase home solar generator
-
Rated power::
-
000w/1500w/2000w/3000w/4000w/5000w/6000w/
-
Mounting Structure:
-
Gound/Roof Mounting Structure
-
Battery:
-
2/12/48V Gel/agm/li Types
-
Technical Support:
-
Solar System Installation Vedio
-
Protection::
-
Overload,over voltage,short circuit
Quick Details
-
Application:
-
Home/ industrial
-
Solar Panel Type:
-
Monocrystalline Silicon
-
Battery Type:
-
Lead-Acid, Lithium Ion
-
Controller Type:
-
MPPT, PWM
-
Mounting Type:
-
Roof Mounting,Ground Mounting
-
Certificate:
-
TUV/UL/JET
-
Warranty:
-
25years, 30years
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
xcsolar
-
Model Number:
-
home use
-
Output Voltage (V):
-
110/120/220/230V
-
Output Frequency:
-
50/60HZ
-
Work Time (h):
-
24
-
Product name:
-
Home Portable Solar Generator
-
Type:
-
Off-grid System AC,On-grid System
-
Solar panel:
-
Mono Solar Panel
-
Phase::
-
Single Phase home solar generator
-
Rated power::
-
000w/1500w/2000w/3000w/4000w/5000w/6000w/
-
Mounting Structure:
-
Gound/Roof Mounting Structure
-
Battery:
-
2/12/48V Gel/agm/li Types
-
Technical Support:
-
Solar System Installation Vedio
-
Protection::
-
Overload,over voltage,short circuit
|
Max. PV Input Withstand Voltage
|
95V
|
|
|
Solar Controller Type
|
MPPT
|
|
|
MPPT Efficiency
|
>99.5%
|
|
|
MPPT Voltage Range
|
24V-76V
|
|
|
MPPT Ways
|
One way
|
|
|
Max. PV Output Charging Current
|
30A
|
|
|
Battery
|
|
|
|
Battery Type
|
LFP8S
|
|
|
Rated Battery Voltage
|
25.6VDC
|
|
|
Battery Work Voltage Range
|
21.0VDC-30.0VDC
|
|
|
Battery Work Temperature Range
|
Discharging Mode: -20°C ~ 50°C Charging Mode: 0°C ~ 50°C
|
|
|
Rated Battery Capacity
|
60Ah
|
|
|
DC Output
|
|
|
|
DC 12V Port
|
12V2A*2pcs
|
|
|
USB Port
|
5V3A* 2 pcs
|
|
|
TYPE C Port
|
TYPE C-100W* 1 pcs (support PD3.0 and multiple protocols) TYPE C-5V/3A * 1pcs
|
|
|
DC Output Switch
|
Have
|
|
|
Other
|
|
|
|
Work Temperature Range
|
-20°C~50°C (when the environment temperature exceeds 30°C, the charging power and load power will be reduced appropriately;
working of full load is not supported.) |
|
|
Enclosure
|
IP30
|
|
|
Communication Method
|
Bluetooth, RS485 (WiFi optional)
|
|
|
LCD
|
Monochrome LCD, English interface
|
|
|
Warranty
|
Two years
|
|
|
Dimension (Length x Width x Height)
|
385x307x345mm (with floor mats and handles)
|
|
|
Weight
|
24kg
|
|
Our Factory
Product packaging
Certifications
Our Project
FAQ
Q: Can you offer On Grid and Off Grid solar power systems?
A: Yes, we produce On Grid solar power systems, Off Grid solar power systems and also provide Hybrid solar power systems.
Q: What certificate do you offer?
A:
CE, IEC, CEC, ISO, TUV. RoHS
Q: what can you buy from us?
A: Solar Panel,Solar System,Battery,Inverter,
Mobile power station, solar mounting system
Q: What is the mode of transport?
A: International section is generally sea transport, after entry we will use multimodal transport of rail, barge.
Q: what services can we provide?
A: Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese,Spanish,Japanese,German,Russian
Q: How to become your agent?
A: Contact us through Alibaba, we will give you the best price and look forward to your greetings.
