Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TOB
-
Weight (KG):
-
500
-
Voltage:
-
220V±10%/50Hz±10%
-
Dimensions:
-
1500*900*1800mm
-
Usage:
-
Battery Pack
-
Product name:
-
Double Side Welding Machine
-
Maximum number of loaded particles:
-
360PCS(Standard18650batterycell)
-
Operating system:
-
Embedded system + HMI
-
Flat welding speed:
-
0.3-1S 4000-5000 pcs/h
-
Bump welding speed:
-
0.5-1S 3500-4000 pcs/h
-
Suitable battery model:
-
18650/ 21700 /26650/ 32650 and other cylindrical lithium batteries
Quick Details
-
Applicable Industries:
-
Battery Pack
-
Marketing Type:
-
Battery Pack Machine
-
Core Components:
-
Welder
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TOB
-
Weight (KG):
-
500
-
Voltage:
-
220V±10%/50Hz±10%
-
Dimensions:
-
1500*900*1800mm
-
Usage:
-
Battery Pack
-
Product name:
-
Double Side Welding Machine
-
Maximum number of loaded particles:
-
360PCS(Standard18650batterycell)
-
Operating system:
-
Embedded system + HMI
-
Flat welding speed:
-
0.3-1S 4000-5000 pcs/h
-
Bump welding speed:
-
0.5-1S 3500-4000 pcs/h
-
Suitable battery model:
-
18650/ 21700 /26650/ 32650 and other cylindrical lithium batteries
Products Description

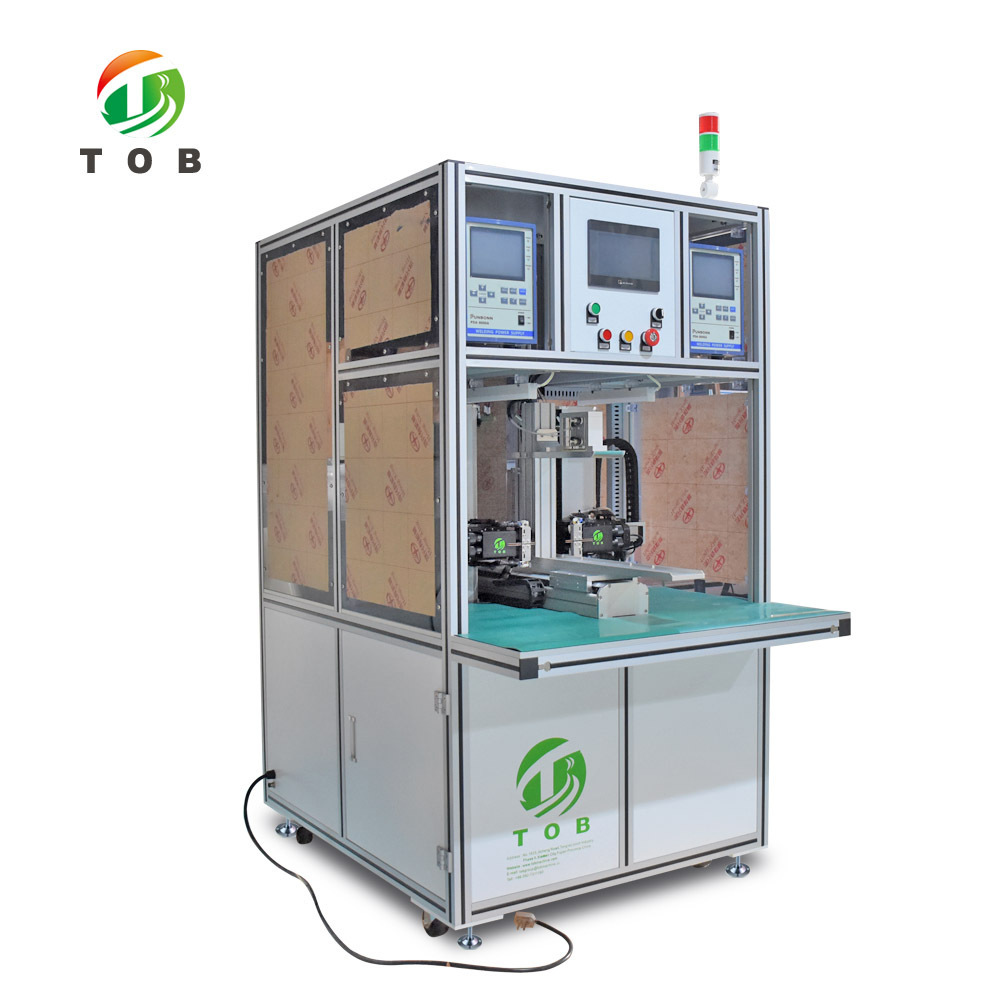

Solid State Battery Automatic Double Side Spot Welding Machine
TOB-DW-8000A double-side automatic spot welding machine supports break point start and is equipped with a transistor 8000A power supply, which can weld pure nickel sheets below 0.25mm and nickel-plated steel below 0.3. Nickel sheets need to be bumped for welding. Double-sided automatic welding, high efficiency. Simple programming, supports any point programming and array programming, graphics import, and can store 99 groups of programming files. Welding needle replacement forecast reminder, the welding head adopts water-cooling circulation to dissipate heat, which can effectively reduce the welding needle loss and improve the welding effect. Self-contained welding current monitoring system, which can monitor welding current, with rosin joint alarm function, can monitor welding in real time.
Working process
The double-sided automatic spot welding machine consists of working power supply, working platform, servo motor, operating system and so on.
Manually put the cell into the fixture, place the nickel sheet; push it into the automation platform, and then set the relevant
parameters, array, etc., the welding work can be realized.
Working process
The double-sided automatic spot welding machine consists of working power supply, working platform, servo motor, operating system and so on.
Manually put the cell into the fixture, place the nickel sheet; push it into the automation platform, and then set the relevant
parameters, array, etc., the welding work can be realized.
Technical specifications
|
Items
|
Parameter
|
|
Power supply
|
220V±10%/50Hz±10%
|
|
Equipment
|
Transistor power supply 8000A
|
|
Dimensions
|
1500mm（L)x900mm（W）x 1800mm（H）
|
|
Maximum number of loaded particles
|
360 PCS（Standard 18650 battery cell）
|
|
Z-axis and Y-axis stroke
|
Z-axis stroke : 350mm Y-axis stroke: 650mm
|
|
Number of file groups that can be stored
|
99 groups
|
|
Operating system
|
Embedded system + HMI
|
|
Transfer method
|
Servo+stepping+imported precision linear guide(optional importedmotor)
|
|
Maximum speed of motor transmission
|
1000mm/s
|
|
Welding speed
|
0.3S; 3500pcs/H~4000pcs/H
|
|
Welding head inlet spring pressure adjustment:
|
1.0-5.0Kg
|
|
Flat welded nickel sheet suitable thickness
|
0.15-0.3mm pure nickel/steel nickel plated
|
|
Bump Welding Nickel Sheet Applicable Thickness
|
0.3 Nickel Plated Steel
|
|
Positive and negative current switching speed/specification
|
Optional
|
|
Flat welding speed
|
0.3-1S 4000-5000 pcs/h
|
|
Bump welding speed
|
0.5-1S 3500-4000 pcs/h
|
|
Suitable battery model
|
18650/ 21700 /26650/ 32650 and other cylindrical lithium batteries
|
