series Optical Receiver is specially designed for the FTTH application of the CATV network. Compact Structure,Good Appearance & Convenient Application.
Even under the bandwidth up to 1000Mhz, it can also provide a Stable Output Level and Excellent Performance Indexes, which has the wide range of optical power working range.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Tuolima
-
Use:
-
FTTH
-
Warranty Time:
-
1 year
-
Product name:
-
Optical Receiver
-
Wavelength:
-
1550/1490/1310mm
-
Power supply:
-
DC 5V / 0.5A
-
RF output port:
-
1 & 2 ports
-
Normal output level:
-
75±2 dBuVc
-
Bandwidth:
-
47~1003 MHz
-
Optical input power:
-
+2~-18dBm
-
Low power consumption:
-
<1.0W
-
Dimension:
-
90x85x25mm
-
Application:
-
HFC&CATV&FTTX
Quick Details
-
Type:
-
Optical Receiver
-
Model Number:
-
TLMOR21039W
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Tuolima
-
Use:
-
FTTH
-
Warranty Time:
-
1 year
-
Product name:
-
Optical Receiver
-
Wavelength:
-
1550/1490/1310mm
-
Power supply:
-
DC 5V / 0.5A
-
RF output port:
-
1 & 2 ports
-
Normal output level:
-
75±2 dBuVc
-
Bandwidth:
-
47~1003 MHz
-
Optical input power:
-
+2~-18dBm
-
Low power consumption:
-
<1.0W
-
Dimension:
-
90x85x25mm
-
Application:
-
HFC&CATV&FTTX
Product Description

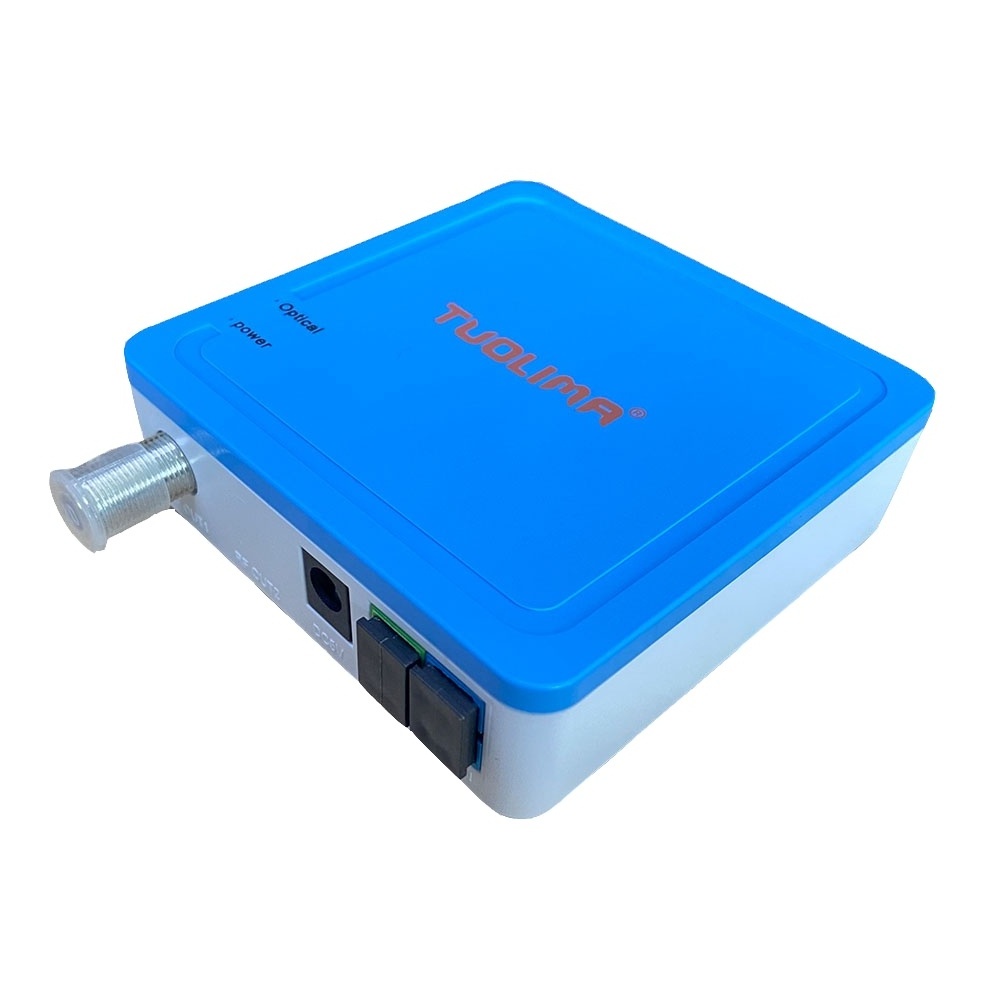

FTTH Optical Receiver With WDM
This series of Optical Receiver use Ultra Low Optical Power Receiving Technology, FWDM Technology, all Gallium Arsenide Amplify, Optical Control AGC function.
The Output Level of RF 2x78dBuv is stable when the optical receiving power is -12 to -2dBm.
Features
Items
|
|
Unit
|
Performance Index
|
|
||
Optical Characteristics |
optical receiving wavelength range
|
nm
|
1545/1565
|
|
||
|
PON port wavelength
|
nm
|
1310/1490
|
|
||
|
mutual isolation
|
dB
|
≥22(1490/1550)
|
|
||
|
response rate
|
A/W
|
≥0.85/≥0.9
|
|
||
|
optical receiving power range
|
dBm
|
-2~-18(suggested-9~-12)
|
|
||
|
optical reflection loss
|
dB
|
≥50
|
|
||
|
fiber optic adapter/connector
|
/
|
SC/APC
|
|
||
RF Characteristics |
bandwidth/unevenness
|
MHz/dB
|
47~1000/≤±1
|
|
||
|
output level
|
dBuv
|
2x78±1(-12~-2dBm)
|
|
||
|
reflection loss
|
dB
|
≥14(characteristic impedance75Ω)
|
|
||
|
RF output port
|
/
|
metric or british system(1-way output)
|
|
||
|
MER(closed equilibrium)
|
dB
|
≥25(64QAM)≥31(256QAM)
|
-12dBm receive, optical link 94 digital channels |
||
|
MER(open equilibrium)
|
dB
|
≥32(64QAM)≥34(256QAM)
|
|
||
|
BER
|
/
|
≤1×10-4
|
measure at least 100bits
|
||
|
CNR/CTB/CSO
|
dB
|
≥44≥58≥58(-9dBm/2x72dBuv时)
|
|
||
Other Index |
Power supply/consumption
|
V/W
|
External AC155~255V→DC5/2
|
|
||
|
working/storage temperature
|
℃
|
-30~55/-40~75
|
|
||
|
working/humidity
|
%
|
5~80(no condensation)
|
|
||
|
structure size
|
mm
|
82×82×25
|
|
Products Display
Application
Product packaging
Ordering Information
Product Name
|
Model
|
Functional Description
|
FTTH optical receiver
(WDM double output)
|
TLMOR21039/2W
|
CATV 1540~1565nm reception,-5~-15dBm/RF 2×72dBuv Constant Output,PON:1490/1310nm;External 90~255V 5V 0.5A Power Adapter
|
|
According to customer requirements
|
1540~1565nm reception,-5~-15dBm/RF 2×72dBuv perhaps -2~-12dBm/RF 2×78dBuv perhaps +1~-9dBm/RF 2×81dBuv,Constant
Output,PON:1490/1310nm;External 90~255V 5V 0.5A Power Adapter,Iron box structure, others above. |
