Quick Details
-
Dimension(L*W*H):
-
(D)2.15m*2.2m
-
Voltage:
-
380V
-
Power:
-
15000-22000
-
Weight (KG):
-
1200
-
Product Name:
-

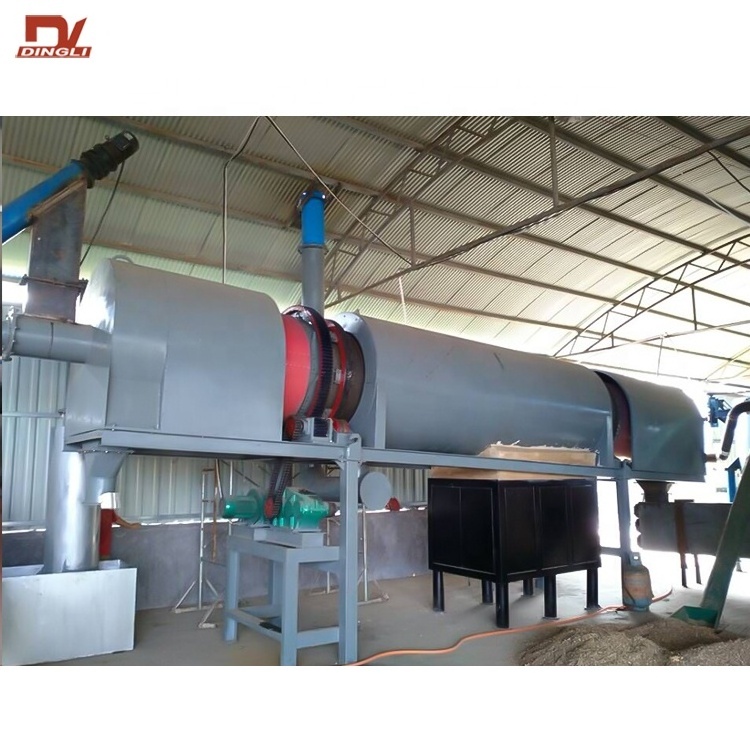

Biochar Charcoal Wood Retort Kiln
-
Color:
-
Green, Silver Or Customized
-
Capacity(kg/h):
-
1000kg/5-8h
-
Host RPM (revolutions per minute):
-
3-5
-
Feeding Way:
-
Automatic frequency conversion feeding
-
Control Cabinet:
-
PLC automatic control cabinet
-
Equipped With:
-
Cooling discharging machine
-
Production Status:
-
With carbonized color display
-
Raw Material:
-
Sawdust, Wood Chip, Coconut Shell, Rice Husk, Cotton Stalk, Straw
-
Usage:
-
Agricultural and forestry biomass charring making
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DINGLI
-
Effective Volume:
-
Customized
-
Dimension(L*W*H):
-
(D)2.15m*2.2m
-
Voltage:
-
380V
-
Power:
-
15000-22000
-
Weight (KG):
-
1200
-
Product Name:
-
Biochar Charcoal Wood Retort Kiln
-
Color:
-
Green, Silver Or Customized
-
Capacity(kg/h):
-
1000kg/5-8h
-
Host RPM (revolutions per minute):
-
3-5
-
Feeding Way:
-
Automatic frequency conversion feeding
-
Control Cabinet:
-
PLC automatic control cabinet
-
Equipped With:
-
Cooling discharging machine
-
Production Status:
-
With carbonized color display
-
Raw Material:
-
Sawdust, Wood Chip, Coconut Shell, Rice Husk, Cotton Stalk, Straw
-
Usage:
-
Agricultural and forestry biomass charring making
Product Introduction
Main Features
1. configuration the early stage of the new type gasifier gasification; 2. configuration of flue gas purification, heat exchange system, cooling system, heat steam into water, flue gas can be converted to gas recycling; 3. configuration frequency conversion feeding machine, automatic feeding, feeding speed is adjustable; 4. configuration rotary carbonation host, meet the production requirements; 5. configuration cooling discharging machine cooling products, output, product; 6. configuration control cabinet, temperature, speed regulation, drum PLC automatic control cabinet, the equipment for carbonized color display, production status should be clear;
Applicable Material
Below is Carbonizing Process
First the biomass material is ignited in the gasifier.
The flue gas produced by burning after spraying, cooling, purification process, it produces the pure combustible gas (carbon monoxide, methane, ethane, etc.).
As the early stage of the carbonization of heat source, through early warming of the carbonizer, to feed the material when the heat reaches the special temperature.
The combustible gas that carbonation process of flue gas by spraying, cooling, purification process into burned secondary. According to this methods of circulation, sufficient to achieve a self-sufficient, then achieve the effect of energy saving.
The flue gas through purification, to reach the environment production and flue gas emissions free. Which is reached to the standards of waste gas emptying.
The temperature of carbonization reach a 600 ℃ to 900 ℃ in the process. According to the characteristics of material, the temperature can be adjusted according to the requirements.
Below is Working Principle
|
Model
|
Diameter (mm)
|
Length(m)
|
Carbon Production(kg)
|
Power(kw)
|
Size(m)
|
Drum Speed(r/min)
|
|
DLTJ1010
|
1000
|
10
|
100-200
|
25
|
11*1.5*2.7
|
2-5
|
|
DLTJ1210
|
1200
|
10
|
200-300
|
30
|
11*1.8*2.8
|
2-5
|
|
DLTJ1410
|
1400
|
10
|
400-500
|
40
|
11*2.0*3.0
|
2-4
|
|
DLTJ1612
|
1600
|
12
|
600-800
|
50
|
13.5*2.2*3.3
|
2-4
|
|
DLTJ1912
|
1900
|
|
900-1100
|
60
|
13.5*2.6*3.5
|
2-3
|
|
DLTJ2212
|
2200
|
|
1200-1500
|
70
|
13.5*3.0*3.7
|
2-3
|
|
DLTJ2512
|
2500
|
|
1600-2000
|
90
|
13.5*3.1*4.0
|
2-3
|
|
DLTJ3012
|
3000
|
|
2200-2600
|
120
|
13.5*3.6*4.2
|
2-3
|
|
DLTJ3612
|
3600
|
|
3000-3800
|
150
|
13.5*4.2*4.5
|
2-3
|
Other Related Technical Parameters
Production in the process of carbonation temperature can reach 500 ℃ to 700 ℃, according to the material
characteristics, temperature can be adjusted according to need.
