Quick Details
-
Mounting Type:
-
straight
-
Description:
-
float type level switch, CLF-04 Float Switch
-
Model Number:
-
CLF-04
-
Type:
-
Reed switch
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RGP
-
Theory:
-
Reed magnetic switch, Reed Float Switch
-
Output:
-
switch output
-
Product name:
-
high level float switch
-
Material:
-
PP Plastic
-
Output Signal:
-
Switching Signal
-
Application:
-
Equipment liquid level control system
-
Installation Way:
-
Vertical
-
Operating Voltage:
-
200VDC(10W)/220VAC/DC(50W)
-
Working Current:
-
0.5A(10W)/1A(50W)
Quick Details
-
Use:
-
Liquid Level Sensor
-
Series:
-
cable float switch
-
Features:
-
reliable and stable
-
Mounting Type:
-
straight
-
Description:
-
float type level switch, CLF-04 Float Switch
-
Model Number:
-
CLF-04
-
Type:
-
Reed switch
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RGP
-
Theory:
-
Reed magnetic switch, Reed Float Switch
-
Output:
-
switch output
-
Product name:
-
high level float switch
-
Material:
-
PP Plastic
-
Output Signal:
-
Switching Signal
-
Application:
-
Equipment liquid level control system
-
Installation Way:
-
Vertical
-
Operating Voltage:
-
200VDC(10W)/220VAC/DC(50W)
-
Working Current:
-
0.5A(10W)/1A(50W)
Product Name

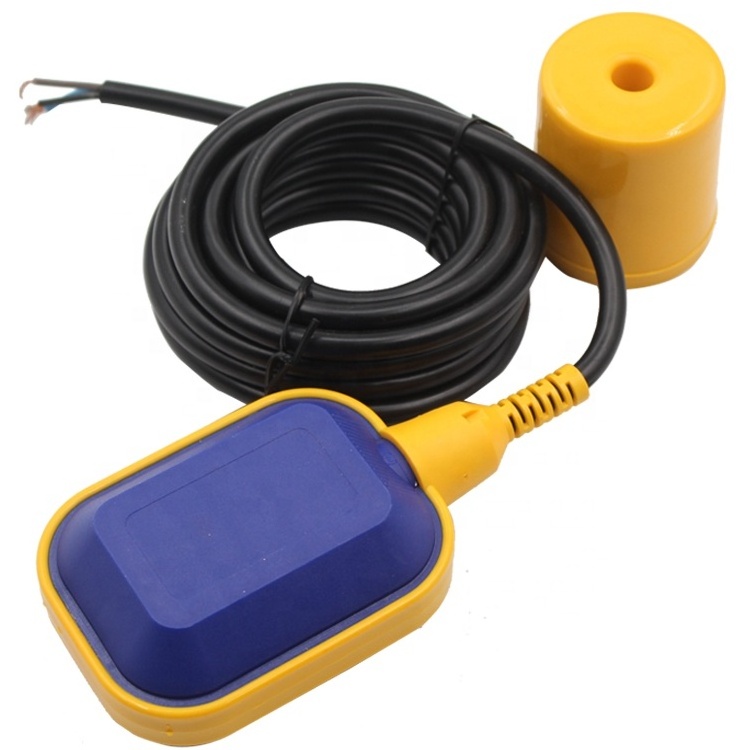

cable float switch for water tank vertical water high level float switch with cable 2M 5M 15M
Product Description
Principle
Simple principle, stable and reliable performance, long working life.
Multi-point and remote control can be realized simply and conveniently according to the needs.
The reed switch and wire are completely isolated from the measured medium, and can be used reliably under high temperature and high pressure.
Customization
A variety of materials: SUS, PP, PVC, PVDF, etc., a variety of installation methods: flange, thread, etc., can meet the different needs of various environments.
Wide range of applications: water treatment, food, medicine, chemical, electronics, shipbuilding, textile, hydraulic and other industries can be applied.
Installation Notes
1. The installation position should be far away from the water inlet, otherwise the switch will cause malfunction due to the fluctuation of the water inlet.
2. The load of the controlled line must match the contact capacity of the float switch.
3. The specific gravity of the liquid to be tested must be greater than that of the float.
4. The action point of the float has been adjusted at the factory according to the customer's order requirements, please do not adjust the position of the float at will.
Instructions
1. When the float switch is used in circuits with inductive loads such as motors, relays, solenoid coils, etc.,
it is recommended to connect protection circuits such as RC (buffer), varistor, diode, etc. in parallel at both ends of the load.
2. When the float switch is used in capacitive loads such as capacitors, incandescent light bulbs, and long cables, a surge current will be generated between the contacts of the switch; flow resistors or surge absorbers, etc.
Notice:
Do not connect the float switch directly to the solenoid valve, motor or solenoid switch
Ordering information
1. From the outer hexagonal plane to the bottom of the float switch is the total length of the switch.
2. When measuring the distance between the two circlips and the size of the floating ball, if there are multiple floating balls, the distance between the floating ball and the floating ball should be measured.
3. According to the wiring method and the need to control the water level, the number of outgoing wires, the length of the wire, the material of the wire, the position of the floating ball on and off, the required voltage and current, whether the electric shock form is normally open or normally closed, the temperature range, etc. should be marked.
Details Images
Specification
|
Item
|
Value
|
|
Model Number
|
1080-P2
|
|
Type
|
Reed switch
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
RGP
|
|
Usage
|
Liquid Level Sensor
|
|
Theory
|
Reed magnetic switch
|
|
Output
|
Switch output
|
|
Description
|
1080-P2 Float Switch
|
|
Material
|
PP Plastic
|
|
Output signal
|
Switching Signal
|
|
Theory
|
Reed Switch
|
|
Application
|
Equipment liquid level control system
|
Packing & Delivery
pp bag and carton for Flow Switch
