- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Changde
-
Model Number:
-
LXSD-15S~25S
-
Name:
-
RS485 flow meter
-
Material:
-
Cast iron
-
Type name:
-
Photoelectric direct reading remote reading water meter
-
Certificate:
-
ISO4064 ISO9001:2015
-
warranty:
-
1 year
-
Installation:
-
Horizontal
-
Water temperature:
-
≤30℃
-
Working pressure:
-
≤1MPa
-
Normal Size:
-
15mm~32mm
Quick Details
-
Warranty:
-
1 year
-
Type:
-
Multi-jet meters
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Changde
-
Model Number:
-
LXSD-15S~25S
-
Name:
-
RS485 flow meter
-
Material:
-
Cast iron
-
Type name:
-
Photoelectric direct reading remote reading water meter
-
Certificate:
-
ISO4064 ISO9001:2015
-
warranty:
-
1 year
-
Installation:
-
Horizontal
-
Water temperature:
-
≤30℃
-
Working pressure:
-
≤1MPa
-
Normal Size:
-
15mm~32mm

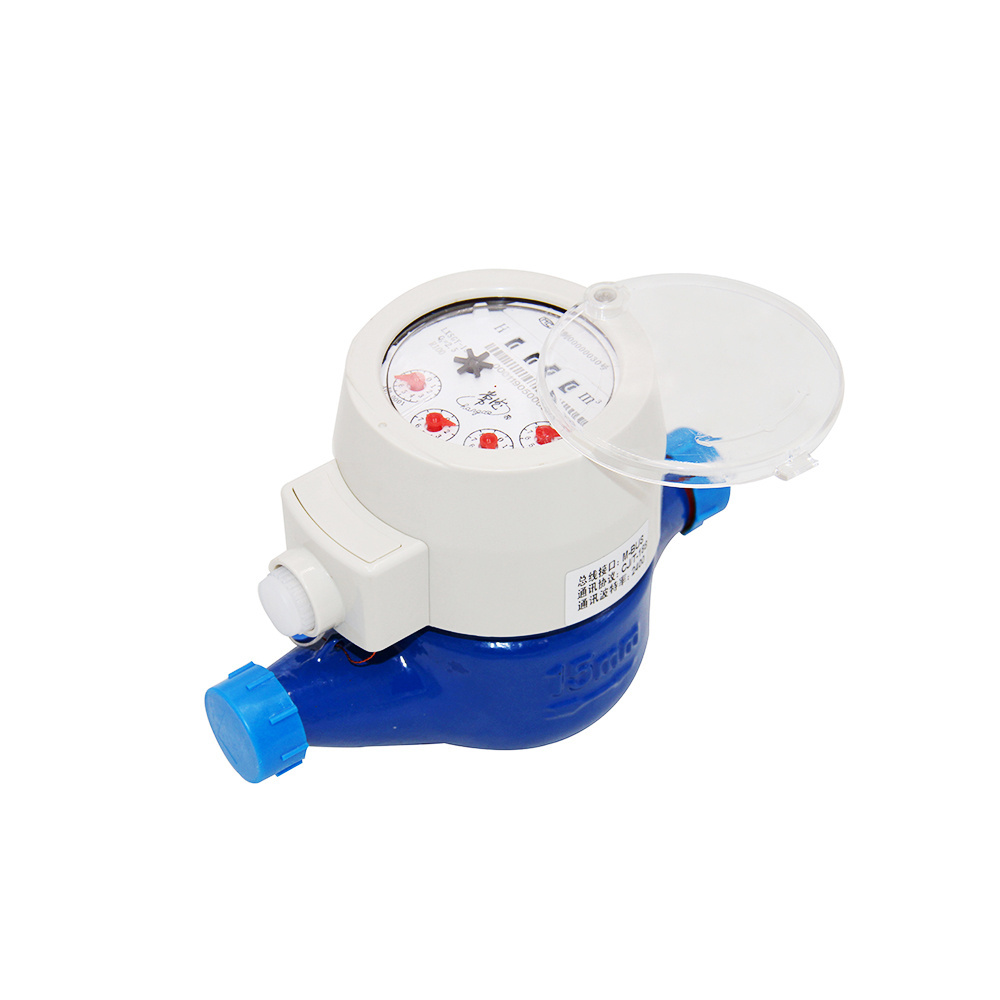

RS485 flow meter modbus remote controls smart water flow meter
|
Name: |
RS485 flow meter |
|
Material: |
brass |
|
Type name |
Photoelectric direct reading remote reading water meter |
|
Certificate |
ISO4064 ISO9001:2008 |
|
warranty |
1 year |
|
Installation |
Horizontal |
|
Water temperature |
≤30 ℃ |
|
Working pressure |
≤1MPa |
|
Normal Size |
15mm~25mm |
|
Model |
DN |
Length |
W idth |
Height |
Connecting thread |
||
|
L |
L1 |
B |
H |
d |
D |
||
|
LXSGY 15-25 |
15 |
258 |
165 |
85 |
1 30 |
R1/2 |
G3/4B |
|
20 |
299 |
195 |
85 |
1 30 |
R3/4 |
G1B |
|
|
25 |
345 |
225 |
95 |
1 37 |
R1 |
G11/4B |
|
|
Model |
DN |
Measure range Q3/Q1 Q2/Q1 |
Overload Flow rate (Q4) |
Normal flow rate (Q3) |
Transitional flow rate (Q2) |
Min. Flow rate (Q1) |
|
m3/h |
||||||
|
LXSGY 15-25 |
15 |
80 /1.6 |
3.125 |
2.5 |
0.0 5 |
0.0 315 |
|
20 |
80 /1.6 |
5 |
4 |
0.0 8 |
0.0 5 |
|
|
25 |
80 /1.6 |
7.875 |
6.3 |
0. 13 |
0.0 8 |
|
