Quick Details
-
Brand Name:
-
customize
-
Use:
-
FTTH FTTB FTTX
-
Warranty Time:
-
3 year
-
Product name:
-
fiber patch panel
-
Application:
-
Telecom Comunication
-
Fiber Type:
-
SM/MM/OM3
-
Color:
-
Required
-
Material:
-
ABS/PC
-
No. of Fiber:
-
12, 24, 36
-
Wavelength:
-
1310/1550nm
-
Air pressure:
-
70~106Kpa
-
Relative humidity:
-
≤85%(+30℃)
-
Installation method:
-
Wall mounted
Quick Details
-
Type:
-
Fiber optic patch panel
-
Model Number:
-
fiber patch panel
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
customize
-
Use:
-
FTTH FTTB FTTX
-
Warranty Time:
-
3 year
-
Product name:
-
fiber patch panel
-
Application:
-
Telecom Comunication
-
Fiber Type:
-
SM/MM/OM3
-
Color:
-
Required
-
Material:
-
ABS/PC
-
No. of Fiber:
-
12, 24, 36
-
Wavelength:
-
1310/1550nm
-
Air pressure:
-
70~106Kpa
-
Relative humidity:
-
≤85%(+30℃)
-
Installation method:
-
Wall mounted
Description
Fiber optic patch panel ,Fiber optic distribution frame, fiber optic distribution Box, ODF ,fiber optic Indoor wall box, Fiber
optic Outdoor wall box,
Optical Terminal Box (OTB) is mainly used for connecting the indoor/outdoor optical cables, optical patch cords and optical pigtails.
Types

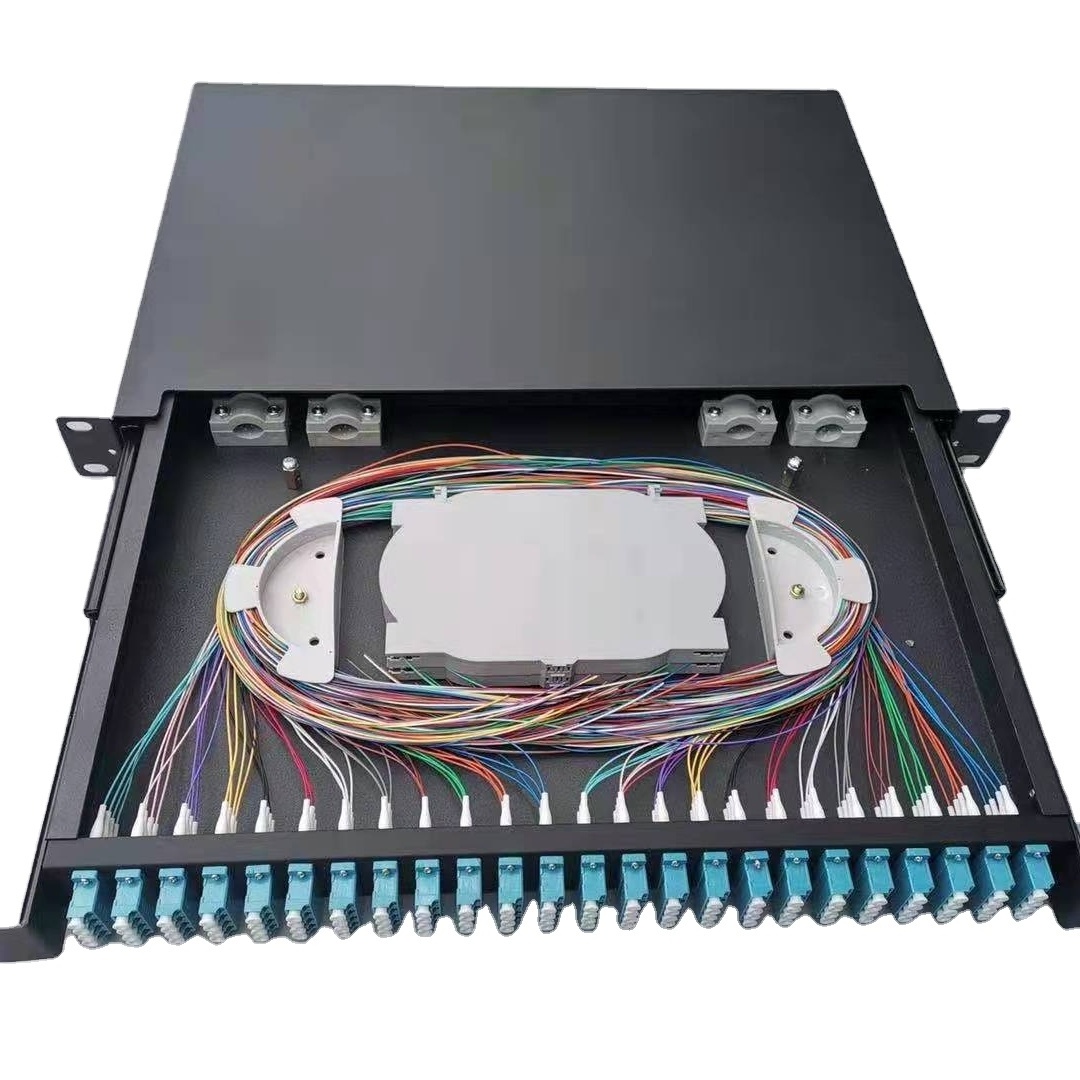

Rack-mount fixed type
Rack-mount drawer type
Rack mount ODF
indoor wall-mount type
Outdoor waterproof wall-mount type
Classification
Rack Mount, Wall Mount. Suitable for FC adapter,ST adapter,SC adapter, LC adapter etc.
capacity: 12,24,32,48,64,72,96 splices
19 inches; 1U for 12 splices, 24 splices,2U installation for 32 splices, 48 splices, and 3U for 64, 72 & 96 splices.
Adapters installed: FC adapter ,ST adapter,SC adapter, LC adapter etc
Suitable for ribbon and bunchy fiber cable
Features and advantages
All components of the box should be made of materials which are of excellent anti-corrosion performance, if not, then it should be static plastic sprayed; the physical and chemical capabilities of the material should be stable and should be compatible.
The melting temperature for the material used for the heat shrinkable protective sleeves and the stuffing should be no less than 120°C, the intenerate temperature should be higher than 90°C, and could be used under -25 - 40°C;
4.2 All material should be innocuous, none-corrosion, no side effects to human being or other equipments.
Features and advantages
Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation.
The box are Rack Mounted, which is convenient to install and dismantle;
The splice tray could be piled one upon another, flexible to turn;
The curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray;
The box is of unique structure, reasonable layout, and has adequate room for operation;
Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly;
The indoor type is of excellent seal performance, which could prevent water from entering effectively;
Fiber optic patch panel ,Fiber optic distribution frame, fiber optic distribution Box, ODF ,fiber optic Indoor wall box, Fiber
optic Outdoor wall box,
Optical Terminal Box (OTB) is mainly used for connecting the indoor/outdoor optical cables, optical patch cords and optical pigtails.
Types
Rack-mount fixed type
Rack-mount drawer type
Rack mount ODF
indoor wall-mount type
Outdoor waterproof wall-mount type
Classification
Rack Mount, Wall Mount. Suitable for FC adapter,ST adapter,SC adapter, LC adapter etc.
capacity: 12,24,32,48,64,72,96 splices
19 inches; 1U for 12 splices, 24 splices,2U installation for 32 splices, 48 splices, and 3U for 64, 72 & 96 splices.
Adapters installed: FC adapter ,ST adapter,SC adapter, LC adapter etc
Suitable for ribbon and bunchy fiber cable
Features and advantages
All components of the box should be made of materials which are of excellent anti-corrosion performance, if not, then it should be static plastic sprayed; the physical and chemical capabilities of the material should be stable and should be compatible.
The melting temperature for the material used for the heat shrinkable protective sleeves and the stuffing should be no less than 120°C, the intenerate temperature should be higher than 90°C, and could be used under -25 - 40°C;
4.2 All material should be innocuous, none-corrosion, no side effects to human being or other equipments.
Features and advantages
Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation.
The box are Rack Mounted, which is convenient to install and dismantle;
The splice tray could be piled one upon another, flexible to turn;
The curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray;
The box is of unique structure, reasonable layout, and has adequate room for operation;
Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly;
The indoor type is of excellent seal performance, which could prevent water from entering effectively;
Specification
|
Fiber Port
|
12
|
24
|
36
|
48
|
72
|
96
|
144
|
||||||
|
Material
|
Cold-Rolled Steel
|
|
|
|
|
|
|
||||||
|
Thickness
|
1.0mm
|
|
|
|
|
|
|
||||||
|
Dimention
|
1U 19'
|
|
|
|
2U 19'
|
|
3U 10'
|
||||||
|
Main Components
|
Splice Tray, Pigtail, Adapter, Fiber Clips, etc.
|
|
|
|
|
|
|
||||||
|
Pigtail type
|
SC, LC, FC, ST
|
|
|
|
|
|
|
||||||
|
Adapter Type
|
SC, LC, FC, ST
|
|
|
|
|
|
|
||||||
