Quick Details
-
Model Number:
-
TXI002
-
Place of Origin:
-
Guangdong, China
-
Device Type:
-
Industrial ethernet POE switch
-
Dimensions (W x D x H):
-
141*98*42mm
-
Warranty:
-
3 Years
-
Power Input:
-
DC48V-54V
-
Power Consumption:
-
Max1.5W
-
Chipset:
-
IP178GHI+IP804AR
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Brand Name:
-
DIEWU
-
Model Number:
-
TXI002
-
Place of Origin:
-
Guangdong, China
-
Device Type:
-
Industrial ethernet POE switch
-
Dimensions (W x D x H):
-
141*98*42mm
-
Warranty:
-
3 Years
-
Power Input:
-
DC48V-54V
-
Power Consumption:
-
Max1.5W
-
Chipset:
-
IP178GHI+IP804AR

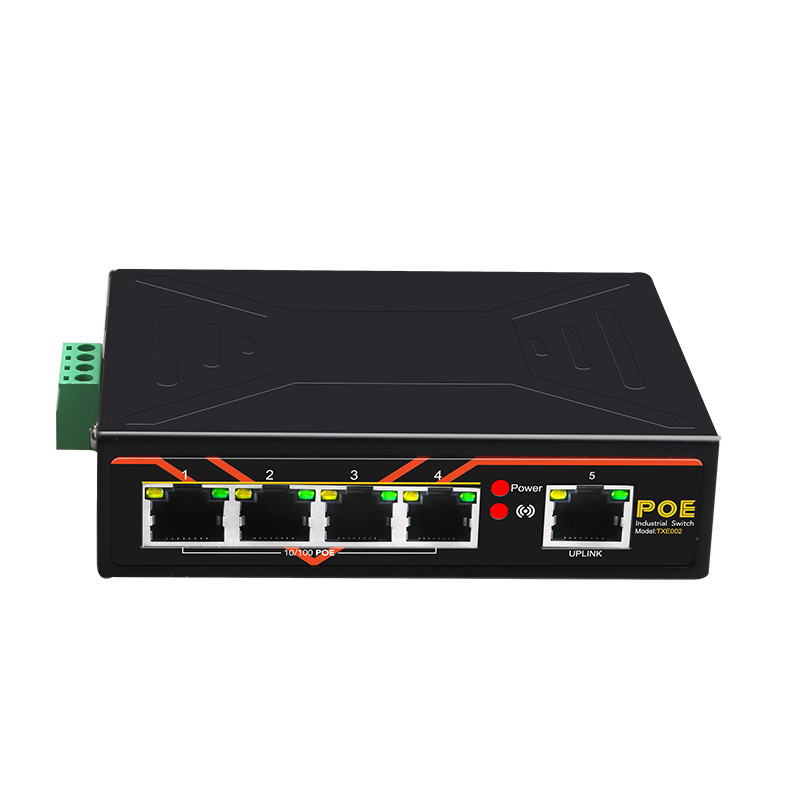

TXI002 is 5 port PoE switch , it perfect for IP cameras, VoIP phones, wireless access points and PoE compatible devices . It provides 5 10/100Mbps auto-negotiation RJ45 ports and 4 ports with POE function (Port 1 - 4 ), the POE ports support full POE standard: IEEE802.3af and IEEE802.3at. it can extend the transport distance to 2 0 0M by the 10M mode.
Product specification
|
Model number |
TXI 002 |
|
Chipset |
IP175 GHI+IP804A |
|
Port number |
1 port uplink and 4port POE |
|
Standard |
IEEE 802.3 , IEEE 802.3u , IEEE 802.3x , IEEE 802.3az , IEEE 802.3af , IEEE 802.3a t |
|
Network media |
10Base-T,cat3 or above UTP,10 0 Base-Tx,cat5 UTP |
|
Data rate |
10/100M |
|
Forwarding rate |
10 Mbps / 14,880 pps , 100 Mbps / 148,800 pps |
|
LED Indicator |
10/100Mbps(Link/Act , speed ),Power , POE,10M Indicator |
|
Dimension |
118*80*30 mm |
|
Power Input |
DC 48 V -54V |
|
Power Consumption |
Max1.5W |
|
Environment |
Operating Temperature: -4 0 ℃ - 85 ℃ |
|
Relative Humidity: 10%-90%(non-condensing) |
|
|
Storage Temperature: -40 ℃ - 85 ℃ |
|
|
Relative Humidity: 5%-90%(non-condensing) |
|
|
Other function |
10M switch |
LED State
|
Power |
Red |
ON |
|
Link/Act |
Green |
Flash |
|
POE |
Orange |
ON |
|
enhance |
Red |
ON |
