Quick Details
-
Weight:
-
30kg
-
Size:
-
900mm, Custom Made
-
Power:
-
0.5~5.5
-
Weight (KG):
-
15 kg
-
Product name:
-

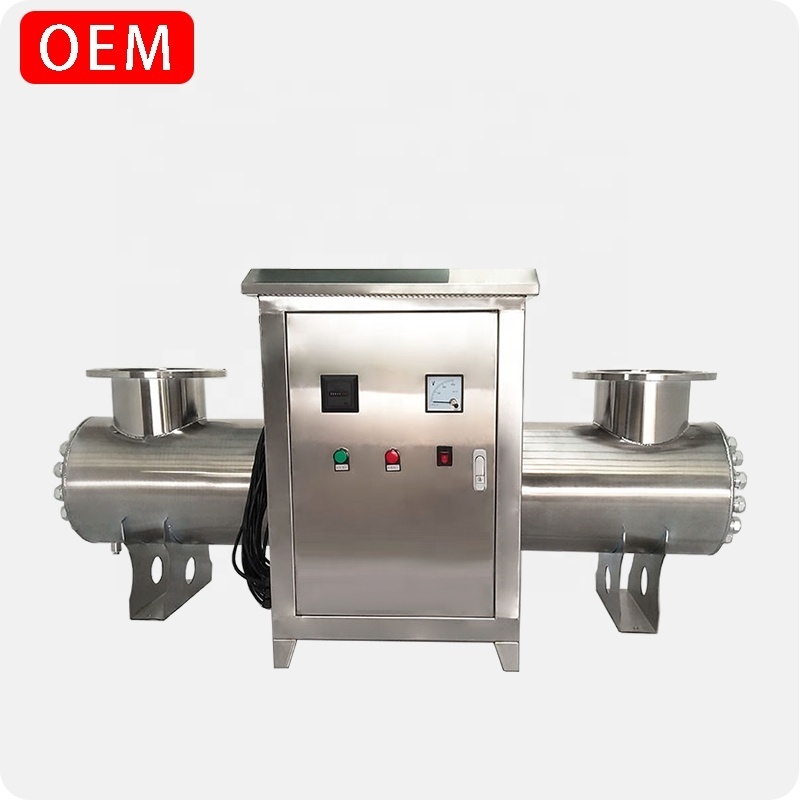

Uv Water Sterilizer
-
Function:
-
Remove Bacteria
-
Processing:
-
Industry Wastewater
-
Key words:
-
UV Open-channel Sterilizer
-
Product Keywords:
-
Uv Water Purifier Machine Ro
-
Product Type:
-
Water Disinfection Units
-
Other name:
-
UV Disinfection
-
Packing:
-
Standard Exportation Package
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
OEM
-
Material:
-
Wooden package with film, Stainless Steel 304
-
Weight:
-
30kg
-
Size:
-
900mm, Custom Made
-
Power:
-
0.5~5.5
-
Weight (KG):
-
15 kg
-
Product name:
-
Uv Water Sterilizer
-
Function:
-
Remove Bacteria
-
Processing:
-
Industry Wastewater
-
Key words:
-
UV Open-channel Sterilizer
-
Product Keywords:
-
Uv Water Purifier Machine Ro
-
Product Type:
-
Water Disinfection Units
-
Other name:
-
UV Disinfection
-
Packing:
-
Standard Exportation Package
Products Description
Product Paramenters
|
Specifications
|
Number of lamp tubes
|
Amount of treated water
|
Total power
|
Equipment length
|
Interface Size
|
Material
|
|||||
|
UVC80-1
|
1
|
3-5（T/h）
|
80W
|
920mm
|
½、¾、1、1¼、1½、2、2½、DN15、DN20、DN25、DN32、DN40、DN50、DN65
|
304/316/OEM
|
|||||
|
UVC80-2
|
2
|
10-15（T/h）
|
160W
|
920mm
|
DN25/DN32/DN40/DN50/DN65/DN80
|
304/316/OEM
|
|||||
|
UVC80-3
|
3
|
20-22（T/h）
|
240W
|
920mm
|
DN40/DN50/DN65/DN80/DN100
|
304/316/OEM
|
|||||
|
UVC80-4
|
4
|
25-30（T/h）
|
320W
|
920mm
|
DN40/DN50/DN65/DN80/DN100
|
304/316/OEM
|
|||||
|
UVC80-5
|
5
|
35-37（T/h）
|
400W
|
920mm
|
DN50/DN65/DN80/DN100/DN125
|
304/316/OEM
|
|||||
|
UVC80-6
|
6
|
40-45（T/h）
|
480W
|
920mm
|
DN65/DN80/DN100/DN125/DN150
|
304/316/OEM
|
|||||
|
UVC80-7
|
7
|
50-52（T/h）
|
560W
|
920mm
|
DN65/DN80/DN100/DN125/DN150
|
304/316/OEM
|
|||||
|
UVC80-8
|
8
|
55-60（T/h）
|
640W
|
920mm
|
DN65/DN80/DN100/DN125/DN150
|
304/316/OEM
|
|||||
|
UVC80-9
|
9
|
65-67（T/h）
|
720W
|
920mm
|
DN80/DN100/DN125/DN150/DN200
|
304/316/OEM
|
|||||
|
UVC80-10
|
10
|
70-75（T/h）
|
800W
|
920mm
|
DN80/DN100/DN125/DN150/DN200
|
304/316/OEM
|
|||||
|
UVC80-11
|
11
|
80-85（T/h）
|
880W
|
920mm
|
DN80/DN100/DN125/DN150/DN200
|
304/316/OEM
|
|||||
|
UVC80-12
|
12
|
85-90（T/h）
|
960W
|
920mm
|
DN80/DN100/DN125/DN150/DN200
|
304/316/OEM
|
|||||
|
UVC80-13
|
13
|
90-95（T/h）
|
1040W
|
920mm
|
DN80/DN100/DN125/DN150/DN200
|
304/316/OEM
|
|||||
|
UVC80-14
|
14
|
95-100（T/h）
|
1120W
|
920mm
|
DN80/DN100/DN125/DN150/DN200
|
304/316/OEM
|
|||||
|
UVC120-1
|
1
|
10（T/h）
|
120W
|
1200mm
|
DN20/DN25/DN32/DN40/DN50/DN65
|
304/316/OEM
|
|||||
|
UVC120-2
|
2
|
20（T/h）
|
240W
|
1200mm
|
DN25/DN32/DN40/DN50/DN65/DN80
|
304/316/OEM
|
|||||
|
UVC120-3
|
3
|
35-40（T/h）
|
360W
|
1200mm
|
DN40/DN50/DN65/DN80/DN100
|
304/316/OEM
|
|||||
|
UVC120-4
|
4
|
40-45（T/h）
|
480W
|
1200mm
|
DN40/DN50/DN65/DN80/DN100
|
304/316/OEM
|
|||||
|
UVC120-5
|
5
|
50-55（T/h）
|
600W
|
1200mm
|
DN50/DN65/DN80/DN100/DN125
|
304/316/OEM
|
|||||
|
UVC120-6
|
6
|
60-70（T/h）
|
720W
|
1200mm
|
DN65/DN80/DN100/DN125/DN150
|
304/316/OEM
|
|||||
|
UVC120-7
|
7
|
80-85（T/h）
|
840W
|
1200mm
|
DN65/DN80/DN100/DN125/DN150
|
304/316/OEM
|
|||||
|
UVC120-8
|
8
|
90-95（T/h）
|
960W
|
1200mm
|
DN65/DN80/DN100/DN125/DN150
|
304/316/OEM
|
|||||
|
UVC120-9
|
9
|
100-105（T/h）
|
1080W
|
1200mm
|
DN80/DN100/DN125/DN150/DN200
|
304/316/OEM
|
|||||
|
UVC120-10
|
10
|
110-120（T/h）
|
1200W
|
1200mm
|
DN80/DN100/DN125/DN150/DN200
|
304/316/OEM
|
|||||
|
UVC120-11
|
11
|
130-135（T/h）
|
1320W
|
1200mm
|
DN80/DN100/DN125/DN150/DN200
|
304/316/OEM
|
|||||
|
UVC120-12
|
12
|
150-155（T/h）
|
1440W
|
1200mm
|
DN80/DN100/DN125/DN150/DN200
|
304/316/OEM
|
|||||
|
UVC150-1
|
1
|
15-20（T/h）
|
150W
|
1600mm
|
DN25/DN32/DN40/DN50/DN65
|
304/316/OEM
|
|||||
|
UVC150-2
|
2
|
25-30（T/h）
|
300W
|
1600mm
|
DN25/DN32/DN40/DN50/DN65/DN80
|
304/316/OEM
|
|||||
|
UVC150-3
|
3
|
40-45（T/h）
|
450W
|
1600mm
|
DN40/DN50/DN65/DN80/DN100
|
304/316/OEM
|
|||||
|
UVC150-4
|
4
|
55-60（T/h）
|
600W
|
1600mm
|
DN50/DN65/DN80/DN100/DN125
|
304/316/OEM
|
|||||
|
UVC150-5
|
5
|
70-75（T/h）
|
750W
|
1600mm
|
DN50/DN65/DN80/DN100/DN125
|
304/316/OEM
|
|||||
|
UVC150-6
|
6
|
85-90（T/h）
|
900W
|
1600mm
|
DN65/DN80/DN100/DN125/DN150
|
304/316/OEM
|
|||||
|
UVC150-7
|
7
|
100-105（T/h）
|
1050W
|
1600mm
|
DN65/DN80/DN100/DN125/DN150
|
304/316/OEM
|
|||||
|
UVC150-8
|
8
|
115-120（T/h）
|
1200W
|
1600mm
|
DN65/DN80/DN100/DN125/DN150
|
304/316/OEM
|
|||||
|
UVC320-1
|
1
|
30-35（T/h）
|
320W
|
1600mm
|
DN25/DN32/DN40/DN50/DN65/DN80
|
304/316/OEM
|
|||||
|
UVC320-2
|
2
|
60-65（T/h）
|
640W
|
1600mm
|
DN40/DN50/DN65/DN80/DN100
|
304/316/OEM
|
|||||
|
UVC320-3
|
3
|
90-95（T/h）
|
960W
|
1600mm
|
DN50/DN65/DN80/DN100/DN125
|
304/316/OEM
|
|||||
|
UVC320-4
|
4
|
120-125（T/h）
|
1280W
|
1600mm
|
DN50/DN65/DN80/DN100/DN125
|
304/316/OEM
|
|||||
|
UVC320-5
|
5
|
155-160（T/h）
|
1600W
|
1600mm
|
DN65/DN80/DN100/DN125/DN150
|
304/316/OEM
|
|||||
|
UVC320-6
|
6
|
190-195（T/h）
|
1920W
|
1600mm
|
DN65/DN80/DN100/DN125/DN150
|
304/316/OEM
|
|||||
|
More Specifications
|
Contact us and give you the lowest price.
|
|
|
|
|
|
|||||
Manufacturing Technique
We inherit the essence of water treatment sterilization, carrying the practical value and aesthetic value of the mainstream social sterilization equipment, with advanced technology and excellent quality as the background, to provide customers with scientific design, strict quality control, professional installation and debugging and meticulous and thoughtful after-sales service.
