Quick Details
-
Range of Spindle Speed(r.p.m):
-
50 - 2500 r.p.m
-
Width of bed (mm):
-
100
-
Max. Turned Length (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
0.75
-
Year:
-
2023
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WELLDE
-
Model Number:
-
WM210-800
-
Voltage:
-
110V,220V or customized
-
Dimension(L*W*H):
-
1200*420*450MM
-
Weight (KG):
-
80 KG
-
Marketing Type:
-
Hot Product
Quick Details
-
Max. Length of Workpiece (mm):
-
400
-
Machining Capacity:
-
Light Duty
-
Spindle Bore(mm):
-
38
-
Range of Spindle Speed(r.p.m):
-
50 - 2500 r.p.m
-
Width of bed (mm):
-
100
-
Max. Turned Length (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
0.75
-
Year:
-
2023
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WELLDE
-
Model Number:
-
WM210-800
-
Voltage:
-
110V,220V or customized
-
Dimension(L*W*H):
-
1200*420*450MM
-
Weight (KG):
-
80 KG
-
Marketing Type:
-
Hot Product
Products Description

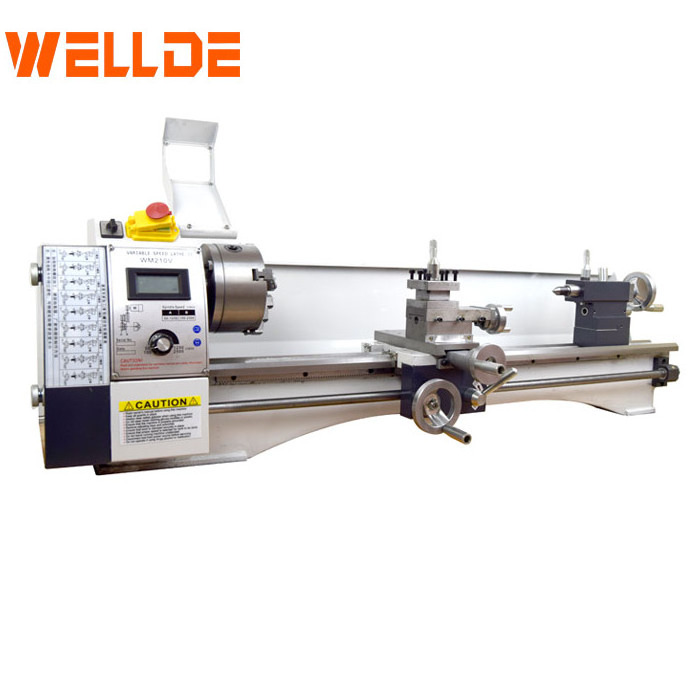

high-accuracy 800mm 210 Double Chuck Mini Manual Metal Lathe Machine Pool Cue Repairing Lathe With 900w Brushless Motor
Specification
|
Model
|
WM210V
|
|
Swing Over Bed
|
210mm
|
|
Swing Over Cross Slide
|
140mm
|
|
Distance Between Centers
|
400/800mm
|
|
Width Of Bed
|
100mm
|
|
Spindle Bore
|
38mm
|
|
Spindle Taper
|
MT5
|
|
Number Of Spindle Speed
|
Varible
|
|
Range Of Spindle Speed
|
50-2500 rpm
|
|
Number Of Metric Threads
|
9
|
|
Range Of Metric Threads
|
0.5-3mm
|
|
Number Of Imperial Threads
|
10
|
|
Range Of Imperial Threads
|
10-44 T.P.I
|
|
Range of longitudinal Feed
|
0.08-0.19mm/r
|
|
Tool Post Type
|
4
|
|
Max. Compoud Slide Travel
|
55mm
|
|
Max. Carriage Slide Travel
|
75mm
|
|
Max. Carriage Travel
|
376/776mm
|
|
Tailstock Travel
|
60mm
|
|
Tailstock taper
|
MT2
|
|
Main Motor
|
750W
|
|
Weight
|
80kgs
|
