Quick Details
-
Model Number:
-
JLC210023A
-
certificate:
-
CE, ISO9001
-
Application:
-
gas cooker, gas oven, gas stove, gas heater, gas grill
-
Applicable:
-
Gas NG/LPG/propanetane
-
Material:
-
Cotton-covered wire copper
-
ROHS:
-
Environmental copper,For carbon deposition prevention
-
Customization:
-
Support
-
Sample:
-
Free
-
Inspection:
-
Laboratory
-
Heating characteristic:
-
≥12mV (within 20s at 650℃)
-
Range of length:
-
150mm(5.9inch)~ 1800mm(71inch)
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JIALI
-
Model Number:
-
JLC210023A
-
certificate:
-
CE, ISO9001
-
Application:
-
gas cooker, gas oven, gas stove, gas heater, gas grill
-
Applicable:
-
Gas NG/LPG/propanetane
-
Material:
-
Cotton-covered wire copper
-
ROHS:
-
Environmental copper,For carbon deposition prevention
-
Customization:
-
Support
-
Sample:
-
Free
-
Inspection:
-
Laboratory
-
Heating characteristic:
-
≥12mV (within 20s at 650℃)
-
Range of length:
-
150mm(5.9inch)~ 1800mm(71inch)
Specification
Description:

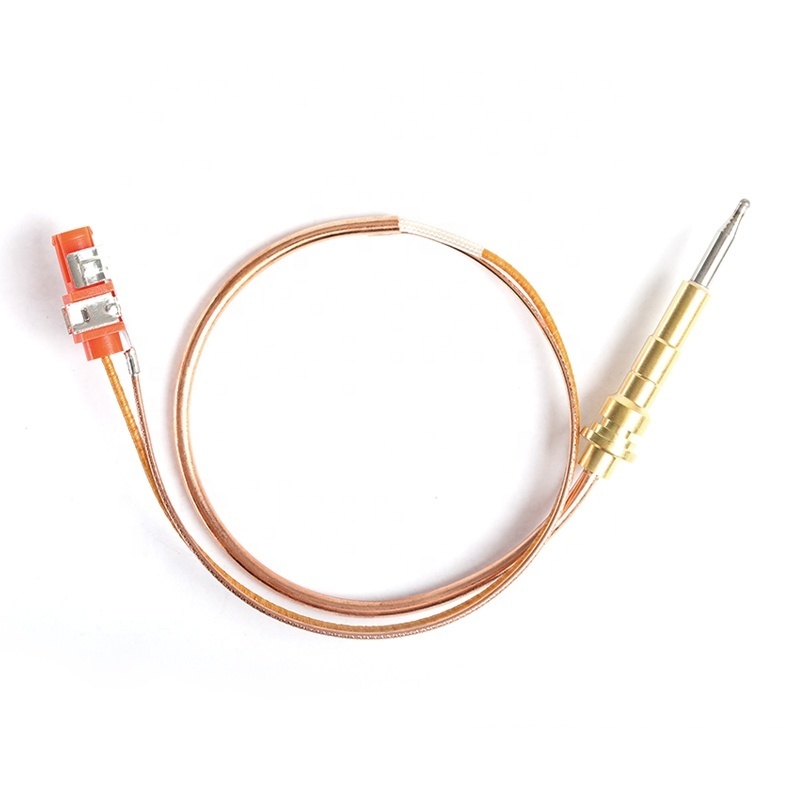

Thermocouple is a part that is working from thermo energy converse into electrical energy. It mainly functions as a provider of
continuous electrical energy for magnet. It will stop providing electrical energy for magnet when the flame is put out by external
factors, then the magnet acts so that the gas valve is closed, which prevent the danger from gas leakage.
Technical Characteristics
1. Type of connection to magnet unit: Nut, Coaxial, Faston
2. Lengths: 170-1850mm
3. Maximum temperature (head): Depending on the head type, up to 700°C maximum.
4. E.M.F. in open circult: ≥30mV(Normal) ≥16mv(Fast action)
5. Inner resistance: 8.5+0.22*L(mΩ)
Thermocouple is a part that is working from thermo energy converse into electrical energy. It mainly functions as a provider of
continuous electrical energy for magnet. It will stop providing electrical energy for magnet when the flame is put out by external
factors, then the magnet acts so that the gas valve is closed, which prevent the danger from gas leakage.
Technical Characteristics
1. Type of connection to magnet unit: Nut, Coaxial, Faston
2. Lengths: 170-1850mm
3. Maximum temperature (head): Depending on the head type, up to 700°C maximum.
4. E.M.F. in open circult: ≥30mV(Normal) ≥16mv(Fast action)
5. Inner resistance: 8.5+0.22*L(mΩ)
|
Type
|
Thermocouple
|
Length
|
Custom
|
|
Material
|
Cooper(thermocouple head:80%Ni,20%Cr)
Cable-Silicone, Cooper, Teflon |
Tip
|
M8x1,M9x1,M10x1,11/32-32,4.8x0.5,6.3x0.8
|
|
Gas source
|
NG/LPG
|
Application
|
Gas heater, gas water heater, gas grill, gas stove
|
|
MOQ
|
500pcs
|
Certificate
|
CAS CE
|
|
Delivery time
|
20-30Days
|
Place
|
Ningbo,Zhejiang
|
