Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dailor
-
Model Number:
-
YWF.G2S-150-217AA2A, YWF.G2S-150-217AA20, YWF.G2S-160-217AA2A, YWF.G2S-160-217AA20
-
Voltage:
-
110/120V, 220/230V, 110/120V, 220/230V
-
Impeller material:
-
Galvanized Plate
-
Rotor material:
-
Aluminum casting
-
Housing material:
-
DC04
-
Protection class:
-
IP44
-
Insulation class:
-
F
-
Bearing:
-
Maintenance free ball bearing
-
Diameter:
-
150mm, 160mm
-
Height of Impeller:
-
217 mm
-
Motor poles:
-
2
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
-
Electric Current Type:
-
AC
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dailor
-
Model Number:
-
YWF.G2S-150-217AA2A, YWF.G2S-150-217AA20, YWF.G2S-160-217AA2A, YWF.G2S-160-217AA20
-
Voltage:
-
110/120V, 220/230V, 110/120V, 220/230V
-
Impeller material:
-
Galvanized Plate
-
Rotor material:
-
Aluminum casting
-
Housing material:
-
DC04
-
Protection class:
-
IP44
-
Insulation class:
-
F
-
Bearing:
-
Maintenance free ball bearing
-
Diameter:
-
150mm, 160mm
-
Height of Impeller:
-
217 mm
-
Motor poles:
-
2
| Backward Centrifugal Fan Sizes | 133mm ~ 560mm |
| Forward Centrifugal Fan Sizes | 120mm ~ 250mm |
| Single Inlet Blower Fan Sizes | 120mm ~ 200mm |
| Double Inlet Blower Fan Sizes | 120mm ~ 146mm |
| Axial Fan Sizes | 200mm ~ 710mm |
| Inline Duct Fan Sizes | 100mm ~ 315mm |
| Voltage | AC Input: 115V, 120V, 220V, 230V, 380V, 400V |
| DC Input: 12V, 24V, 48V | |
| EC Input: 220V, 230V, 380V, 400V | |
| Power | Up to 2300W |
| Speed | Up to 4528RPM |
| Airflow | Up to 24000m3/h |
| Speed Control | Speed controller (AC) or 0-10V/PWM Input (DC&EC) |
| Approvals | CCC, CE, RoHs, UL, CUL |

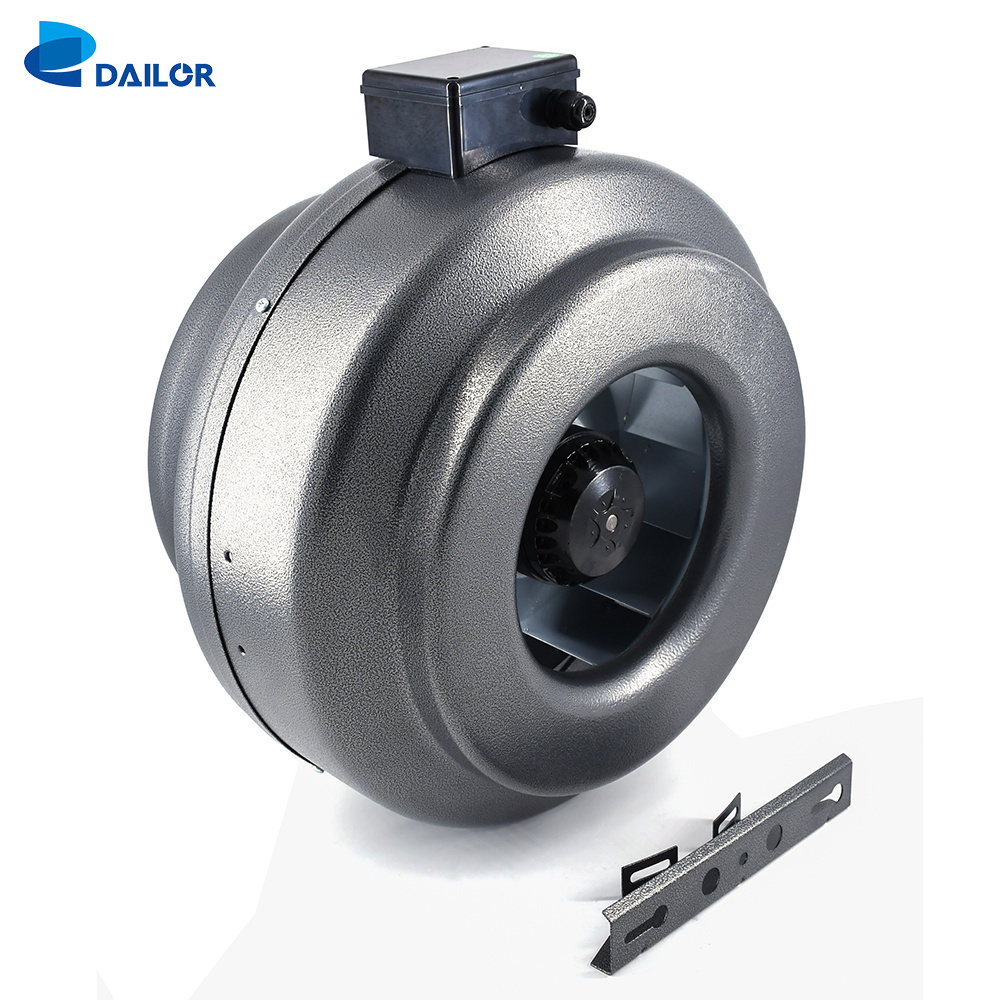

φ150mm Duct Fan
Specification of φ150mm Duct Fan
|
Volatge |
Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Curve No. | Operating Temperature | |
| Model No. | V | Hz | A | W | RPM | μF | m³/h/CFM | dB(A) | # | Min/Max(℃) |
| YWF.G2S-150-217AA2A | 110/120 | 50 | 0.61 | 75 | 2550 | 10 | 450/260 | 67 | (1) | -30/+60 |
| 60 | 0.84 | 100 | 2700 | 10 | 500/290 | 68 | (2) | -30/+60 | ||
| YWF.G2S-150-217AA20 | 220/230 | 50 | 0.35 | 75 | 2535 | 3 | 450/260 | 67 | (1) | -30/+60 |
| 60 | 0.48 | 102 | 2700 | 3 | 500/290 | 68 | (2) | -30/+60 |
------------------------------------------------------------------------------------------------------------------------------------------------------
φ160mm Duct Fan
Specification of φ160mm Duct Fan
|
Volatge |
Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Curve No. | Operating Temperature | |
| Model No. | V | Hz | A | W | RPM | μF | m³/h/CFM | dB(A) | # | Min/Max(℃) |
| YWF.G2S-160-217AA0A | 110/120 | 50 | 0.91 | 110 | 2435 | 12 | 710/417 | 72 | (1) | -30/+60 |
| 60 | 1.28 | 150 | 2430 | 12 | 715/420 | 73 | (2) | -30/+60 | ||
| YWF.G2S-160-217AA20 | 220/230 | 50 | 0.52 | 114 | 2415 | 4 | 710/417 | 72 | (1) | -30/+60 |
| 60 | 0.70 | 152 | 2430 | 4 | 715/420 | 73 | (2) | -30/+60 |
Model Numbering( For example )
- Please kindly click on the model you want for more details:
100mm Inline centrifugal duct fan 125mm Inline centrifugal duct fan 150mm Inline centrifugal duct fan
160mm Inline centrifugal duct fan 200mm Inline centrifugal duct fan 250mm Inline centrifugal duct fan
300mm Inline centrifugal duct fan 315mm Inline centrifugal duct fan
Quality Control
From selecting raw material, making motor parts, to assembling final product, Pengfei motor values every detail of the motor producing process. Full sets of equipments and skilled staffs also make the quality control more accurate. 100% test and inspection achieve good quality and satisfy our customers greatly.
FAQ
1. Are you a trade company or a manufacturer?
A: We are manufacturer in China. We have ISO, CCC, ROHS, CE certification. OEM & ODM services are available.
2. What is your MOQ?
A: Our minimum order quantity is 30pcs.
3.What is your delivery date?
A: The delivery date is about 25-40 days after receipt of payment.
4. What is your payment terms?
A: T/T, 30% deposit in advance and 70% balance before shipment.
5. Can you send free samples?
A: Yes, free samples are available, you just need to pay the express fee. You can provide your a/c like DHL, UPS or you can call your courier to pick up from our factory.
Most importantly, all of our products can be customized. Don’t hesitate, contact us to get more info and customize your products.
