Quick Details
-
Weight:
-
7500 kg
-
Dimension(L*W*H):
-
6680*2450*2710
-
Product Name:
-
Pile Driving Machine
-
Application:
-
Pile Driving
-
Type:
-
Hydrualic
-
Keywords:
-
Pile Driver
-
Usage:
-
Solar pile driver
-
Drilling range:
-
185~500mm
-
Rock hardness:
-
f=6-20
-
Air consumption:
-
25~73m3/min
-
Track Leveling Angle:
-
±10°
-
Dynamic parameters:
-
86KW/2200r/min
Quick Details
-
Efficiency:
-
High Efficiency
-
Piling Speed(m/min):
-
3-6m/min
-
Place of Origin:
-
China
-
Weight:
-
7500 kg
-
Dimension(L*W*H):
-
6680*2450*2710
-
Product Name:
-
Pile Driving Machine
-
Application:
-
Pile Driving
-
Type:
-
Hydrualic
-
Keywords:
-
Pile Driver
-
Usage:
-
Solar pile driver
-
Drilling range:
-
185~500mm
-
Rock hardness:
-
f=6-20
-
Air consumption:
-
25~73m3/min
-
Track Leveling Angle:
-
±10°
-
Dynamic parameters:
-
86KW/2200r/min
Products Description

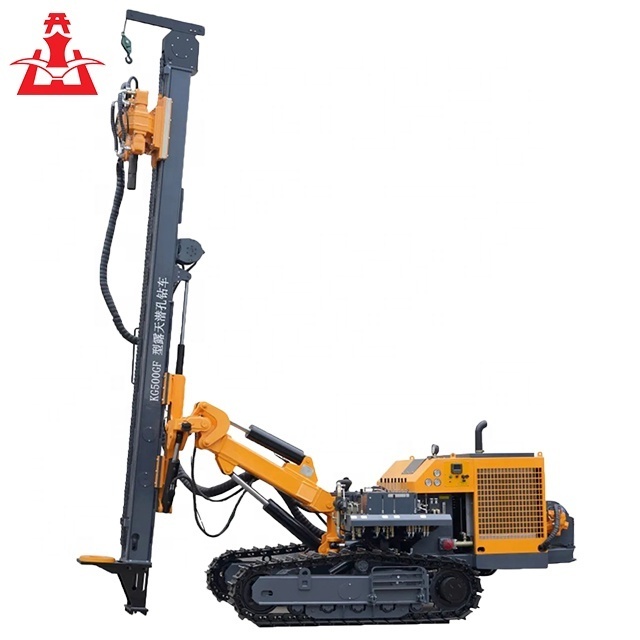

KG500GF open-air photovoltaic drilling rig is a product specially designed for photovoltaic foundation pile holes. It is equipped with an 86KW engine, high-efficiency desert air filter, and the maximum drilling diameter can reach 500mm. The hydraulic system uses a high-pressure cast iron pump, widened and thickened walking track shoes, a 28A roller chain for the lifting chain, and a box-type large-section steel guide rail to ensure that it has sufficient strength and can advance 4 meters at a time. The gyrator is equipped with four sets of slewing hydraulic motors, which are driven by high-modulus straight teeth and large reduction ratio, providing the drilling rig with a slewing torque of up to 12000Nm,
suitable for large-diameter pile hole construction operations. Optional 1-ton carriage winch is convenient for hoisting drill bits, drilling tool impactors, etc. when used on large slopes, an 8-ton frame winch can be selected to ensure sufficient traction when the drill rig is used.
Product Paramenters
|
Rock hardness
|
f=6-20
|
|
Drilling range
|
Ф185~500mm
|
|
one push length
|
4m
|
|
Vehicle weight (without hoist)
|
7500Kg
|
|
Ground clearance
|
325mm
|
|
Gradeability
|
≤25°
|
|
Air consumption
|
25~73m3/min
|
|
supporting power
|
Yuchai DKC9G0
|
|
Dynamic parameters
|
86KW/2200r/min
|
|
way of promotion
|
motor+roller chain
|
|
lifting force
|
25KN
|
|
advance itinerary
|
4275m
|
|
Swing torque
|
12000N·m
|
|
Rotational speed
|
45-80Rpm
|
|
Walking speed
|
0~3Km/h
|
|
Slider Pitch Angle
|
165°
|
|
Carriage swing angle
|
Left 50°Right 50°Total 100°
|
|
Boom pitch angle
|
Down 50°Up 25° Total 75°
|
|
Drill arm swing angle
|
Left 30°Right 30°Total 60°
|
|
Carriage Compensation Length
|
1200mm
|
|
Track Leveling Angle
|
±10°
|
|
Matching drill pipe
|
Ф102
|
|
Dimensions
|
6680×2450×2710
|
|
Slide frame hoist (optional)
|
1Ton
|
|
Frame hoist (optional)
|
8Ton
|
Products Details
Optional sliding frame hoist
Optional 1-ton carriage winch is convenient for hoisting drill bits, drilling tool impactors, etc. when used on large slopes, an 8-ton frame winch can be selected to ensure sufficient traction when the drill rig is used.
High modulus spur gear large reduction ratio gyrator
Equipped with four sets of slewing hydraulic motors, it provides the rig with a slewing torque of up to 12000Nm to meet the construction requirements of large-diameter pile holes.
Centralized operating platform
The highly centralized control console is simple and convenient in layout, and it is more intuitive and clear to judge the status
of the drilling rig. All action instructions are clear and easy to operate.
of the drilling rig. All action instructions are clear and easy to operate.
Box type large section steel guide rail
The box-type large-section steel guide rail ensures that it has sufficient strength. The lifting chain adopts 28A roller chain,
and the length of one push can reach 4 meters.
and the length of one push can reach 4 meters.
