Magnet Reed Switch Sensor Door Proximity Switch for Door Contacts

Magnet Reed Switch Sensor Door Proximity Switch for Door Contacts

FOB Reference Price: Get Latest Price

≥10 Pieces

US $1.5

≥100 Pieces

US $1.3

≥500 Pieces

US $1.2

≥1000 Pieces

US $1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 1 Year

Type:: Magnetic Proximity Switch

Sensing Range:: 10-50MM

Max. Current:: 0.5A

color:: black

size:: small size

Temperature rating:: -10-+85°C

application:: proximity sensor

Keywords:: magnetic proximity switch

place of production:: Guangdong

installation:: easy

Usage:: Magnetic Sensor

Output:: Switching Transducer

Certification:: CE

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: ACM

Model Number:: ACM- REED SENSOR SWITCH

Warranty:: 1 Year

Type:: Magnetic Proximity Switch

Sensing Range:: 10-50MM

Max. Current:: 0.5A

color:: black

size:: small size

Temperature rating:: -10-+85°C

application:: proximity sensor

Keywords:: magnetic proximity switch

place of production:: Guangdong

installation:: easy

Usage:: Magnetic Sensor

Output:: Switching Transducer

Certification:: CE

MR2314 Magnet Reed Switch Sensor Door Proximity Switch for Door Contacts

1.Low cost 2.Long life 3.Simple installation 4.Wide applications

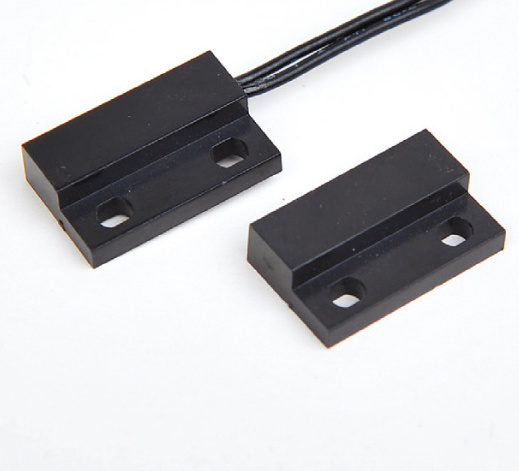

This sensor is essentially a reed switch, encased in an ABS plastic shell. Normally the reed is 'open' (no connection between the two wires). The other half is a magnet.

They're often used to detect when a door or drawer is open, which is why they have mounting tabs and screws

Application

* Position and limit switching
* Security
* Linear actuators

* Door switch

PROXIMITY SENSORS

Introduction

Proximity sensor is constructed by shaping and sealing the magnetic spring tube connected with wires.Switching action will occur when a magnetic object is in the proximity.It is usually used as a position sensor.Proximity sensor is widely used in measuring instruments,office automated equipment,household supplies,security and safety equipment,and transportation equipment.

Proximity sensor

u Specifications

item	technical parameters
Contact type	Usual opened type, usual closed type ( optional )
Max contact power	10W	50W
Max switch voltage	100VDC/100VAC	350VDC/300VAC
Min break down voltage	150VDC	600VDC
Max switch current	DC0.5A	DC0.7A/AC0.5A
Max carry current	1.0A	2.5A
Max contact resistance	100mΩ	100mΩ
Min insulation resistance	10 ⁹ Ω	10 ¹⁰ Ω
Contact life	10 ⁷ times
Temperature range	-10 ~ +125 ℃
Max conduction distance	18±2mm
material	ABS, SUS, c, copper, aluminum, zinc alloy(customization)
lead	customization
