Quick Details
-
Weight (KG):
-
500
-
Voltage:
-
220V/110V, 50Hz, 60Hz
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
2040*1800*2140mm
-
Item Name:
-
Liquid Vacuum Packing machine
-
Bag type:
-
back center sealing with vacuum
-
Usage:
-
Packing liquid or paste
-
Keyword:
-
liquid or paste packing machine
-
Packing speed:
-
10-20 bags/min
-
Packing film material:
-
laminated film
-
Machine type:
-
Automatic Bag Forming Filling Sealing Machine
-
Machine material:
-
Stanless Steel
-
Main Function:
-
packing liquid or paste
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Laminating, COATING, Sealing, Embossing, SLITTING
-
Packaging Type:
-
Stand-up Pouch, Bags, Film, Foil, Pouch
-
Packaging Material:
-
Plastic, Paper
-
Weight (KG):
-
500
-
Voltage:
-
220V/110V, 50Hz, 60Hz
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
2040*1800*2140mm
-
Item Name:
-
Liquid Vacuum Packing machine
-
Bag type:
-
back center sealing with vacuum
-
Usage:
-
Packing liquid or paste
-
Keyword:
-
liquid or paste packing machine
-
Packing speed:
-
10-20 bags/min
-
Packing film material:
-
laminated film
-
Machine type:
-
Automatic Bag Forming Filling Sealing Machine
-
Machine material:
-
Stanless Steel
-
Main Function:
-
packing liquid or paste
Products Description

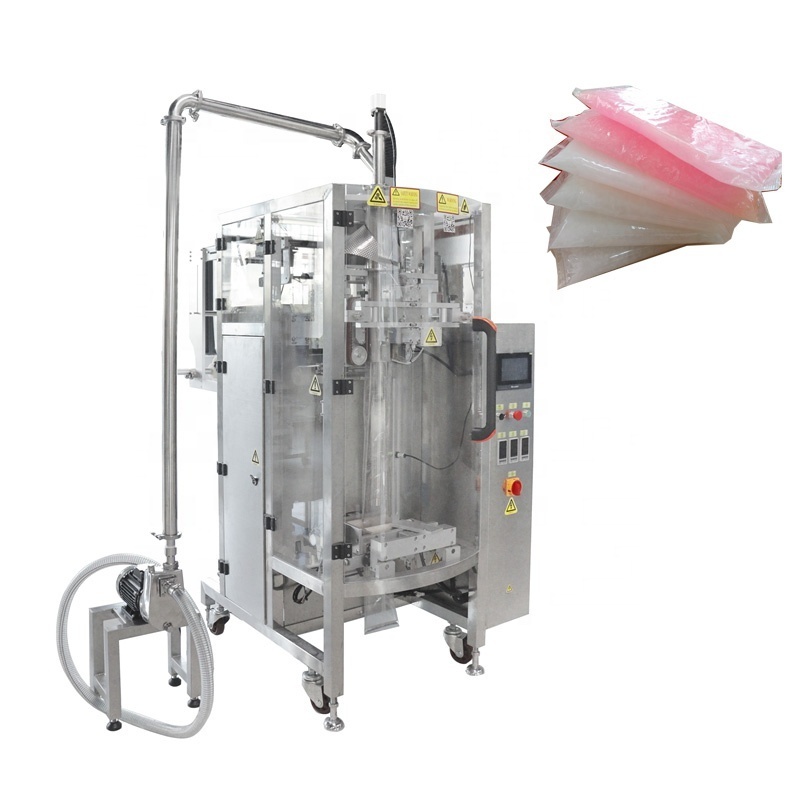

Automatic Big Volume Vacuum Packing Machine for Liquid or Paste
*
This machine is suitable for packing
liquid or paste into vacuum bag style, mostly used for packing paraffin, wax, sauce, etc
Application
Paraffin
Sauce
mayonnaise
Sample Bags
Normal pillow bag liquid vacuum bag style
Special shape paste vacuum bag style
Product Paramenters
|
Item
|
Automatic Big Volume Vacuum Packing Machine for Liquid or Paste
|
|
Model
|
BG-420Y
|
|
Sealing Method
|
heat sealing
|
|
Filling System
|
Piston pump or electrical pump
|
|
Packing Speed
|
10-30 bags/min
|
|
Bag Size
|
Bag Length 40-300mm, bag Width 30-200mm
|
|
Filling range
|
Packing volume can be adjusted, depends on your packing variety and packing volume
|
|
Bag Type
|
back sealed bags or special shape bag style
|
|
Cutting type
|
wave cutting
|
|
Date printer
|
Optional to choose
|
|
Control system
|
Mitsubishi PLC+ screen
|
|
Air Consumpion
|
≥0.8Mpa, 0.6m³/min
|
|
Power
|
380V, 220V, 50/60Hz, 3 phase
|
|
weight
|
500 kg
|
|
Overall Denmensions
|
L1330mm*W1140mm*H1800 (mm)
|
Features:
1) All the Electronic components adopt international famous brand excluding motor, the motor use regular domestic brand.
2) The raw material of the products adopts stainless steel.
2) Mitsubishi PLC control system
3) English panel
4) Noiseless stepping motor to improve steady working condition and decrease vibrator and noise.
5) Can get a perfect pictures when the packing material with color code.
6) This machine is easy to operate and maintain.
7) This machine can finish pulling, forming, fulfilling, measuring, sealing, cutting, printing automatically.
2) The raw material of the products adopts stainless steel.
2) Mitsubishi PLC control system
3) English panel
4) Noiseless stepping motor to improve steady working condition and decrease vibrator and noise.
5) Can get a perfect pictures when the packing material with color code.
6) This machine is easy to operate and maintain.
7) This machine can finish pulling, forming, fulfilling, measuring, sealing, cutting, printing automatically.
