Quick Details
Quick Details
-
Place of Origin:
-
Jiangsu, China
PP Yarn Winding/String Wound Filter Cartridge Machine
PP Yarn filter cartridge is a kind of deep filter cartridge , which is made of the textile fabric string (polypropylene , absorbent cotton and so on) preciously winding onto the multirole axles according to the specific technology. With the honey-comb structure of loose outside and tight inside, it mainly filter the low viscosity and impurity matters, such as the suspension, particles, rust and other impurities. The kind of filter cartridge is used in filtering the tap water, drink, industrial water, living water, electroplate liquid, chemical liquid, oil, paint and so o n.
Technical parameters
|
Item |
Power |
Production Capacity |
Machine Size |
|
Single spindle’s Photo |
|||
|
5’’ |
|
|
|
|
10'' |
0.18KW |
60pcs-70pcs/hour |
800*550*1250mm |
|
20'' |
0.18KW |
30pcs~35pcs/ hour |
1150*550*1250mm |
|
30'' |
0.55KW |
20pcs~25pcs/hour |
1400*550*1250mm |
|
40'' |
0.55KW |
15pcs~20pcs/hour |
1650*550*1250mm |
|
50'' 60" |
0.55KW 0.55kw |
10pcs/hour 8pcs/hour |
1850*550*1250mm 2050*550*1250mm |
|

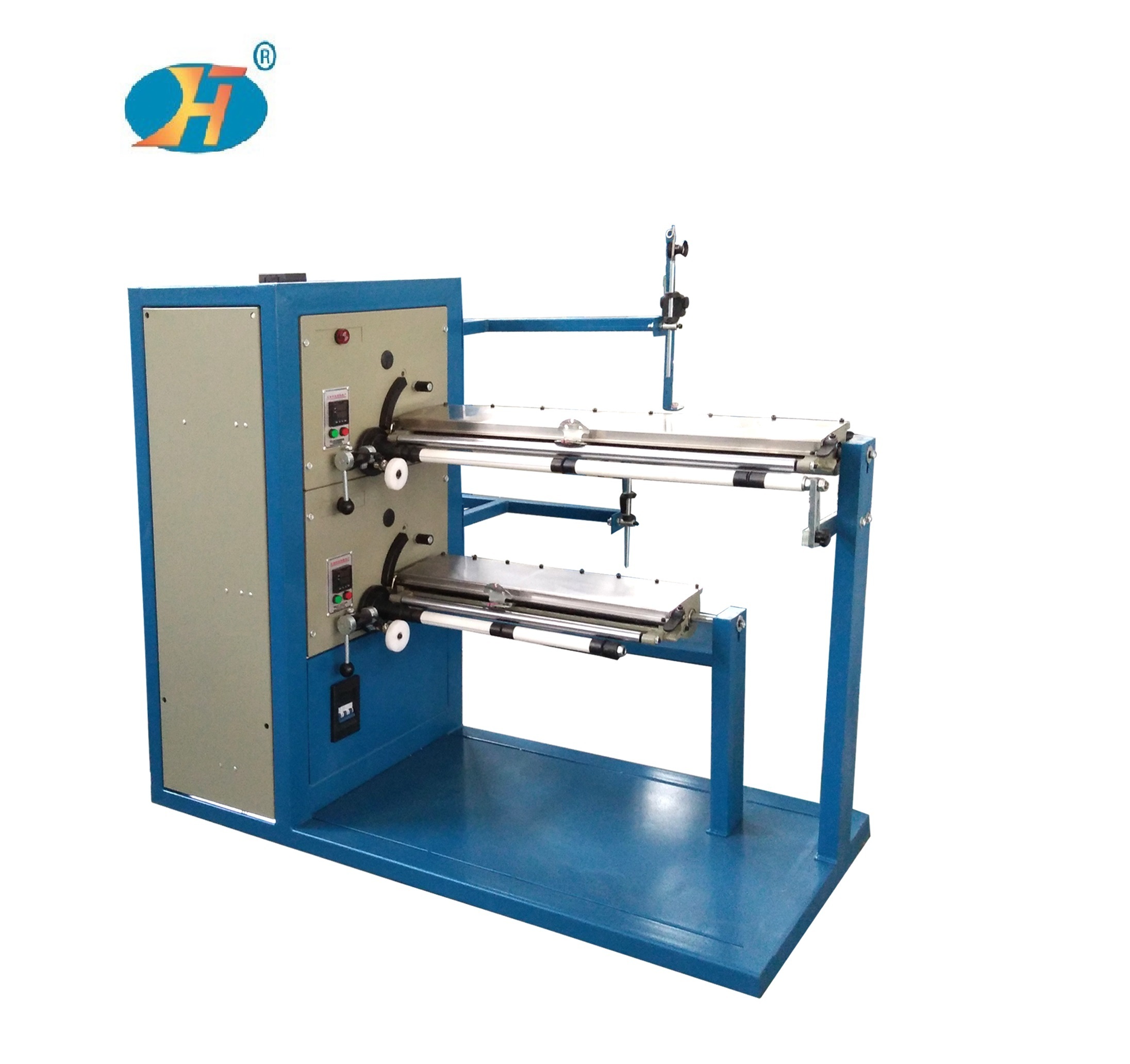

Double spindle’s Photo |
|||
|
10''&10'' |
360W |
120pcs~140pcs/hour |
800*550*1250mm |
|
10''&20'' |
360W |
10’’:60pcs-70pcs/hour 20’’: 30pcs~35pcs/ hour |
1150*550*1250mm |
|
10''&30'' |
730W |
10’’: 60pcs-70pcs/hour 30’’ :20pcs~25pcs/hour |
1400*550*1250mm |
|
10''&40'' |
730W |
10’’:60pcs-70pcs/hour 40’’: 15pcs~20pcs/hour |
1650*550*1250mm |
|
20''&20'' |
360W |
60pcs~70pcs/ hour |
1150*550*1250mm |
|
20''&30'' |
730W |
20’’: 30pcs~35pcs/ hour 30’’ :20pcs~25pcs/hour |
1400*550*1250mm |
|
20''&40'' |
730W |
20’’:30pcs~35pcs/hour 40’’: 15pcs~20pcs/hour |
1650*550*1250mm |
|
30''&30'' |
1100W |
40pcs~50pcs/hour |
1400*550*1250mm |
|
30''&40'' |
1100W |
30’’:20pcs~25pcs/hour 40’’: 15pcs~20pcs/hour |
1650*550*1250mm |
|
40''&40'' |
1100W |
30pcs~40pcs/hour |
1650*550*1250mm |
|
We also could do any length if you have requirement. Max. length=100’’. |
|||
There are two types of pp yarn winding filter cartridge machine as below:
| Name | Description |
| Manu control type |
1. Adjust the working speed manually 2. Adjust the mircos and patterns manually |
| Auto control type |
1. Adjust the working speed automatically 2. Adjust the mircos and patterns A utomatically |
