Quick Details
-
Brand Name:
-
Rawsun
-
Model Number:
-
R45-120
-
Frequency:
-
.
-
Rated Power/kW:
-
20
-
Peak Power/kW:
-
45
-
Rated Torque/N.m:
-
52
-
Peak Torque/N.m:
-
120
-
Rated Speed/ r/min:
-
4050
-
Max Speed/ r/min:
-
12000
-
Rated Current/A:
-
80
-
Peak Current/A:
-
190
-
Enclosure Protection Grade:
-
IP67
-
Insulation Grade:
-
Grade H
-
Certification:
-
CE
Quick Details
-
AC Voltage:
-
220-450VAC
-
Warranty:
-
12 months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rawsun
-
Model Number:
-
R45-120
-
Frequency:
-
.
-
Rated Power/kW:
-
20
-
Peak Power/kW:
-
45
-
Rated Torque/N.m:
-
52
-
Peak Torque/N.m:
-
120
-
Rated Speed/ r/min:
-
4050
-
Max Speed/ r/min:
-
12000
-
Rated Current/A:
-
80
-
Peak Current/A:
-
190
-
Enclosure Protection Grade:
-
IP67
-
Insulation Grade:
-
Grade H
-
Certification:
-
CE
Product Description

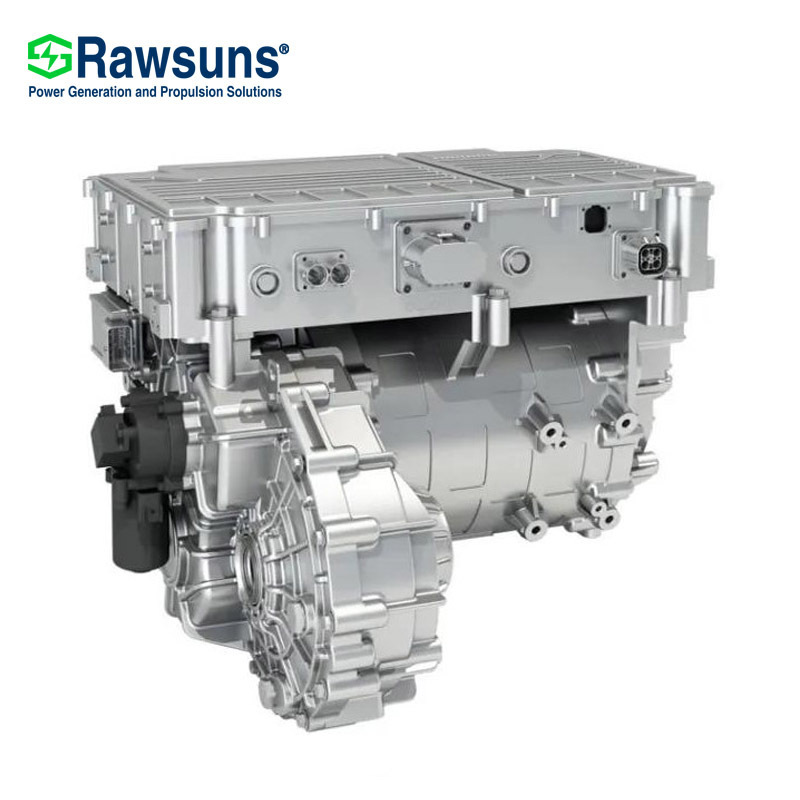

AC Motor Electric Car Conversion Kit Three-in-one Motor Controller+Gearbox Traction Motor for Electric Car Passenger
Rawsun EV Motor List
Rawsun EV motor Wide range, high quality, no worry and best choice!
|
Vehicle type
|
Range
|
|
Passenger 3P AC asyn(induction motor)
|
7KW(40.5Nm)-55KW(192Nm)
|
|
Passenger (3P AC PMSM motor)
|
45KW(120Nm)-120KW(260Nm)
|
|
Commercial (3P AC PMSM motor)
|
50kw(180Nm)-200kw(2800Nm)
|
|
TAD (Transmission-mounted electric drive)
(3P AC PMSM motor) |
110KW(320Nm)-360KW(2000Nm)
|
|
DM (Direct-drive motor)
(3P AC PMSM motor) |
120KW(850Nm)-200KW(2800Nm)
|
|
PHD (Parallel Hybrid drive)
(3P AC PMSM motor) |
130KW(335Nm)-200KW(930Nm)
|
|
MHD (Multi-mode Hybrid Drive)
(3P AC PMSM motor) |
135KW(450Nm)-220KW(2850Nm)
|
|
EAD(Electric Alex Drive)
(3P AC PMSM motor) |
105KW(320Nm)-220KW(550Nm)
|
We also provide motor controller, DCDC, DCAC, PDU, OBC, VCU, dashboard, Pedal, gear panel, battery pack with BMS, WireHarness to
complete the ev conversion kit.
AC Motor Electric Car Conversion Kit Three-in-one Motor Controller+Gearbox Traction Motor for Electric Car Passenger
AC Motor Electric Car Conversion Kit Three-in-one Motor Controller+Gearbox Traction Motor for Electric Car Passenger
Rawsun ev motors are high efficiency designed for electric vehicles and electric boats as drive engines with output peak power 50 kw to 200 kw, peak torque 180 Nm to 2800 Nm.
AC Motor Electric Car Conversion Kit Three-in-one Motor Controller+Gearbox Traction Motor for Electric Car Passenger
|
Rated Power
|
25 kw to 120 kw
|
|
Peak Power
|
50 kw to 200 kw
|
|
Rated Torque
|
80 Nm to 1200 Nm
|
|
Peak Torque
|
180 Nm to 2800 Nm
|
|
Rated Speed
|
955 rpm to 3000 rpm
|
|
Peak Speed
|
2700 rpm to 6000 rpm
|
|
Model
|
Applications
|
Battery Voltage
|
Motor Rated KW
|
Motor Peak KW
|
Tn/N.m
|
Tmax/N.m
|
Speed rpm
|
Speed rpm
|
Imax/A
|
|
RSTM260-J
|
2T Truck
|
380
|
25
|
50
|
80
|
180
|
3000
|
6000
|
190
|
|
RSTM261-J
|
2.5T Truck
|
380
|
34
|
68
|
110
|
270
|
3000
|
6000
|
320
|
|
RSTM262-J
|
4.5T Truck / 6M AMT Bus
|
380
|
50
|
90
|
160
|
350
|
3000
|
6000
|
300
|
|
RSTM262D1
|
5T Truck
|
380
|
50
|
80
|
170
|
380
|
3000
|
6000
|
385
|
|
RSTM262D1-H
|
5T Truck
|
540
|
50
|
80
|
170
|
380
|
3000
|
6000
|
288
|
|
RSTM423
|
8M AMT Bus
|
540
|
70
|
120
|
335
|
600
|
2000
|
4500
|
295
|
|
RSTM424
|
8M AMT Bus
|
380
|
70
|
120
|
335
|
600
|
2000
|
4500
|
370
|
|
RSTM424A
|
10 AMT Bus
|
540
|
90
|
130
|
285
|
500
|
3000
|
4500
|
300
|
|
RSTM420
|
6.6-7M Direct-drive Bus/ 7.5T Truck
|
540
|
115
|
150
|
550
|
1000
|
2000
|
4500
|
340
|
|
RSTM421
|
6M Direct-drive
|
380
|
70
|
120
|
335
|
800
|
2000
|
4500
|
374
|
|
RSTM422
|
10-12M AMT Bus
|
540
|
115
|
150
|
550
|
1000
|
2000
|
4500
|
340
|
|
RSTM430
|
8M Direct-drive Bus
|
540
|
92
|
140
|
764
|
1700
|
1150
|
3000
|
350
|
|
RSTM460A-2500
|
12M Direct -drive
|
576
|
100
|
200
|
1000
|
2500
|
955
|
2700
|
500
|
|
RSTM460A-2800
|
12M Direct -drive
|
576
|
120
|
200
|
1200
|
2800
|
955
|
2700
|
543
|
Rawsun EV Conversion Kit
Rawsun EV motors range from 50kw(180Nm)-200kw (2800Nm), we also provide motor controller , DCDC, DCAC, PDU, OBC, VCU, dashboard, Pedal, gear panel , battery pack with bms , wireharness to complete the ev conversion kit.
Detailed Images
AC Motor Electric Car Conversion Kit Three-in-one Motor Controller+Gearbox Traction Motor for Electric Car Passenger
Related Products
Packing&Shipping
Company Introduction
Rawsun Technology (Shantou) CO., LTD is located in Shantou China, with Rawsun Power Co Ltd , one of the largest manufacturing bases of diesel generator sets and motors in Changtai, China, covering an area of 50,000 sq.m. Over the past 15 years, Rawsun Power devoted itself to researching, manufacturing and selling superb diesel generator set and permanent magnet synchronous motors, range from 10KVA to 4000KVA. Rawsun Power produces varied types of generators for different users, including soundproof type, super silent type, containerized type, mobile type, open type ect.
Rawsun has established long-term cooperation with world leading companies, such as CUMMINS, PERKINS, DOOSAN, MITSUBISHI, MTU, STAMFORD,LEROY SOMER,MARATHON ect in the area of generating sets. With the excellent quality and service, Rawsun has built a good reputation with customers, and our products are exported to over eighty countries and regions, over 12000 units production capacity per year.
Today, Rawsun has a strong research and development team, a high energy management team, a professional workers team and a series of high-tech facility. Part of Rawsun’ s success is due to the fact that we always attach importance to the quality and the market. We continuously search for new materials and techniques that will help us to build better products and offer our customers even higher levels of service and performance.
Relying on the drive motor products and supporting the electric drive controller, Rawsun provides customers with innovative and energy-saving electric drive core components and precise and perfect motor drive solutions, and is committed to becoming the top automotive motor system manufacturer in the world. Rawsun implements the high starting point development strategy, devotes to the product innovation research and development and the enterprise's scientific management, gradually establishes the worldwide marketing service network, equipped with the first-class product sales and technical support team, and improves the pre-sales and after-sales service system. Rawsun ev motor and system has been widely used in full electric buses, electric trucks and electric boats, Rawsun adhering to the concept of lean manufacturing, adhere to the people-oriented, focusing on research and development, take the market as the guidance, take the quality as life, to innovation as the electric propulsion system, provides the omni-directional service for the customer and electric vehicle drive system with the professional solutions. Rawsun strives to create the champion products of environmental protection, precision and stability, and makes unremitting efforts to become an outstanding contributor of global power generation and propulsion solutions.
Rawsun dedicate to provide the green power and propulsion solution all over the world. We will create a great future hand in hand with you - our customers, partners and friends.
AC Motor Electric Car Conversion Kit Three-in-one Motor Controller+Gearbox Traction Motor for Electric Car Passenger
Our Services & Strength
Rawsun Technology is committed to become a professional electric vehicle motor manufacturer. With Independent R&D and production strength, Rawsun practices standardized production process. Rawsun's independent production workshop includes：motor automated production lines, CNC machine tools, machining center, CNC grinding machine， CNC boring machine, CNC wire cutting machine, automatic punching machine, automatic drilling machine, automatic winding machine, large automatic painting line, etc.We have professional click testing laboratory, establish new energy motor electrical engineering experiment center and provide quality assured motor products for customers.
