Quick Details
-
Power (kW):
-
5.5
-
Range of Spindle Speed(r.p.m):
-
2800 - 4500 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hengmai
-
Voltage:
-
/220V/380/415/460V/480V
-
Dimension(L*W*H):
-
600x700x1450mm
-
Weight (KG):
-
320 KG
-
Product name:
-
Powder Grinding Crushing Machine
-
Function:
-
Grinding Material
-
Name:
-
Flour Grinding Machine
-
Machine Type:
-
Grinder Mill Grinding Machine
-
Usage:
-
Chinese Herb
-
Suitable for:
-
Chemical Rice Coffee Beans Grinding
-
Capacity:
-
60-1200kg/h
-
Fineness:
-
60-120mesh/60-150mesh
Quick Details
-
Output (kg/h):
-
60 - 1500 kg/h
-
Feeding Size (mm):
-
6 - 15 mm
-
Output Size (mesh):
-
60 - 120 mesh
-
Power (kW):
-
5.5
-
Range of Spindle Speed(r.p.m):
-
2800 - 4500 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hengmai
-
Voltage:
-
/220V/380/415/460V/480V
-
Dimension(L*W*H):
-
600x700x1450mm
-
Weight (KG):
-
320 KG
-
Product name:
-
Powder Grinding Crushing Machine
-
Function:
-
Grinding Material
-
Name:
-
Flour Grinding Machine
-
Machine Type:
-
Grinder Mill Grinding Machine
-
Usage:
-
Chinese Herb
-
Suitable for:
-
Chemical Rice Coffee Beans Grinding
-
Capacity:
-
60-1200kg/h
-
Fineness:
-
60-120mesh/60-150mesh
Product Overview

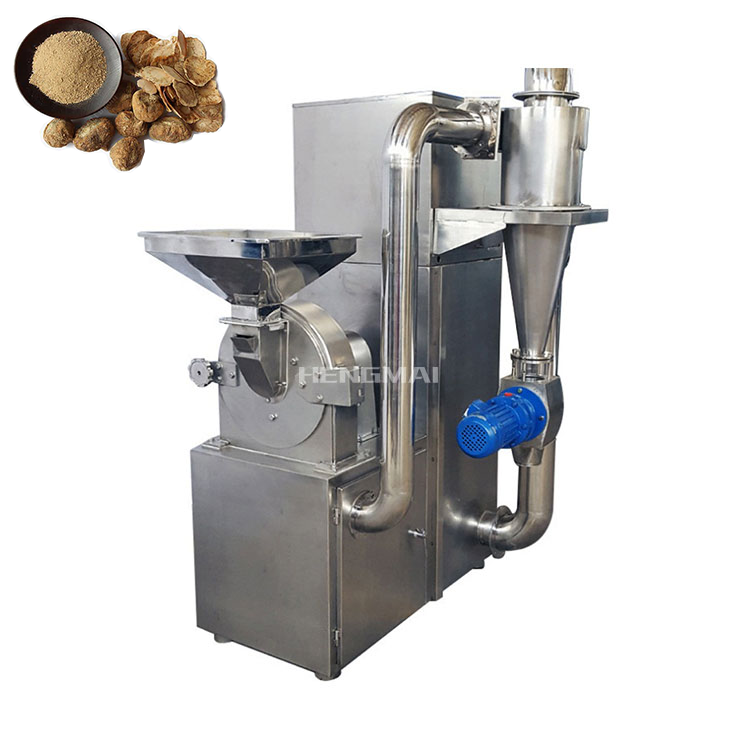

30B multifunctional pulverizerr
This machine is suitable for crushing brittle materials in chemical industry, food, pesticide and other industries. It is a new generation of crushing equipment integrating crushing and dust collection, which is widely used.
Main Features
1. Simple structure, easy operation；rapid and uniform crushing of materials.
2. The inner surface of the casing is smooth and easy to clean.
3. The pulverizer system can be integrated, stand-alone and combined.
2. The inner surface of the casing is smooth and easy to clean.
3. The pulverizer system can be integrated, stand-alone and combined.
Principle
The unit uses the relative movement between the movable fluted disc and the fixed fluted disc to make the material crushed by the impact of fluted disc, friction and mutual impact. The pulverized material will automatically enter the feeding bag under the action of rotating centrifugal force, and the dust will be filtered and recycled by the vacuum box through the bag.
|
Model
|
20B
|
30B
|
40B
|
60B
|
|
Production capacity(kg/h)
|
60-150
|
100-300
|
160-800
|
500-1500
|
|
Spindle speed(r/min)
|
4500
|
3800
|
3400
|
2800
|
|
Feeding granularity(mm)
|
6
|
10
|
12
|
15
|
|
Grinding fineness(mesh)
|
60-150
|
60-120
|
60-120
|
60-120
|
|
Grinding motor power(kw)
|
4
|
5.5
|
11
|
15
|
|
Suction fan power(kw)
|
1.5
|
1.5
|
1.5
|
2.2
|
|
Weight(kg)
|
250
|
320
|
550
|
680
|
|
Dimension(cm)
|
110*60*165
|
120*65*165
|
135*70*170
|
1550*100*175
|
Applications
Product packaging and delivery
Why Choose Us
Changzhou Hengmai Drying Equipment Co., Ltd.
Our company located in Changzhou, an industrial star city and a beautiful water town in the south of the Yangtze River, covering total area of 5000sqm. With strong technical force, perfect test system, precision processing equipment and strict management system. We have 10 years of customization experience and excellent R&D team. W specializing in the production of oven, belt dryer, vacuum drying machine, vacuum rotary dryer, drying machine, centrifugal spray dryer, drum scraper dryer, hollow leaf dryer, drum scraper dryer, three dimensional mixing machine, high efficiency wet granulation machine, two dimensional mixer, trough mixer, twin screw mixer, rotary granulator, V mixer, swing system Granulator, high efficiency granulator, hot blast stove, pulverizer, etc. We support non-standard customization and have a great advantage in the quality of price, devoted to creating a set of product design and development, processing and manufacturing, engineering installation and after-sales service in one integrated enterprise.
