Quick Details
-
Control System Brand:
-
WEIHONG/ FSCUT
-
Cutting Thickness:
-
according to the thickness of the steel
-
Control Software:
-
CypOne/ CypCut/TubePro
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LOOKE LASER
-
Weight (KG):
-
2000 KG
-
Keywords:
-
metal laser cutting machine
-
Working area:
-
(X=1500mm)*(Y=3000mm)
-
Laser power:
-
1000W /1500W/ 2000W / 3000W
-
Cutting materials:
-
Stainless Steel Carbon Steel
-
Laser head:
-
Raytools Cutting Head
-
Bed structure:
-
High rigidity welded steel framework
-
Motors and drivers:
-
FUJI servo motor & driver, X,Y axis 750w, Z axis 400w
-
Guide Rail:
-
Taiwan Hiwin square linear guide rail 25#
-
Control system:
-
FSCUT
-
Reducer:
-
Japan imported SHIMPO reducer
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
80m/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
WEIHONG/ FSCUT
-
Cutting Thickness:
-
according to the thickness of the steel
-
Control Software:
-
CypOne/ CypCut/TubePro
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LOOKE LASER
-
Weight (KG):
-
2000 KG
-
Keywords:
-
metal laser cutting machine
-
Working area:
-
(X=1500mm)*(Y=3000mm)
-
Laser power:
-
1000W /1500W/ 2000W / 3000W
-
Cutting materials:
-
Stainless Steel Carbon Steel
-
Laser head:
-
Raytools Cutting Head
-
Bed structure:
-
High rigidity welded steel framework
-
Motors and drivers:
-
FUJI servo motor & driver, X,Y axis 750w, Z axis 400w
-
Guide Rail:
-
Taiwan Hiwin square linear guide rail 25#
-
Control system:
-
FSCUT
-
Reducer:
-
Japan imported SHIMPO reducer

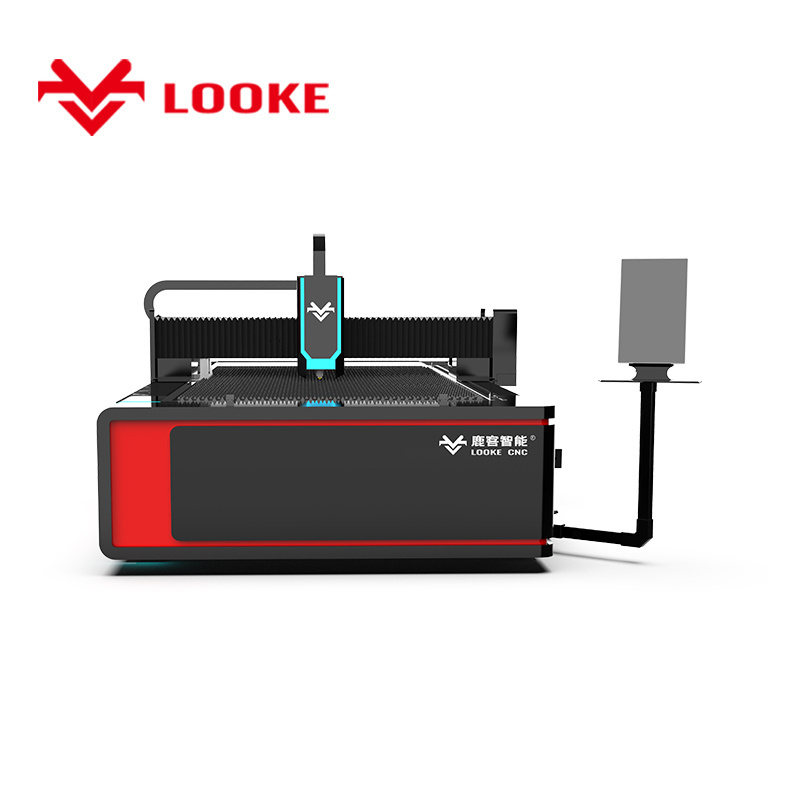

Cheaper Fiber Laser cutting machine 3015 1000w 2000w on discount price laser cutter machine 1500W 3000W 6000W
Fiber laser cutting machine adopting world famous Germany fiber laser source and USA laser cutting head and dynamic focus system,it can cut and punch different kinds of metal material with high precision and high speed. Since laser is transmitted by fiber ,it is no need to maintenance or adjusts the laser optical path , it greatly reduces the machines fault rate and prolongs the working life. Large format cutting area meets the demands of various kinds of metal processing.
It is widely used for carbon steel, stainless steel, aluminum and other metal materials cutting and forming, with high speed, high precision, high efficiency, cost-effective and energy saving. It is the first choice of the metal processing industry.
It is widely used for carbon steel, stainless steel, aluminum and other metal materials cutting and forming, with high speed, high precision, high efficiency, cost-effective and energy saving. It is the first choice of the metal processing industry.
Product Description
LOOKE-L3015 fiber laser metal cutting machine outline dimension wire frame diagram
1. This picture is only used for customer to plan the venue and display the machine.
2. When the machine dimension changed, will let you know.
3. This picture provided by Jinan LOOKE Intelligent Equipment Co.,LTD
Specification
|
Model
|
LOOKE-3015F Fiber Laser Cutting Machine
|
|
Effective working area
|
(X=1500mm)*(Y=3000mm)
|
|
Bed structure
|
High rigidity welded steel framework
|
|
Table surface
|
Blade table
|
|
Laser Source
|
1000/1500/2000/3000W Raycus/ MAX fiber laser source
|
|
Laser cutting head
|
Raytools or WSX laser head
|
|
Guide Rail
|
Taiwan Hiwin square linear guide rail 25#
|
|
Transmission
|
X,Y with YYC helical gear rack ,Z with TBI ball screw
|
|
Motors and drivers
|
FUJI servo motor & driver, X,Y axis 750w, Z axis 400w
|
|
Control system
|
FSCUT 1000S/2000C control system
|
|
Chiller
|
S&A, Dual Temperature Control
|
|
Reducer
|
Japan imported SHIMPO reducer
|
|
Lubrication system
|
Automatic lubrication system
|
|
Electronic Proportional Valve
|
PMC
|
|
Max. idling speed
|
80m/min
|
|
Positioning Accuracy
|
±0.03mm
|
|
Re-Positioning Accuracy
|
±0.02mm
|
|
Working voltage
|
AC220V, single phase /AC380V, 3 phase,50-60hz
|
|
Others
|
Tool box, English Manual, cutting nozzle, protection mirrors etc
|
Machine details
Our Advantages
Performance feature
1.Excellent beam quality : Smaller focus diameter , high work efficiency, better processing quality.
2. High cutting speed: 2-3 times faster than YAG and CO2 laser .
3.High Stability: Adopt superior quality fiber laser, stable performance, key parts can reach .
4. High efficiency for photoelectric conversion : Compared with CO2 laser cutting machine, Fiber laser cutting machine has 3 times photoelectric conversion and with energy saving & friendly environment
Advantages:
1. Low cost: The whole power consumption is only 20-30% of traditional CO2 laser cutting machine.
2.Low maintenance cost: It is with Optical fiber line transmission, no need reflector lens, can save a lot of maintenance cost.
3.Easy Operation : Fiber Line transmission, no adjustment of optical path.
4.Super-flexible optical effect : small volume, compact structure, easy to flexible manufacturing requirements.
1.Excellent beam quality : Smaller focus diameter , high work efficiency, better processing quality.
2. High cutting speed: 2-3 times faster than YAG and CO2 laser .
3.High Stability: Adopt superior quality fiber laser, stable performance, key parts can reach .
4. High efficiency for photoelectric conversion : Compared with CO2 laser cutting machine, Fiber laser cutting machine has 3 times photoelectric conversion and with energy saving & friendly environment
Advantages:
1. Low cost: The whole power consumption is only 20-30% of traditional CO2 laser cutting machine.
2.Low maintenance cost: It is with Optical fiber line transmission, no need reflector lens, can save a lot of maintenance cost.
3.Easy Operation : Fiber Line transmission, no adjustment of optical path.
4.Super-flexible optical effect : small volume, compact structure, easy to flexible manufacturing requirements.
Sample exbition
Packing & Delivery
We will strictly inspection the goods before packing by professional team. Before shipping, they will commission cnc router firstly, then brush oil to linear guide, ball screw, and all the metal sheet,and then lubricate all the hinged parts like pin and bearings. All those wood carving machine will be kept clean,covered of plastic film and then put into the plywood case. Then the cnc router will be in its good conditions on the whole inland and sea transportation. When the machine arrives, a nice,safe,strong and beautiful packaging will catch the client's eyes unexpectedly.
