Quick Details
-
Power:
-
Depend
-
Dimension(L*W*H):
-
Capacity Request
-
Weight:
-
100 KG
-
Product Name:
-
Beer brewing system
-
Heating method:
-
Steam Heating/Electric Heating
-
Control system:
-
PLC Control System
-
Function:
-
Brewing Beer Brewing Equipment
-
Keywords:
-
Brewhouse System
-
Raw material:
-
Water/Wheat/Barley/Yeast/Hops
-
Capacity:
-
5HL 10HL 20HL 30HL 50HL 70HL 5BBL 10BBL 15BBL 20BBL 30BBL 50BBL
-
Application Industries:
-
Alcohol Plant
-
Thickness of Tanks:
-
Inner 3mm/External 2mm
-
Color:
-
Customized
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TONSEN
-
Voltage:
-
Customized
-
Power:
-
Depend
-
Dimension(L*W*H):
-
Capacity Request
-
Weight:
-
100 KG
-
Product Name:
-
Beer brewing system
-
Heating method:
-
Steam Heating/Electric Heating
-
Control system:
-
PLC Control System
-
Function:
-
Brewing Beer Brewing Equipment
-
Keywords:
-
Brewhouse System
-
Raw material:
-
Water/Wheat/Barley/Yeast/Hops
-
Capacity:
-
5HL 10HL 20HL 30HL 50HL 70HL 5BBL 10BBL 15BBL 20BBL 30BBL 50BBL
-
Application Industries:
-
Alcohol Plant
-
Thickness of Tanks:
-
Inner 3mm/External 2mm
-
Color:
-
Customized
*Shandong Tonsen Equipment Co., Ltd is an international comprehensive enterprise, specializing in beer equipment, wine equipment, whiskey equipment and other fermentation system equipment, integrating R&D, production, sales, technical support and service.
*The product includes a variety of large, medium and small brewery equipment, hotel, bar home-brewed beer equipment, teaching experiment etc. And could be used to brew various types of wine, beer, barley-bree (whisky) brandy. We supply brewing of main and auxiliary raw material, technical training, secondary equipment and control equipment, of course, can customize according to customer required special specifications design, production, installation of equipment and other products.

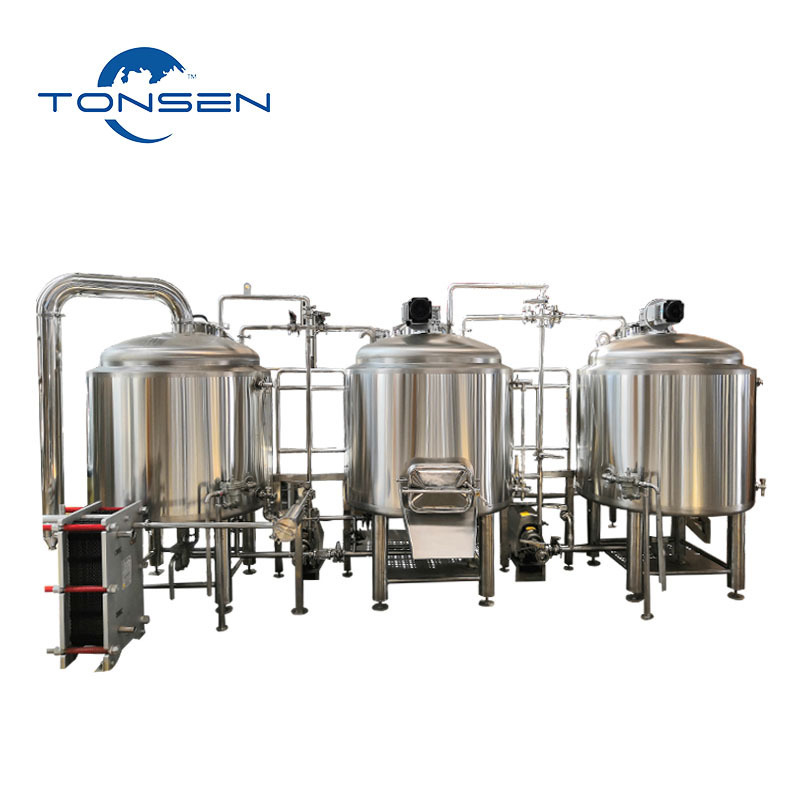

*Our brewhouse system separated to 2 vessels, 3 vessels, 4vessels and 5 vessels, capacity from 100L to 20000L, use electric or steam heat. Semi-automatic control and easy to operate.
The table below are for reference.
1. Brewhouse system.
It is mainly consists of Mash Tun, Lauter Tun, Boiling Kettle, Whirlpool Tun, Hop Dosing Equipment and matched pipeline valves, pumps, etc.
2. Detail show
The main body of the equipment is made of international standard high-quality 304 stainless steel, and the tank body is processed inside and outside by technologies such as plasma cutting, pure argon gas shielded welding, and mechanized automatic polishing. The company's scientific Maitreya plate jacket manufacturing process can achieve the maximum heat conduction effect. The inner tank is insulated with high-quality rock wool or polyurethane materials to effectively prevent the leakage of heat in the tank. The advanced filter tank cutter system and hydraulic automatic lifting technology can ensure the mash is filtered at a uniform speed.
***Main Parameters Of Beer Equipment(500L-three vessels-steam heating).
| System | No. | Item | Parameter |
|
Brewhouse
(electric heating) |
1 | Malt milling | Match |
| 2 | Mash tun | 100l-5000l | |
| 3 | Lauter tun | 100l-5000l | |
| 4 | Kettle | 100l-5000l | |
| 5 | Whirlpool | ||
| 6 | Operating platform | Match | |
| 7 | Brewhouse pipes and valves | Match | |
| 8 | Wort pump | 3t/5t(h) | |
| 9 | Hot liquor tank | 1000l | |
| 10 | Hot liquor pump | 3t/5t(h) | |
| 11 | Plate heat ex-changer | Match | |
|
Fermentation
system |
12 | Fermentation tanks | 100l-5000l |
| 13 | Sanitation grade hose | Match | |
| 14 | Pipes and valves | Match | |
| Cooling system | 15 | Chiller machine | 3-10hp R404A |
| 16 | Glycol water tank | 300l -10000l | |
| 17 | Glycol water pump | 3t/5t(h) | |
| 18 | Pipes and valves | Match | |
| CIP system | 19 | Sterilizing/Alkali liquor tank trolley | 50l-500l |
| 20 | Washing pump | 3t/5t(h) | |
| Control system | 21 | Control cabinet | PLC temperature and pressure digital display control |
1) Capacity:100 liter to 100000 liter as requirement.
2) Material: stainless steel 304/316 or red copper, as requirement.
3) General configuration: mill, brew house, fermentation, cooling and cleaning etc.
4) Heating principle: electric heating, steam heating, gas fire etc.
5) Electricity voltage/frequency can be customized.
6) Running in a high automatization and intellectualization,no pollution.
1) All tanks will be packed with soft protection material and mounted on steel frame
2) All accessories and spare parts will be packed with soft protection material and then put into iron box
3) After loaded into containers, all equipment will be fixed to the containers.
1.Free consultation service before, during and after sales.
2.Project planning and design the layout service.
3.Management of equipment's long distance shipping from seller's factory to named port or station by buyer.
4.Training of equipment maintenance and operation personally.
5.New production techniques.
1.Q: It’s the first year(1st year) for you to produce brewing equipments?
A: No. We worked in this business for many years but it’s the 1st year to generalize by alibaba
2.Q:How any years does your warranty?
A:The main equipment for 3 years, auxiliary ones for 1 year.
3.Q;What’s your advantage?
A:We are pioneer and know this business. Our 3 top-level technicists worked in this business over 10 years, 2 senior engineers worked over 8 years, workers average production experience is 3 years.
4.Q: Can you do OEM or ODM?
A: Yes, we can do.
5.Q: How to control temperature?
A:PLC or digital display meter can control the temperature via connecting with the PT100 sensor.
6.Q: Is possible to supply installation in our country?
A: Yes, we could supply engineer to supply installation guidance and training.
7.Q: Can your factory produce equipment according to our drawing or samples?
A: Yes, we can do.
