Quick Details
-
Model Number:
-
CP-DV66005
-
Brand Name:
-
COMPASS
-
Standard:
-
SMS,DIN,3A
-
Material Contact Parts:
-
SS304/SS316L(1.4301/1.4404)
-
Material Non-contact Parts:
-
SS304(1.4301)
-
Size:
-
1/2inch to 4 inch , DN10 to DN100
-
Body Combination:
-
20 Model,30 Model,11 Model,12Model,21A Model,22A Model,21 Model,
-
Connection:
-
Butt-weld,Tri-clamp,Male Thread,Female-Male Threaded,Union,
-
Seal Material:
-
Silicone,EPDM,FKM,Buna. All seals material comply
-
Working Pressure:
-
≤10bar(145psi)
-
Supply Pressure for Air Actuator:
-
5~8(72.52psi~116psi)
-
External Surface Treatment:
-
Ra32~64uin(0.8~1.6um)
Quick Details
-
Port Size:
-
1/2inch to 4 inch , DN10 to DN100
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
CP-DV66005
-
Brand Name:
-
COMPASS
-
Standard:
-
SMS,DIN,3A
-
Material Contact Parts:
-
SS304/SS316L(1.4301/1.4404)
-
Material Non-contact Parts:
-
SS304(1.4301)
-
Size:
-
1/2inch to 4 inch , DN10 to DN100
-
Body Combination:
-
20 Model,30 Model,11 Model,12Model,21A Model,22A Model,21 Model,
-
Connection:
-
Butt-weld,Tri-clamp,Male Thread,Female-Male Threaded,Union,
-
Seal Material:
-
Silicone,EPDM,FKM,Buna. All seals material comply
-
Working Pressure:
-
≤10bar(145psi)
-
Supply Pressure for Air Actuator:
-
5~8(72.52psi~116psi)
-
External Surface Treatment:
-
Ra32~64uin(0.8~1.6um)
Product Description

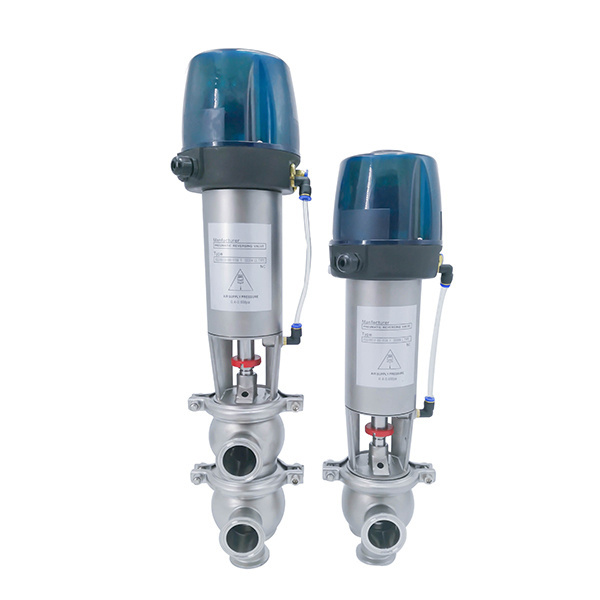

Sanitary Stainless Steel clamp Reversing Pneumatic Divert Seat Valve with 24V Control Head
Sanitary Diverter Valves can be actuated either manually or pneumatically. The series of Sanitary Pneumatic Flow Division Valves makes major medium reaching the purpose of revising or end stop, because the good sealability and cleanability, they are extensively use different sanitary industry areas.
They can be fitted with control tops and proximity. It is widely applied to many fileds,
such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.
Sanitary Diverter Valves have two types valves, including of cut-off type and reversing types. The cut-off type can be made of two or three pipeline connector. The reversing type can be made of three to five pipeline connector. Their variety fully satisfied the demands of market.
|
Standard
|
SMS,DIN,3A
|
|
|
|
|||
|
Material Contact Parts
|
SS304/SS316L(1.4301/1.4404)
|
|
Provided with material inspection report
|
|
|||
|
Material Non-contact Parts
|
SS304(1.4301)
|
|
Provided with material inspection report
|
|
|||
|
Size
|
1/2”-4”, DN10-DN100
|
|
|
|
|||
|
Body Combination
|
20 Model,30 Model,11 Model,12Model,21A Model,22A Model,21 Model,22 Model,31Model,32 Model, 111 Model,112 Model,121 Model,122Model,211 Model,212 Model,221 Model,222 Model
|
|
|
|
|||
|
Connection
|
Butt-weld,Tri-clamp,Male Thread,Female-Male Threaded,Union,Weld-Thread,Flange
|
|
|
|
|||
|
Seal Material
|
Silicone,EPDM,FKM,Buna. All seals material comply with FDA21CFR117.2600
|
|
|
|
|||
|
Power Option
|
Manual Operated
|
|
|
|
|||
|
|
SS Pneumatic Actuator
|
|
|
|
|||
|
|
Position Sensor, C-top Controller, C-top Controller (AS-I)
|
|
|
|
|||
|
Working Pressure
|
≤10bar(145psi)
|
|
|
|
|||
|
Supply Pressure for Air Actuator
|
5~8(72.52psi~116psi)
|
|
|
|
|||
|
External Surface Treatment
|
Ra32~64uin(0.8~1.6um)
|
|
|
|
|||
|
Internal Surface Treatment
|
Ra16~32uin(0.4~0.8um)
|
|
|
|
|||
|
Internal Surface Treatment
|
Ra16~32uin (0.4~0.8um)
|
|
|
|
|||
Specification
Technical Specifications
Max. pressure: 10bar
Min. pressure: 0.2bar
Temperature range：
EPDM: -5 ~ 212°F(-20 ~ 100℃)
Silicone: -31 ~ 248°F(-35~ 120℃)
FKM:10~ 392°F(-12.2 ~ 200℃)
Other materials are Available upon request
Options
1.The gasket can be Silicone,EPDM,FKM,Buna. All seals material comply with FDA21CFR117.2600
2.Connection can be Butt-weld,Tri-clamp,Male Thread,Female-Male Threaded,Union,Weld-Thread,Flange
or others upon request.
4. Power operated: Manual,SS Pneumatic Actuator,Position Sensor, C-top Controller,C-top Controller (AS-I)
5.Pneumatic head: Normally Closed(NC)-Air to Open,Spring to Close, Normally Open(NO)-Air to Close,Spring to Open
Design Features
1.Various standards can be provided: SMS,DIN,3A
2.Available in sizes from 1/2”-4”, DN10-DN100
3.Seals comply with FDA 21CFR 177. 2600.
4.The valve body can be customized with a wide selection of different connections.
Quality requirement for compressed air used in actuator
Compressed air connection: Furnish air pipe with air connector R1/8"
Maximum particle size: 0.01mm
Maximum oil content: 0.08ppm
Dew point: 10℃ or lower below atmospheric temparture
Maximum water content: 7.5g/kg
Application
The Reverse Valves is applied to food-processing industries, especially in the beverage and dairy industries.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
If small order and choose by express , the items are packed by shrink wrap and secondly carton cases.
If heavy weight of cargos,which be packed by strongly seaworthy plywooden cases .
In order to protective items , which will be packed by safety and resistance to shock in plywooden cases .
.
