Polyacrylonitrile fiber for concrete use PAN Fiber

Polyacrylonitrile fiber for concrete use PAN Fiber

FOB Reference Price: Get Latest Price

≥500 Kilograms

US $1.8

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Material:: PAN

Color:: pale yellow

Diameter:: 13microns

Strength:: 750Mpa

Moludus:: 10Gpa

Quick Details

Place of Origin:: Anhui, China

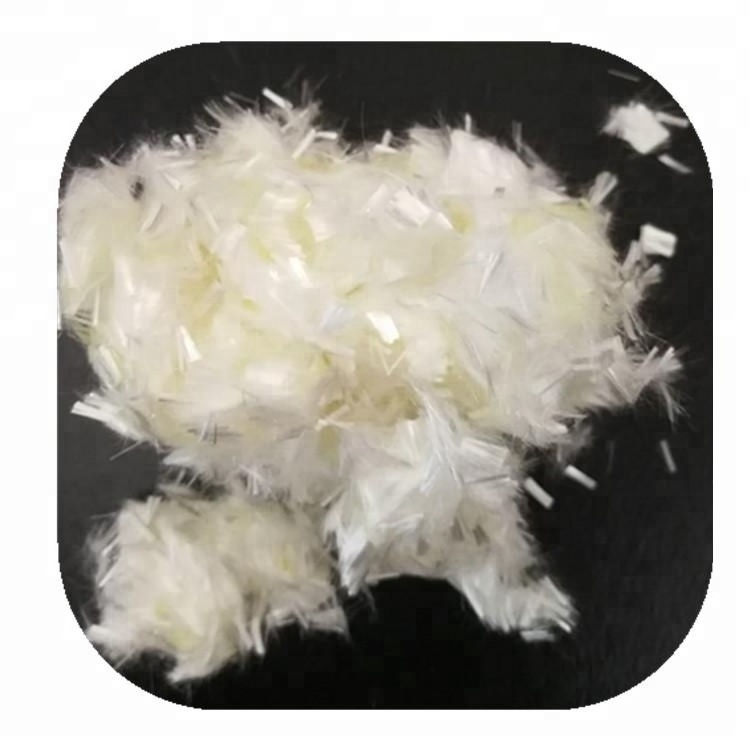

Appearance:: pale yellow short cut fiber

Use:: concrete reinforcement

Material:: PAN

Color:: pale yellow

Diameter:: 13microns

Strength:: 750Mpa

Moludus:: 10Gpa

Briture

Product Description

Polyacrylonitrile fiber is an advanced organic fiber aimed at the modern projects and constructions. It has many advantages such as large original modulus, high tensile strength, anti-acid, alkali, corrosion, good dispersing, large oil-absorbency and stable with chemicals. It also has good bearing ability in bad weather and strong light.

Product name	PAN Fiber
Diameter	13microns
Length	6mm 12mm
Tensile Strength	>750Mpa
Moludus	10Gpa
Acid & Alkali Resistance	Strong

Applying Instruction:

Compounding amount: generally, 1.0kg/m3,fiber to cement mortar are enough. Particularly it depends on the designing.The proper amount of fiber to bitumen concrete depends on the traffic flux. When the traffic flux is below 5000, the admixture quantity is 1.5~2.0kg/ton, when the flux is about 5000~60000, the quantity is about 2.5~3.0kg/ton, when the flux exceeds 60000, the quantity is about 3.5kg/ton.

Applying Field

Bridge projects: deck, expansion joint, quiver, pier column, pile foundation work, etc.

Road projects: road surface, the stop way of the bus station and toll station, etc.

Irrigation projects: port, port, road deck, channel, spillway, moraine dam channel, etc.

Construction projects: damp proof for roof, columniation, putty, industrial terrace, natatorium, etc.

Tunnel and underground projects: jet aiming support, concrete lining, timber, etc. Airport projects: runway, packing apron sleeper, etc.

Specification

Raw Material	PAN	Fiber Type	monofilament
Length (mm)	6, 12	Diameter (microns)	13
Strength (Mpa)	750 min.	Crack Elongation (%)	15-20.
Moludus (Gpa)	10min.	Density (g/cm3)	1.18
titer (dtex)	1.5+/-0.2	Acid & Alkali resistance	Strong
