Quick Details
-
Place of Origin:
-
Zhejiang,China
-
Brand Name:
-
Timetric
-
Model Number:
-
ZN63(VS1)-12
-
Colour:
-
Silver gray,Red
-
Shape:
-
Combination
-
Size:
-
customized
-
Characteristic:
-
Safe and Stable
-
Material:
-
Iron,Red copper,Epoxy resin
-
Surface Treatment:
-
Plastic spraying
-
Poles Number:
-
3
-
Type:
-
Vacuum circuit breaker
-
BCD Curve:
-
C
Quick Details
-
Breaking Capacity:
-
31.5A
-
Rated Voltage:
-
12/24KV
-
Rated Current:
-
630A, 630A,1250A,2000A,3150A,4000A
-
Place of Origin:
-
Zhejiang,China
-
Brand Name:
-
Timetric
-
Model Number:
-
ZN63(VS1)-12
-
Colour:
-
Silver gray,Red
-
Shape:
-
Combination
-
Size:
-
customized
-
Characteristic:
-
Safe and Stable
-
Material:
-
Iron,Red copper,Epoxy resin
-
Surface Treatment:
-
Plastic spraying
-
Poles Number:
-
3
-
Type:
-
Vacuum circuit breaker
-
BCD Curve:
-
C
|
Item
|
Description
|
|
Unit
|
Data
|
|
|
1
|
Rated voltage
|
|
KV
|
12
|
|
|
2
|
Max. voltage
|
|
KV
|
12
|
|
|
3
|
Rated current
|
|
A
|
630/1250/2500/3150/4000/5000
|
|
|
4
|
Rated short circuit breaking current
|
|
KA
|
20/25/31.5/40
|
|
|
5
|
Rated short circuit making current
|
|
KA
|
50/63/80
|
|
|
6
|
Rated peak withstand current
|
|
KA
|
50/63/80
|
|
|
7
|
4S Rated withstand current
|
|
KA
|
20/25/31.5
|
|
|
8
|
Rated insulation level |
Power frequency voltage(when losing a circuit)
|
KV
|
Dreaker 48
|
|
|
|
|
Impulse withstand voltage(when losing a circuit)
|
|
Dreaker 85
|
|
|
9
|
Rated operating sequence
|
|
|
OC-0.3s-CO-180S-CO
|
|
|
10
|
Mechanical life
|
|
Times
|
20000
|
|
|
11
|
Rated short circuit current breaking time
|
|
Times
|
274
|
|
|
12
|
Rated close brake voltage of operating machnie
|
|
V
|
110,220
|
|
|
13
|
Rated break brake voltage of operating machnie
|
|
V
|
110,220
|
|
|
14
|
Contact stroke
|
|
mm
|
13±1
|
|
|
15
|
Exceed range(the compress length of contact sping)
|
|
mm
|
3.5±0.5
|
|
|
16
|
Different period of three-phase break and close break
|
|
ms
|
≤2
|
|
|
17
|
The jump time of contact close break
|
|
ms
|
≤2
|
|
|
18
|
Average break speed
|
|
m/s
|
1.1~1.7
|
|
|
19
|
Average closing speed
|
|
m/s
|
0.6~1.1
|
|
|
20
|
Opening time |
Ubder max.operating voltage
|
S
|
≤0.05
|
|
|
|
|
Under min.operating voltage
|
|
≤0.08
|
|
|
21
|
Closing time
|
|
s
|
0.1
|
|
|
22
|
Resistance of each phase main loop
|
|
μΩ
|
630≤50 1250≤45/ 1600-2500≤40
|
|
|
23
|
Contacts limit ersion
|
|
mm
|
3
|
|
General description：

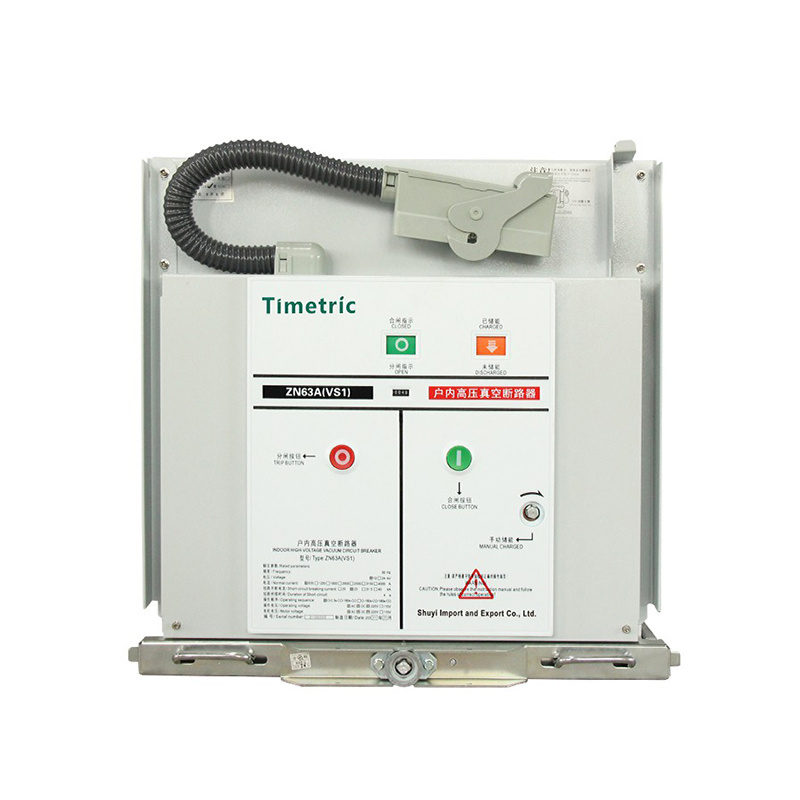

ZN63A(VS1)-12 is a HV indoor vacuum circuit breaker working as a protection and control unit of power grid equipment and industrial electric equipment in power system of rated voltage from 7.2KV to 12KV.
It meets the requirements of GB/T1984-2014 (AC HV circuit breaker) and JB355-1996 (3.6KV-40.5KV indoor AC HV vacuum circuit breaker). It can be used in switchgears of KYN28(GZS1), XGN and GG-1A.
Operating conditions
Temperature：-10℃～+40℃.
Relative humidity：Daily mean relative humidity not more than 95%; monthly mean relative humidity not more than 90%.
Seismic intensity：Not more than Level 8.
Saturated vapor pressure: daily mean pressure not more than 2.2kPa；monthly mean pressure not more than 1.8Kpa.
Altitude：≤1000 m（Otherwise in special cases）.
This device should be installed in a place free of fire, explosion, severe dirt, chemical erosion and severe vibration.
This model integrates operation mechanism with the circuit breaker, well arranged, looking beautiful and compact.
This model can be operated frequently, able to break and reclose fast many times.
Two types of installations (fixed or moved) meet the demands of different switchgears.
Timetric is located in Yueqing City, Zhejiang Province, the capital of China's electrical appliances. We are a high-tech enterprise integrating R&D, manufacturing and selling products all over the world.
Export products: 7.2KV to 40.5KV switch cabinets and their components, such as high or low voltage switch control cabinets, grounding switches, interlocking devices, insulators, chassis vehicles, vacuum circuit breakers, etc.
Timetric pays attention to science and technology investment, talent training, and introduces internationally advanced sheet metal flexible production lines, CNC laser cutting equipment, and robot automatic welding equipment to maximize the production and technical requirements of customers for non-standard products.
In the future, Timetric will continue to update equipment, cultivate talents, devote itself to the development and innovation of the electrical industry. we strive to become an internationally renowned brand.
Corporate culture:
Development and innovation is the foundation of Timetric
Quality first is the life of Timetric
Standardized management is the foundation of Timetric
Customer satisfaction is the pursuit of Timetric
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory with more than 20 years experience in this field.
Q: Can I get a sample before the bulk order?
A: Yes, we welcome sample order to test and check quality.Mixed samples are
acceptable.
Q: Can we print our logo/ company name on products?
A: Yes, of course, we accept OEM, then need you to provide brand authorization to us
Q:Do you accept product customization?
A:Yes, of course, please provide specific drawings or parameters, we will quote you after evaluation
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days.if the goods are not in stock, it is according to quantity
Q:Do your company have a website ?
A:Please check :www.timelyele.com
Q: How to solve the quality problems after sales?
A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.
Q: What is your terms of payment ?
A: Payment=6000 USD, 30% T/T in advance ,balance before shippment.
