Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Telebahn
-
Model Number:
-
BT 22010
-
Class:
-
T2+T3
-
In(8/20μs):
-
5kA(L+N-PE)
-
Imax(8/20μs):
-
10kA(L+N-PE)
-
Net weight:
-
62g
-
Gross weight:
-
73g
-
Operating temperature range:
-
-25°C...+40°C
-
Combination wave:
-
10kV(L-N) 20kV(L+N-PE)
-
Terminal wires:
-
1m㎡,length 100mm
-
Degree of protection:
-
IP67
-
Approvals:
-
CE(LVD,EMC); RoHS
Quick Details
-
Type:
-
T3
-
Rated Voltage:
-
390VAC
-
Max Discharge current:
-
10000 A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Telebahn
-
Model Number:
-
BT 22010
-
Class:
-
T2+T3
-
In(8/20μs):
-
5kA(L+N-PE)
-
Imax(8/20μs):
-
10kA(L+N-PE)
-
Net weight:
-
62g
-
Gross weight:
-
73g
-
Operating temperature range:
-
-25°C...+40°C
-
Combination wave:
-
10kV(L-N) 20kV(L+N-PE)
-
Terminal wires:
-
1m㎡,length 100mm
-
Degree of protection:
-
IP67
-
Approvals:
-
CE(LVD,EMC); RoHS
Summary

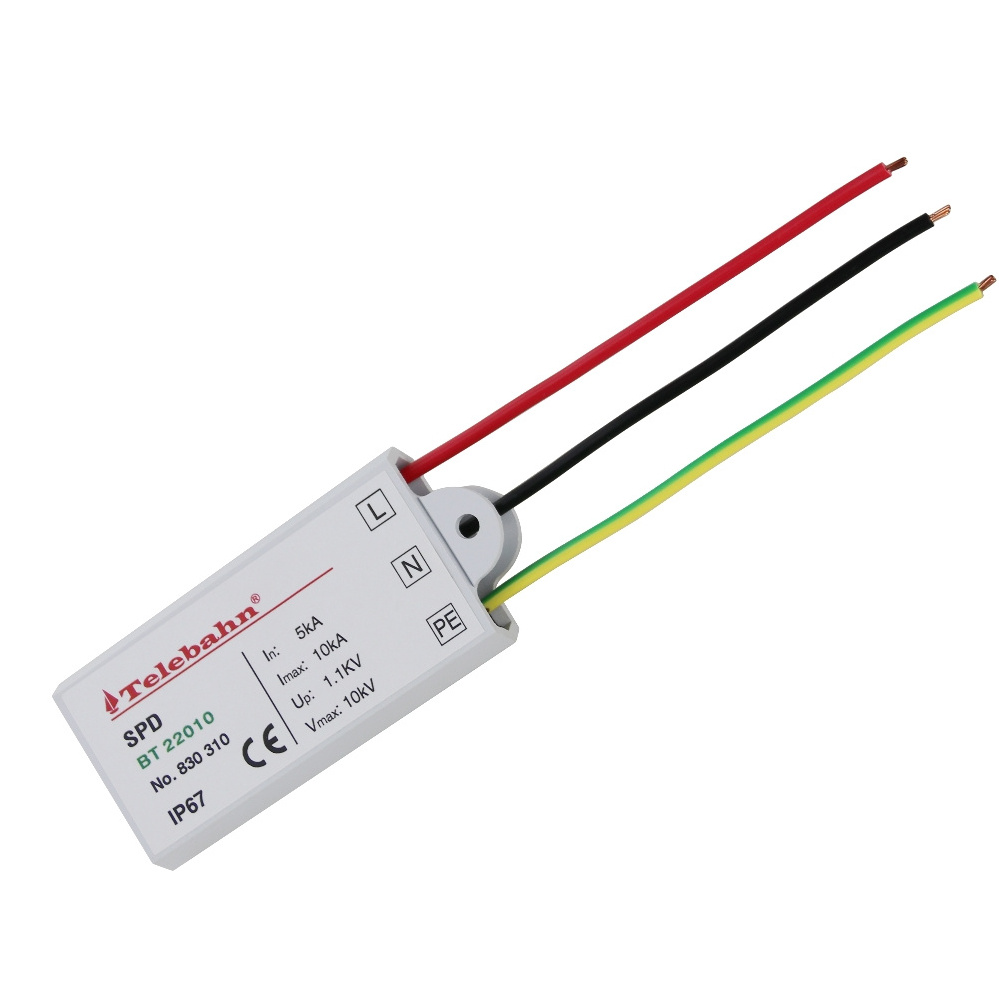

Used for terminal power source fine protection.Can be soldered with parallel connection on to the external power source of electronic equipment to protect from surges.Designed according to IEC61643-11;EN61643-11;GB/T18802.11 standard.Applied in SPD classIII (ClassD)for fine protection of electronic equipment.Designed for protecting LED Driver and could be connected perfectly with its input port,sealed enclosure,waterproof and dustproof, IP67 protection grade,belongs to ClassII+III power SPD. This SPD use common mode,differential mode,full protection with leakage current and cut the the over current capabilities.
Hightlight Features
Single-pole surge arrester, High discharge capacity.
Low voltage protection level,Quick response.
IP67 protection level.
Every pathway consists of same elements.
Between line and line/between lines and ground can protect as the same level.
Application
Applicable for all installation systems for LED Driver,CNC turning machine, general machinery.
Application environment
Temperature:-25°C...+40°C
Relative humidity:≤95%(25°C)
Technical Data
|
Type |
BT 22010 |
|
Nominal voltage [U N ] |
110V-277V AC |
|
Rated voltage (max. continuous d.c. voltage) [Uc] |
390V AC |
|
Nominal discharge current(8/20)(l n ) |
5kA(L+N-PE) |
|
Max.discharge current(8/20)(l max) |
10kA(L+N-PE) |
|
Combination wave(maximun discharge voltage)(Uoc/Vn) |
10kV(L-N) 20kV(L+N-PE)
|
|
Voltage protection level(Up) |
≤1.1kV |
|
Reponse time(t A ) |
≤25ns |
|
Max. backup fuse |
16A gL/gG |
|
Short withstand capability at max. backup fuse |
6kA ms |
|
Degree of protection provided by the enclosure |
IP67 |
| Operating temperature range |
-25°C...+40°C |
|
Terminal wires |
1mm 2 ,length 100mm |
|
Enclosure material |
Purple thermoplastic, UL94-V0 |
|
Test standards |
IEC61643-11; GB/T 18802.11; YD/T 1235.1 |
|
Certification |
CE(LVD,EMC); RoHS |
| Ordering information | |
| Type | BT 22010 |
| Oder number | 830310 |
| Net weight | 62g |
| Gross weight | 73g |
| Dimension | 81x37.6x13.5mm |
| Packing size | 100x70x18mm |
