Quick Details
-
Standard:
-
ANSI C136.10
-
Certificate:
-
CE
-
Rated Volts:
-
85-305V
-
Rated Load:
-
1000W/1800VA
-
Operating temperature:
-
-40 to 70 degree
-
Frequency:
-
50/60Hz
-
IP grade:
-
IP66/IP67
-
Certification:
-
CE ANSI
Quick Details
-
Mounting Type:
-
TWIST LOCK
-
Description:
-
street light controller
-
Model Number:
-
OPT-06
-
Standard:
-
ANSI C136.10
-
Certificate:
-
CE
-
Rated Volts:
-
85-305V
-
Rated Load:
-
1000W/1800VA
-
Operating temperature:
-
-40 to 70 degree
-
Frequency:
-
50/60Hz
-
IP grade:
-
IP66/IP67
-
Certification:
-
CE ANSI
Products Description

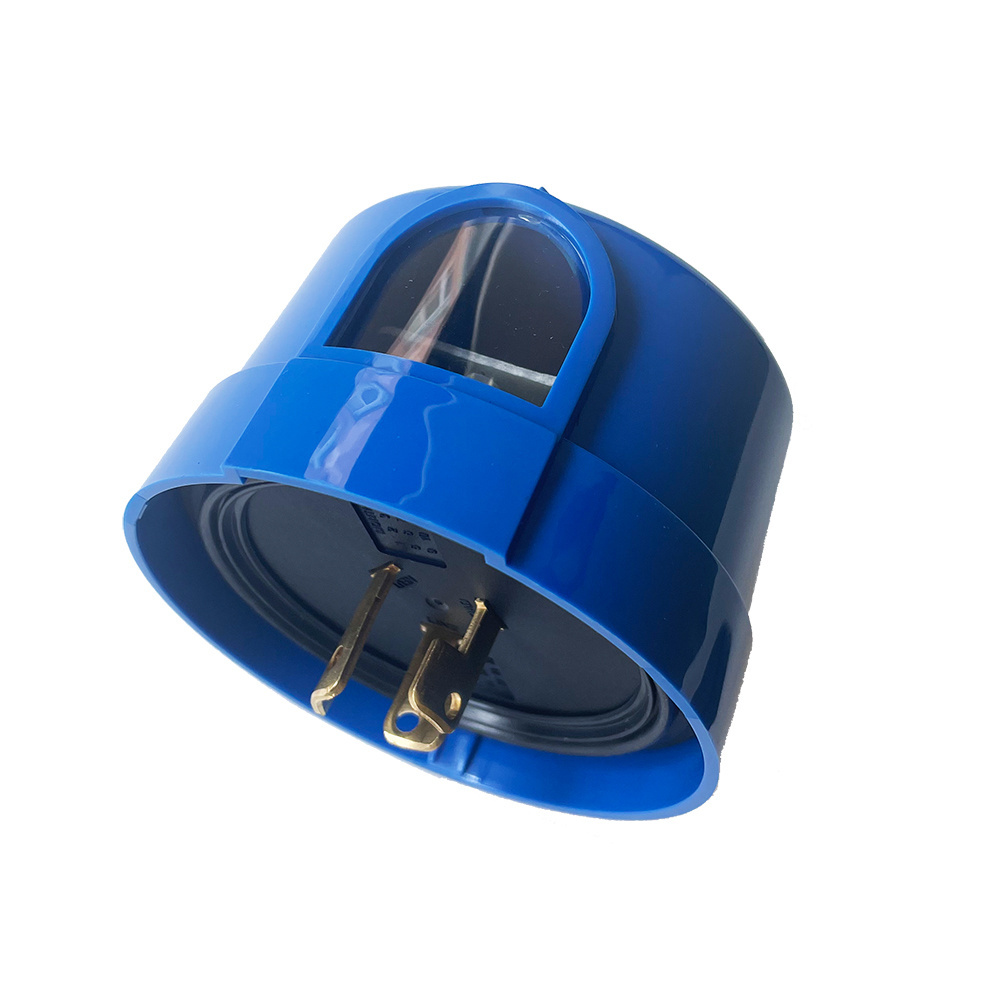

The photocontroller can turn on and off light automatically according to ambient light; Our product is widely used on street
lighting, garden lighting, area lighting, other outdoor lighting etc.
This product is designed with electronic circuits with sensor of photodiode and a surge arrester (MOV) is provided. Its quicker response with time delay of 3-10 seconds offers easy to test feature. This model photocontrol can provide a wide voltage range for customer appliations under almost power supplies.
lighting, garden lighting, area lighting, other outdoor lighting etc.
This product is designed with electronic circuits with sensor of photodiode and a surge arrester (MOV) is provided. Its quicker response with time delay of 3-10 seconds offers easy to test feature. This model photocontrol can provide a wide voltage range for customer appliations under almost power supplies.
Details Images
Product Specification
|
Model
|
OPT-06
|
|
Standard
|
ANSI C136.10 & UL773
|
|
Controller type
|
Electronic
|
|
Certificate
|
CE, ROHS
|
|
Voltage Range
|
85-305V
|
|
Rated Load
|
1000W/1800VA
|
|
Switch
|
>10000 ON/OFF Operations at Rated load
|
|
Ambient Temperature
|
-40℃ -70℃
|
|
Turn on light levels
|
10-16 Lux on, 40 Lux off
|
|
Time Delay
|
3-10 seconds
|
|
Cover
|
Anti-UV Impact
Resistance Polycarbonate (PC) |
|
Base
|
High Temperature Resistance
Polybutylene Terephthalate(PBT) |
|
Ingress Protection
|
IP66/IP67
|
