Quick Details
-
Brand Name:
-
3bd micron powder
-
Model Number:
-
synthetic micron powder
-
Use:
-
making resin bond or vitrified bond
-
Product name:
-
High strength and toughness properties Nano Diamond Powder
-
color:
-
yellow and green
-
Usage:
-
making resin bond or vitrified bond grinding apparatus to processing
-
Quality grade:
-
RVD green, RVD yellow,High grade RVD,RVE,RVG
-
shape:
-
irregular crystal shape
-
Application:
-
Polishing Workpiece
-
Size:
-
Customer Size
-
Certificate:
-
ISO9001
-
Payment Term:
-
T/T
Quick Details
-
Type:
-
blasting media
-
Abrasive Grain Sizes:
-
Requirment
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
3bd micron powder
-
Model Number:
-
synthetic micron powder
-
Use:
-
making resin bond or vitrified bond
-
Product name:
-
High strength and toughness properties Nano Diamond Powder
-
color:
-
yellow and green
-
Usage:
-
making resin bond or vitrified bond grinding apparatus to processing
-
Quality grade:
-
RVD green, RVD yellow,High grade RVD,RVE,RVG
-
shape:
-
irregular crystal shape
-
Application:
-
Polishing Workpiece
-
Size:
-
Customer Size
-
Certificate:
-
ISO9001
-
Payment Term:
-
T/T

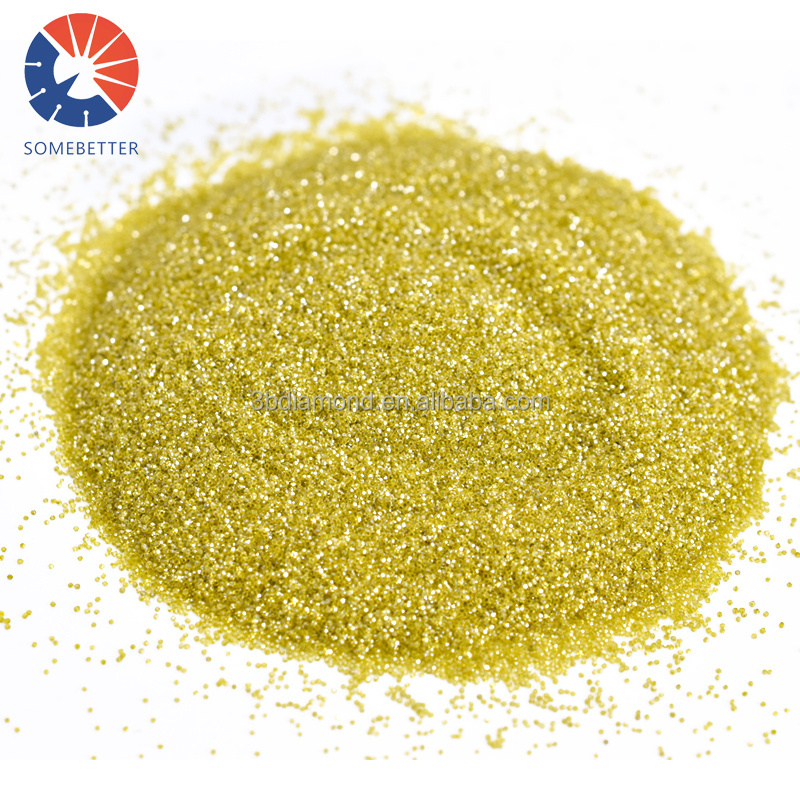

High strength and toughness properties Nano Diamond Powder for polishing
What is Micron Powder ?
♥
It is the fine size of the synthetic diamond powder,widely used in polishing,finishing,super finishing and lapping powder for sapphire polishing,gemstone polishing,quartz polishing,glass,natural diamond,ceramic polishing,eletronic components and other hard materials.
♥
Diamond micron powder also can be made into diamond polishing disc,diamond paste,PCD,PDC and so on.
Where do Micron Powder Use?
♥ Fishing &Polishing all kinds of hard brittle materials
♥
Processing Ferrous Materials
♥
Processing Tungsten Carbide,PCD DIE,Stone Materials,Stone Materials,Ceramics,gems&Opital glass,PCD..
♥
Machinery,electronics,aerospace,aviation,and high-tech areas
Why Choose Micron Powder?
♥
High strength,pure quality diamond as raw materials
♥
Use RVD Diamond as raw materials,good self-sharpness
♥
Complete specification,perfect thermal stability,epigranular
♥
Low content of impurities,perfect shapes and surface performance
♥
Powderful grinding force,high wear resisitance and good lubricity PTFE matrix
♥
Purity is more than 99%,which has reached the international level
The size we can offer ⇒
Metal bond micron powder
|
|
DM-M: Product description: Using high strength, pure quality diamond as raw materials; epigranular size, tidy shape; good purity, high hardness, great abrasion resistance; also have an excellent thermal conductivity,electric insulativity, pervious to light quality and corrosion resistance. |
|
Applications: For machinery, electronics, aerospace, aviation, optical and other high-tech areas; also is widely used in finishing, grinding, polishing metal, ceramic workpieces. |
Resin bond diamond micron powder
|
|
DM-R Product description : Using RVD diamond as raw materials; appearing sharp-edged of cutting blade when being crashed under certain pressure, have a good self sharpness performance;Irregular particle surface and shape-edged of corner cut. |
|
Applications: Applied to processing tungsten carbide, PCD die, stone materials, ceramics, gems and optical glass, PCD workpiece, etc. |
CBN micron powder
|
|
CBNM-A: Product description: Amber-colored cubic boron nitride micro powder. CBN micro powder with complete specification, high purity, predominant thermal stability, good self-sharp ability, high grinding efficiency. By using this material, the users will have better quality tools as well as precise and smooth working surface. |
|
Applications: Suitable for processing ferrous materials. |
|
|
CBNM-B: Product description: Black cubic boron nitride micro powder. Grain sizes have a narrow range, the coefficient of movement is small,also it has the same great characteristics with the amber-colored cubic boron nitride micro powder. |
|
Applications : Also suitable for processing ferrous materials. |
Nanoscale micron powder
Main Specification :
|
C ommon |
M0-0.05 |
M0-0.10 |
M0-0.15 |
M0-0.20 |
M0-0.25 |
M0-0.50 |
|
|
S pecial |
M0-0.06 |
M0-0.07 |
M0-0.08 |
M0-0.09 |
M0-0.125 |
M0.20-0.40 |
M0.40-0.60 |
We can precisely control of median particle diameter(D50), according to customer requirements.
|
|
EXP-M: Product description: High toughness, its size is under 10 micron, product purity is more than 99%,which has reached the international level. The micro powder in current domestic market can’t compared with this high-tech quality diamond powder. |
|
Applications : This product superiority, makes it especially suitable for finishing and polishing all kinds of hard brittle materials, for example, cemented carbide, fine ceramics, precious gems and granite. Work efficiency is equal or greater than artificial single crystal and natural monocrystalline diamond. |
Type of Micron Powder
What is RVD Green Micron?(For Monocrystalline diamond)
It's made from RVD green,it is lower than RVD Yellow in quality
What is RVD Yellow Micron ? (For Monocrystalline diamond)
It's made from RVD Yellow,has the very feature of perfect work efficiency
What is High Grade RVD? (For Monocrystalline diamond)
It's made from High Grade Diamond Grits,the highest Grade RVD Quality
What is RVG Diamond Micron? (For Polycrystalline diamond)
It's made from RVG Diamond Grits,it's black,low intensity ,good self-sharpness,applied to
high precessing efficiency.
What is Boron Doped Diamond Micron?(For Boron Doped diamond)
It's made from Boron Doped Diamond Grits,has the feature of regular diamond,low resistance,higher oxidating
