Quick Details
-
Filling Accuracy:
-
±0.01ml, +/-0.01ml
-
Voltage:
-
100 V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Green Time
-
Dimension(L*W*H):
-
44X28X44 cm
-
Weight:
-
30 KG
-
Keywords:
-
0.5ml 1ml 2ml 510 thread battery pen thick oil filling machine
-
Product name:
-
GT10 filling machine
-
Machine type:
-
Oil Filling machine
-
Suitable for:
-
Oil, liquid,etc
-
Function:
-
Semi-automatic filling machine
-
Usage:
-
Beverage Filling
-
Filling speed:
-
1200 pcs/hour
-
Filling range:
-
0.5ml - 10ml
-
Control:
-
Button+Touch Screen
Quick Details
-
Machinery Capacity:
-
1200pcs/h
-
Packaging Material:
-
Plastic, Paper, Wood
-
Filling Material:
-
Water, Oil, Juice
-
Filling Accuracy:
-
±0.01ml, +/-0.01ml
-
Voltage:
-
100 V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Green Time
-
Dimension(L*W*H):
-
44X28X44 cm
-
Weight:
-
30 KG
-
Keywords:
-
0.5ml 1ml 2ml 510 thread battery pen thick oil filling machine
-
Product name:
-
GT10 filling machine
-
Machine type:
-
Oil Filling machine
-
Suitable for:
-
Oil, liquid,etc
-
Function:
-
Semi-automatic filling machine
-
Usage:
-
Beverage Filling
-
Filling speed:
-
1200 pcs/hour
-
Filling range:
-
0.5ml - 10ml
-
Control:
-
Button+Touch Screen
Portable 0.5ml 1ml 2ml 510 thread disposable battery pen oil thick oil filling machine
| Machine Name |
GT10 Flex Machine
|
Amount of oiling
|
0.5-10ml
|
|
Output
|
800-1500 pcs / hour
|
Oil filling accuracy
|
±0.01ml
|
|
Control
|
PLC, Pedal
|
Power supply
|
AC110V 200W |
|
Dimensions weight
|
44cm (L) * 44cm (H) * 28cm (W), about 22.5kg
|
||
|
Drive mode
|
No air compressor needed | ||
|
Panel control
|
Touch screen, operation button, emergency stop
|
||
|
Interface control
|
Position adjustment, Filling amount adjustment, Filling speed adjustment,
|
||
| Warranty of core components | 1 Year | ||
| After Warranty Service | Video technical support or on-site guidance | ||
| Machinery Test Report | Provided | ||
| Application | Pods, disposable pen etc | ||
|
What is GT10 Flex Filling Machine Hand Filler?
Does The Hand Filler with heat?
Yes, the hand filler is 25-90 celsius, and it can keep oil warm to flow well!
Can machine fill very heavy oil?
1, Yes, machine can fill very thick oil! There is temperature control system;
2, The Oil basin is heated;
3, The hand hose and injector pump are heated when oil flows to keep oil warm
|
|
|
|

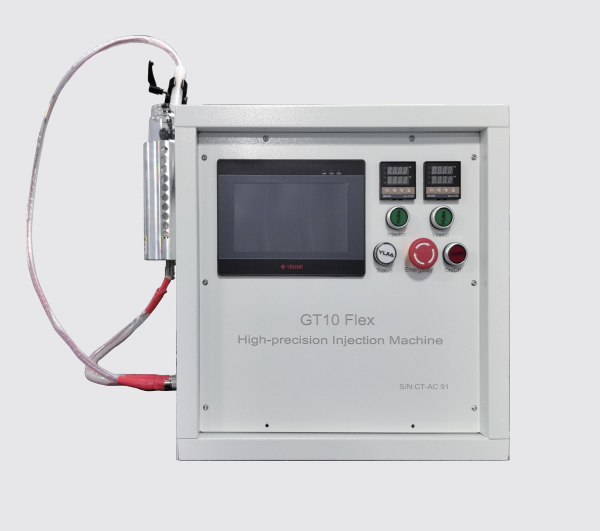

No. Description
1 -----Touch screen
2 -----Temperature controller for injector
3 -----Temperature controller for vessel
4 -----Power button for temperature controller for injector
5 -----Power button for temperature controller for vessel
6-----Working status LED
7-----Emergency Key
8-----Main power button |
Customer Usage
|
|
OEM/ODM service:
1,Customize your logo in machine or packaging etc;
2,Function design, redesign the products from the appearance, function and inner structure.
Quality Assurance:
1,Strictly quality control system, ensure the best quality from manufacturing to delivery;
2,Products have passed CE RoHS FCC certifications, and are greatly appreciated in a variety of markets all
over the world
Fast Delivery:
1,Sample order could be shipped in 3-6 days;
2,Bulk order will be shipped in 10-15 days.
FAQ
Q1: Do you have warranty on machines?
A1: Yes, our machine have 1 year warranty, 7*24 hours Online service,on-site guidance support , welcome for any question;
Q2: What is your delivery time?
A2: Usually 7 days to complete the machine, 10-12 days for shipping
Q3: What is your payment term?
A3: 30%T/T in advance as down payment, Balance should be paid before shipping.
For more details, please contact
