Quick Details
-
Brand Name:
-
Unionwell
-
Model Number:
-
GPS100
-
Max. Current:
-
5A
-
Max. Working Pressure:
-
125V
-
Product Name:
-
Pressure Control Switch
-
Operating pressure range:
-
25-1500Pa
-
Switching pressure range:
-
10Pa Min
-
Function/circuit:
-
SPDT, SPST-NC, SPST-NO
-
Set point range:
-
10-1500Pa
-
Model:
-
OEM
-
Company assurance system:
-
ISO9001 & TS16949
-
Environmental compliance:
-
RoHS, Reach
-
switch rating:
-
0.1A 125/250VAC, 3A 125/250VAC , 5A 125/250VAC , 16A 125 /250VAC
-
Application:
-
Air Compressor Parts
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Unionwell
-
Model Number:
-
GPS100
-
Max. Current:
-
5A
-
Max. Working Pressure:
-
125V
-
Product Name:
-
Pressure Control Switch
-
Operating pressure range:
-
25-1500Pa
-
Switching pressure range:
-
10Pa Min
-
Function/circuit:
-
SPDT, SPST-NC, SPST-NO
-
Set point range:
-
10-1500Pa
-
Model:
-
OEM
-
Company assurance system:
-
ISO9001 & TS16949
-
Environmental compliance:
-
RoHS, Reach
-
switch rating:
-
0.1A 125/250VAC, 3A 125/250VAC , 5A 125/250VAC , 16A 125 /250VAC
-
Application:
-
Air Compressor Parts

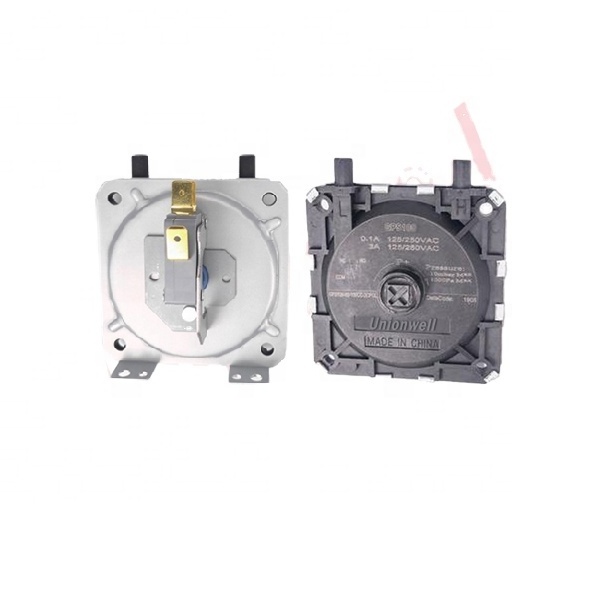

Unionwell competitive price GPS100 digital 50/60 pa hvac pressure switch for air compressor
Product images:
Drawings:
Parameters:
Specifications
- Set point range:10-1500Pa
- Operating pressure range:25-1500Pa
- Switching pressure range : 10Pa Min
- Fixed set-point calibrated in factory
Application
- GPS100 series pressure switches are especially designed for high volum OEM markert.
- Typical applications include boilers,hot water heaters,HVAC and other industrial equipments.
- These switches could be customized set points and can be used to sense positive,negative or differential air pressure .
- A sensitive high reliable snap action switch is used as the main switching element.
- T he snap action switch can provide with a high switching capability up to 16A 125/250VAC.
|
No. |
Greetech Product |
Inner Box |
Shipper Carton |
MPQ |
||||||
|
Inner box size(mm) |
Q'ty/(pcs) |
Total GW(kgs) |
Carton size(mm) |
Q'ty/ctn
|
Total GW(kgs) |
MOQ (pcs) |
L/T (Days) |
Total GW(kgs) |
||
|
1 |
G3 series(terminal type) |
310x215x135 |
3,360 |
3.9 |
440x325x300 |
13,440 |
15.3 |
1,000 |
15 |
1.2 |
|
2 |
G5 series |
310x250x120 |
600 |
5.5 |
330x270x270 |
1,200 |
10.8 |
1,000 |
15 |
9.0 |
|
3 |
G5W11 series |
310x215x135 |
200 |
4.8 |
440x325x300 |
800 |
19.2 |
100 |
10 |
2.5 |
|
4 |
G6 series |
290x192x40 |
500 |
1.3 |
400x305x220 |
5,000 |
12.5 |
1,000 |
15 |
2.7 |
|
5 |
G9 series(terminal type) |
290x192x40 |
500 |
1.3 |
400x305x220 |
5,000 |
12.5 |
1,000 |
15 |
2.7 |
|
6 |
G91 series |
290x192x40 |
500 |
1.3 |
400x305x220 |
5,000 |
12.5 |
1,000 |
15 |
2.7 |
|
7 |
G10 series |
290x192x40 |
600 |
1.3 |
400x305x220 |
6,000 |
12.5 |
1,000 |
15 |
2.7 |
|
8 |
GT02 series |
210x155x55 |
300 |
1.2 |
440x325x285 |
6,000 |
12.0 |
6,000 |
15 |
12.0 |
|
9 |
GPS100 series |
/ |
/ |
/ |
330*270*270 |
60 |
6.1 |
60 |
10 |
6.1 |
|
10 |
Switch with wire leads |
310x215x135 |
100 |
1.8 |
440x325x300 |
800 |
14.5 |
800 |
20 |
14.5 |
