Products Description

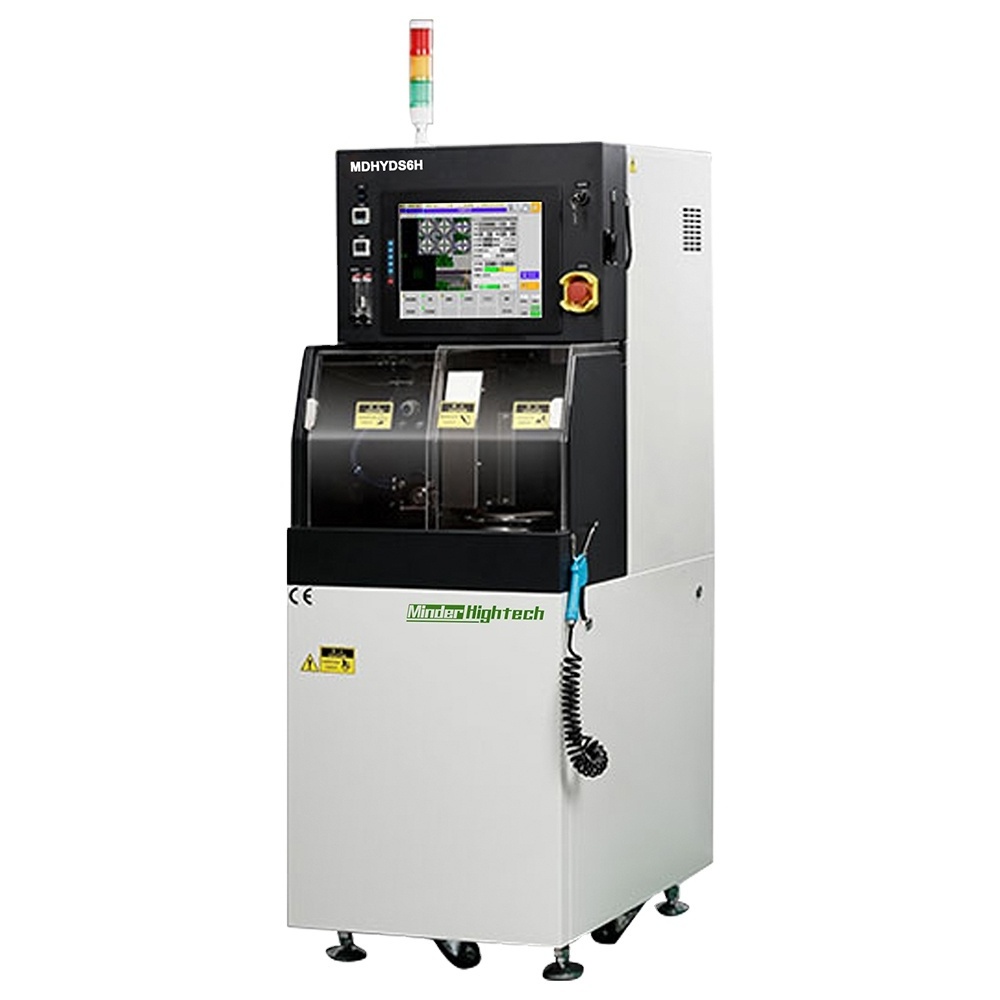

MDHYDS6H - precision dicing machine
MDHYDS6H
precision scribing machine is equipped with imported high-power DC spindle; θ-axis imported DD motor drive; imported high-precision lead screw and guide rail, higher movement accuracy; double lens alignment accuracy is higher; software functions are further strengthened, and the degree of automation is significantly improved .
Specification
|
Configuration and performance
|
Processing size
|
φ160mm or φ150mm
|
|
|
Groove depth
|
≦4mm or customized
|
|
|
Flatness of worktable
|
±0.005mm/150mm
|
|
|
Alignment system
|
Dual lens, straight light﹢ring light
|
|
Spindle
|
range of rotation
|
10000～50000rpm
|
|
|
Output Power
|
DC 1.5KW (2.4KW optional)
|
|
X axis
|
Drive way
|
servo motor
|
|
|
Workbench left and right stroke
|
240mm
|
|
|
Stroke resolution
|
0.001mm
|
|
|
Speed setting range
|
0.1～500mm/s
|
|
Y axis
|
Drive way
|
Stepping motor ﹢ grating closed loop control system
|
|
|
Spindle back and forth stroke
|
170mm
|
|
|
Stroke resolution
|
0.0001mm
|
|
|
Single-step positioning accuracy
|
≦0.002mm/5mm
|
|
|
Full positioning accuracy
|
≦0.004mm/170mm
|
|
Z axis
|
Drive way
|
Stepper motor
|
|
|
Spindle up and down stroke
|
30mm
|
|
|
Stroke resolution
|
0.0001mm
|
|
|
Repeatability
|
0.001mm
|
|
θ axis
|
Drive way
|
DD motor
|
|
|
Angle range
|
380º
|
|
|
Angle resolution
|
0.0002º
|
|
Basic specifications
|
power supply
|
Three-phase, AC380±5%, 3.0kVA
|
|
|
power consumption
|
0.6KW during processing (reference value)
|
|
|
|
When warming up 0.4KW (reference value)
|
|
|
Compressed air
|
Pressure 0.5～0.6Mpa, maximum consumption 220L/min
|
|
|
Cutting water
|
Pressure 0.2～0.3Mpa, maximum consumption 3.5L/min
|
|
|
Cooling water
|
Pressure 0.2～0.3Mpa, maximum consumption 1.5L/min
|
|
|
Exhaust volume
|
1.5m³/min(ANR)
|
|
|
Dimensions W×D×H
|
580mm×850mm×1650mm
|
|
|
weight
|
500kg
|
Detail
Features:
√ Standard non-contact height measurement function (NCS)
√ Standard tool mark detection function
√ Optional blade breakage detection function (BBD)
√ Optional workpiece shape detection function
√ Optional data scanning input function
√ Standard tool mark detection function
√ Optional blade breakage detection function (BBD)
√ Optional workpiece shape detection function
√ Optional data scanning input function
Conditions of Use:
1. Please set the machine in an environment of 20~25ºC (the fluctuation range is controlled within ±1ºC); the indoor humidity should be 40%~60%, keep constant without condensation.
2. Please use clean compressed air with atmospheric pressure dew point below -15ºC, residual oil content of 0.1ppm and filtration degree above 0.01um/99.5.
3. Please control the water temperature of the cutting water to room temperature 2ºC (fluctuation range within ±1ºC), and control the cooling water temperature to be the same as room temperature (fluctuation range control within ±1ºC).
4. Please avoid the device from gravitational impact and any external vibration threats. In addition, please do not install the equipment near blowers, vents, devices that generate high temperatures, and devices that generate oil.
5. Please install this equipment on a waterproof floor and a place with drainage treatment.
6. Please operate strictly in accordance with the company's product instruction manual.
2. Please use clean compressed air with atmospheric pressure dew point below -15ºC, residual oil content of 0.1ppm and filtration degree above 0.01um/99.5.
3. Please control the water temperature of the cutting water to room temperature 2ºC (fluctuation range within ±1ºC), and control the cooling water temperature to be the same as room temperature (fluctuation range control within ±1ºC).
4. Please avoid the device from gravitational impact and any external vibration threats. In addition, please do not install the equipment near blowers, vents, devices that generate high temperatures, and devices that generate oil.
5. Please install this equipment on a waterproof floor and a place with drainage treatment.
6. Please operate strictly in accordance with the company's product instruction manual.
Application areas:
diodes, triodes, LED packaging, NTC, MEMS, IC, photovoltaics, medical devices, scintillation crystals
Precision cutting materials
silicon wafer, PCB board, EMC, ceramics, glass, quartz, gallium arsenide, lithium niobate, sapphire, crystal
Auto focus function:
Through the visual algorithm, coordinated with the motion control, the lens can be automatically raised and lowered, and the clear position of the workpiece image can be quickly obtained.
