Quick Details
-
Model Number:
-
Custom Tool and Mold Making
-
Name:
-

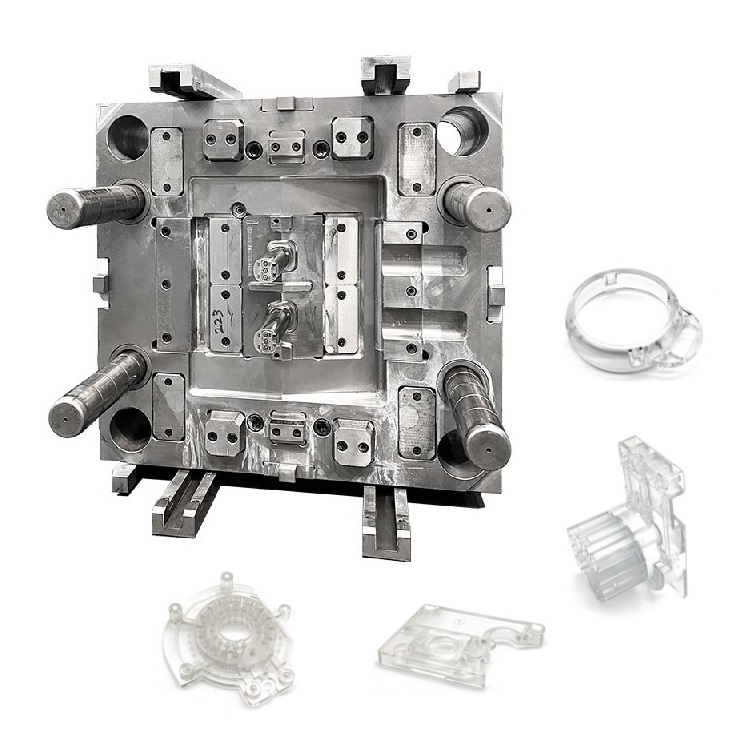

Plastic Injection Mold
-
Material:
-
P20, NAK80, H13, 8407, 2344, 718H, S316H, SKD61, etc.
-
Cavity:
-
Single Cavity\ Multiple Cavity
-
Runner:
-
Hot Runner\ Cold Runner
-
Design software:
-
UG PROE CATIA SOLIDWORK CAD
-
Drawing Format:
-
2D/(PDF/CAD)3D(IGES/STEP)
-
Surface finish:
-
Follow Product Specification
-
Logo:
-
Customer Logo
-
Feature:
-
High Precision and Stability
-
Service:
-
Local Injection and Exported Mold
Quick Details
-
Shaping Mode:
-
Plastic Injection Mould
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GEMS-MFG
-
Model Number:
-
Custom Tool and Mold Making
-
Name:
-
Plastic Injection Mold
-
Material:
-
P20, NAK80, H13, 8407, 2344, 718H, S316H, SKD61, etc.
-
Cavity:
-
Single Cavity\ Multiple Cavity
-
Runner:
-
Hot Runner\ Cold Runner
-
Design software:
-
UG PROE CATIA SOLIDWORK CAD
-
Drawing Format:
-
2D/(PDF/CAD)3D(IGES/STEP)
-
Surface finish:
-
Follow Product Specification
-
Logo:
-
Customer Logo
-
Feature:
-
High Precision and Stability
-
Service:
-
Local Injection and Exported Mold
Product Description
|
Company Name
|
GEMS Manufacturing Ltd
|
|
Manufacturing
|
Tool and Mold Making
|
|
Application
|
Plastic Mold, Silicone Mold, Die Casting Tool and Sheet Metal Stamping Tool, etc.
|
|
Design Software
|
UG, ProE, AutoCAD, Solidworks, etc.
|
|
Raw Material
|
P20, NAK80, H13, 8407, 2344, 718H, S316H, SKD61, etc.
|
|
Steel Hardness
|
20~60 HRC
|
|
Inspection Tool
|
CMM, VMS, Caliper, High Gauge, Pin Gauge, Dial Indicator, Micrometer, Ruler, Tape, Tester, etc
|
|
Mold Base
|
LKM, HASCO, DME, etc.
|
|
Runner System
|
Cold runner system and Hot runner system
|
|
Cavity Number
|
Single-cavity or Multi-cavities
(As per customer’s requirement and part structure.) |
|
Ejection Techniques
|
Gas assisted, Pin ejection, Sleeve ejection, Bar ejection, Blade ejection, etc.
|
|
Gate Type
|
Sprue gate, Edge gate, Sub-gate, Pin gate, Cashew gate, Themal gate, Valve gate, etc.
|
|
Heat Treatment
|
Quenching, Nitriding, Tempering, etc.
|
|
Cooling System
|
Liquid cooling or Beryllium bronze cooling, etc.
|
|
Surface Treatment
|
High gloss, Matte, EDM, Texture, Hardening, Coating etc
|
|
Mold Life
|
Class 101 – Life expectancy of +1,000,000 cycles.
Class 102 – Life expectancy not to exceed 1,000,000 cycles Class 103 – Life expectancy under 500,000 cycles Class 104 – Life expectancy less than 100,000 cycles Class 105 – Life expectancy less than 500 cycles. |
|
Equipment
|
CNC Machining, EDM, Wire Cutting, Grinding, Lathe, Milling, Drilling, Tapping, Fitting, Polishing, etc
|
|
Lead time
|
3~6 weeks depends on complexity of the mold
|
|
Place of Export
|
Shenzhen China
|
