Name:
Foam Spray Gun
Feature:
Foam Spray Gun is absolutely reliable with flexible cooperation , and it is compact in structure , less easy-worn parts , light in weight , convenient in operation and durable in lifetime .
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
1100*700*1400mm
-
Weight (KG):
-
350 KG
-
Certification:
-
ce
-
Color:
-
customized
-
Pressure:
-
25 Mpa
-
cleaning system:
-
pneumatic cleaning
-
Material:
-
A and B
-
Max hose length:
-
90 meters
-
Ratio:
-
mixed
-
Capacity:
-
2-8 kg/min
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BOBO
-
Machine Type:
-
polyurea spray machine
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
1100*700*1400mm
-
Weight (KG):
-
350 KG
-
Certification:
-
ce
-
Color:
-
customized
-
Pressure:
-
25 Mpa
-
cleaning system:
-
pneumatic cleaning
-
Material:
-
A and B
-
Max hose length:
-
90 meters
-
Ratio:
-
mixed
-
Capacity:
-
2-8 kg/min
Trade Capacity
Product Description

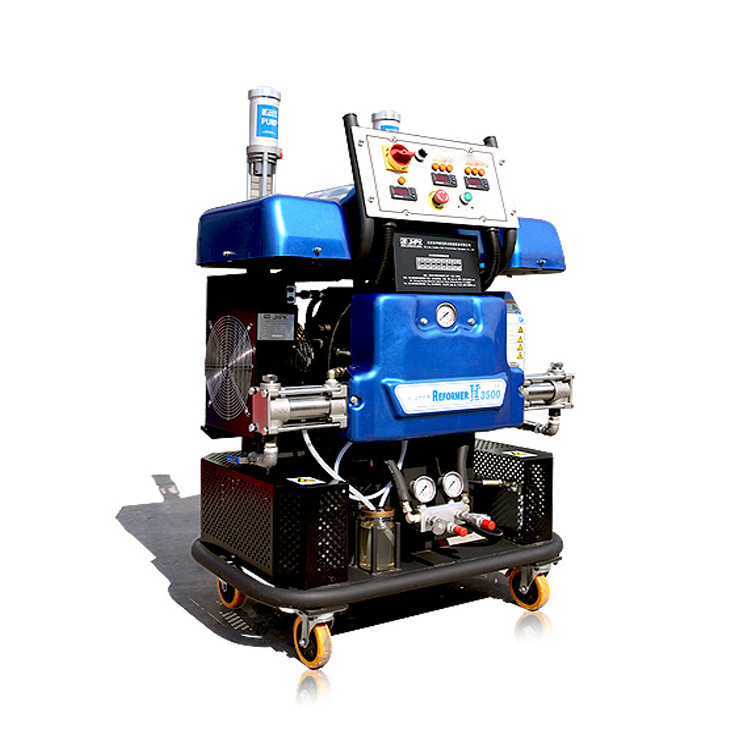

Hydraulic polyurea/polyurethane foam spraying machine
Hydraulic pu foam spraying machine is specially designed for polyurea elastomer product, which is widely used for wall, roof, refrigerator, tank body, pipeline protection coat for abrasive surface, waterproof, antiseptic purpose. The machine has accurate measuring, even mixing, portable and high performance advantage, especially suitable for sitework.
Main Features
▪ Easy cleaning
▪ High capacity
▪ More mobile
▪ Durable quailty
Deatailed Spec
|
No
|
Description
|
Data
|
|
1
|
Max. Flow Capacity
|
2-9 kg/min
|
|
2
|
Mixing Ratio
|
1:1, fixed ratio
|
|
3
|
Material viscosity range
|
200-1000CPS (Operation temperature)
|
|
4
|
Max. System Pressure
|
25MPa
|
|
5
|
Max. Single Material Output Press
|
26MPa
|
|
6
|
Hydraulic Pressure
|
8-12MPa (for working)
|
|
7
|
Material Heating Capacity
|
9000W X 2
|
|
8
|
Hose Heating Capacity
|
3200W
|
|
9
|
Max. Hose Length
|
90M
|
|
10
|
Electric System
|
38A x 3 + 16A -380V 3Phase
|
|
11
|
Driven System
|
Full-hydraulic
|
Application
The machine can be used in all kinds of construction environment. It can be applied to many kinds of two-component materials, such as
polyurea elastomer, polyurethane all water foaming, polyurethane foaming material, polyurethane adhesive, sealant and so on.
Spraying polyurea for anti-corrosive/antiseep/antirust/waterproofing
Spraying polyurethane foam for insultaion
Detailed Images
Machine Parts
Main Features
Name:
Transfer pump
Application:
Transfer pump are widely used in the industries of chemical , petrochmical , fine chemical , dyeing chemical ,and etc . They can be applied for transferring mediums such as acid , alkali , salt ,oil product , soft drinks , and etc .
Machine Parts
Name:
Heating Hose
Effect:
The two hose is heated separately with latest wrapped inside heating technology, it is much more better than the traditional one, to ensure the material has best temperature and viscidity before mixing and spraying.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
1100 x 700 x 1400 mm
|
|
|
Weight
|
350 kg
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
