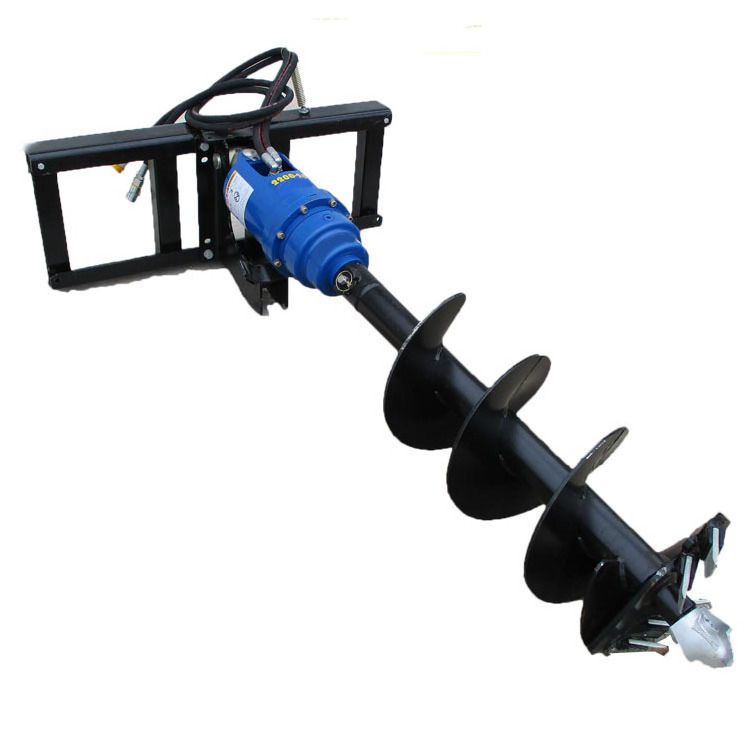

Hydraulic Auger Motor /Earth Auger Used By Excavator SK300 For auger drilling

Hydraulic Auger Motor /Earth Auger Used By Excavator SK300 For auger drilling

FOB Reference Price: Get Latest Price

≥1 Sets

US $1000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: SC

Model Number:: SC7000

Condition:: New

Weight:: 100

Working Pressure:: 310bars

Max. Torque:: 7000Nm

Digging Tool Type:: hole digger

Application:: dig hole, tree planting, solar project

condition:: new

Suitable:: 1-50 ton excavator,crane ,skid steer loader

auger diameter:: 75-1500mm

Depth:: 20M

STD oil flow:: 75L/M

STD pressure:: 170 bar

outshaft:: 41/51HEX, 65 Rnd,75Squ

Item:: hydraulic auger motor

Quick Details

Suitable Excavator(ton):: 1-70t

Marketing Type:: Factory price

Place of Origin:: China

Brand Name:: SC

Model Number:: SC7000

Condition:: New

Weight:: 100

Working Pressure:: 310bars

Max. Torque:: 7000Nm

Digging Tool Type:: hole digger

Application:: dig hole, tree planting, solar project

condition:: new

Suitable:: 1-50 ton excavator,crane ,skid steer loader

auger diameter:: 75-1500mm

Depth:: 20M

STD oil flow:: 75L/M

STD pressure:: 170 bar

outshaft:: 41/51HEX, 65 Rnd,75Squ

Item:: hydraulic auger motor

SC AUGER DRIVER

SC Earth Drills, also called Auger Drives, are ideally suited for excavators with a flow between 55 to 1000 lpm and a weight between 3 and 100T. Fitted with Eaton planetary motors with intergrated pressure relief valve and input housing. The innovative design allows the gearbox to go down the hole to maximise drilling depth without extentions, eliminating downtime and minimising maintenance, optimising your returns. SC planetary earth drills are specially designed for earth drilling and augering in most ground conditions.

*High speed motor lead to high speed rotary, 2 times speed than other brands.

Wide variety of auger diameters, lengths and style for every digging application.

*Extensions available for deeper digging.

*quick and easy auger exchange

*minimum maintenance

*adjustable rotation speed

*warranted for 2 years for the gearbox and 1 year for the motor.

PRODUCT SPECIFICATIONS

S.N	MODEL	Excavator weight	Max speed R/m	Max torque Nm	STD Oil flow L/m	Immidiate pressure Bar	Outshaft mm	Hose	auger diameter mm
1	SC1500	0.8-1.5T	80	1500	55	170	51Hex, 65Rnd	1/2''G	100-500
2	SC2500	1.5T-2.5T	62	2500	75	260			1/2''G	100-600
3	SC3000	2T-3T	62	3000	75	260			1/2''G
4	SC3500	2.5T-3.5T	56	3500	75	260			1/2''G
5	SC4000	3T-4T	56	4000	75	260			1/2''G
6	SC4500	3.5T-4.5T	50	4500	95	260			1/2''G	200-600
7	SC5000	4T-5.5T	48	5000	95	260			1/2''G	200-600
8	SC5500	4T-6T	44	5500	95	310			1/2''G	350-800
9	SC6000	4.5T-7T	42	6000	95	310			1/2''G	350-800
10	SC7000	5T-8T	38	7000	150	310	75 Square	1''G	350-800
11	SC8000	6T-8T	36	8000	150	310				1''G
12	SC10000	7T-10T	35	10000	170	310				1''G
13	SC12000	8T-12T	35	12000	170	310				1''G
14	SC15000	13T-17T	30	15000	180	310				1''G
15	SC20000	15T-20T	30	20000	180	310			1''G	300-1100
16	SC25000	18T-22T	40	25000	250	310			1''G
17	SC30000	18T-25T	35	30000	250	310	110 Square	1''G
18	SC45000	20T-28T	32	45000	424	320			1''G	750-1500
19	SC50000	25T-35T	30	50000	424	320			1''G
20	SC70000	30T-40T	25	70000	424	320			1''G
21	SC100000	36T-50T	23	100000	625	320			1''G
22	SC380000	60T-100T	10	380000	1000	320	200 Square	1''G	914-1500
23	SC580000	100T-150T	6	580000	1000	320	200 Square		914-1500	1''G

Product Features

High speed motor

Three stage gear

Variaty of tips

Successful Project

Packing

Verticality tester is available

FAQ

Q: HOW CAN I CHOOSE THE SUITABLE EARTH DRILL?

A:PLEASE REFER TO BELOW QUESTIONS:
1. Brand and model of Excavator/Backhoe/Skid Steer loader?
2. Diameter of hole to be drilled?
3. Depth of hole to be drilled?
4. Ground type to be drilled?
Once you have answered the above you can easily make the correct choice.

Q: DO I NEED TO PURCHASE SPARE PARTS WHEN ORDERING AN EARTH DRILL?
A: It is not necessary to purchase spare parts for the Planetary Drive as this is a sealed unit, however it is important to follow
the service schedule as outlined in the operators manual. It is advisable to purchase spare wearing parts (teeth and Pilots).

Q: CAN THE EARTH DRILL FIT A VARIETY OF MACHINES?
A: Yes, as long as the carrier's specifications agree with the parameters of the Earth Drill as outlined in our catalogue.

Q: HOW DO I FIT THE EARTH DRILL TO MY MACHINE?
A: There are four types of mounting linkage available;
* Double Pin Hitch: to be used with excavators fitted with quick couplers.
* Double Pin Cradle hitch: also to be used with excavators fitted with quick hitch, in addition the Cradle hitch can be used to stabilise the Earth Drill whilst travelling around the site and also to aid in the clearing of spoil from the auger.

Q: WHAT CAN I DRILL?
A: There are 3 types of cutting teeth available,
1.Earth and Clay Teeth: Suitable for drilling earth and clay.
2.Tungsten Teeth: Suitable for drilling hard and abrasive ground.
3.Rock Teeth: Suitable for drilling soft, fractured, rock.

Q: HOW DEEP CAN I DRILL?
A: There are extensions available for every Earth Drill however maximum drilling depth depend on the following conditions;
* Diameter of hole to be drilled
* Depth of hole to be drilled
* Type of parent machine to be used
* Ground type to be drilled

Q: What's the Warranty?
A: warranted for 2 years for the gearbox and 1 year for the motor.
