Quick Details
-
Brand Name:
-
MEK
-
Model Number:
-
CONTEC07A
-
Product name:
-
sphygmomanometer
-
Display mode:
-
color LCD
-
Power supply:
-
100 - 240 V ~ , 50/60 Hz
-
Measurement method:
-
oscillometry
-
Measurement mode:
-
upper arm
-
Range:
-
0 ~ 297 mmHg (0 ~ 39.6 kPa)
-
Resolution:
-
0.133 kPa (1 mmHg)
-
PR measurement range:
-
40 bpm ~ 240 bpm
-
Dimension:
-
460 mm (L) * 450 mm (W) * 300 mm (H)
-
Weight:
-
about 5.6 kg
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
China
-
Brand Name:
-
MEK
-
Model Number:
-
CONTEC07A
-
Product name:
-
sphygmomanometer
-
Display mode:
-
color LCD
-
Power supply:
-
100 - 240 V ~ , 50/60 Hz
-
Measurement method:
-
oscillometry
-
Measurement mode:
-
upper arm
-
Range:
-
0 ~ 297 mmHg (0 ~ 39.6 kPa)
-
Resolution:
-
0.133 kPa (1 mmHg)
-
PR measurement range:
-
40 bpm ~ 240 bpm
-
Dimension:
-
460 mm (L) * 450 mm (W) * 300 mm (H)
-
Weight:
-
about 5.6 kg
Product Description

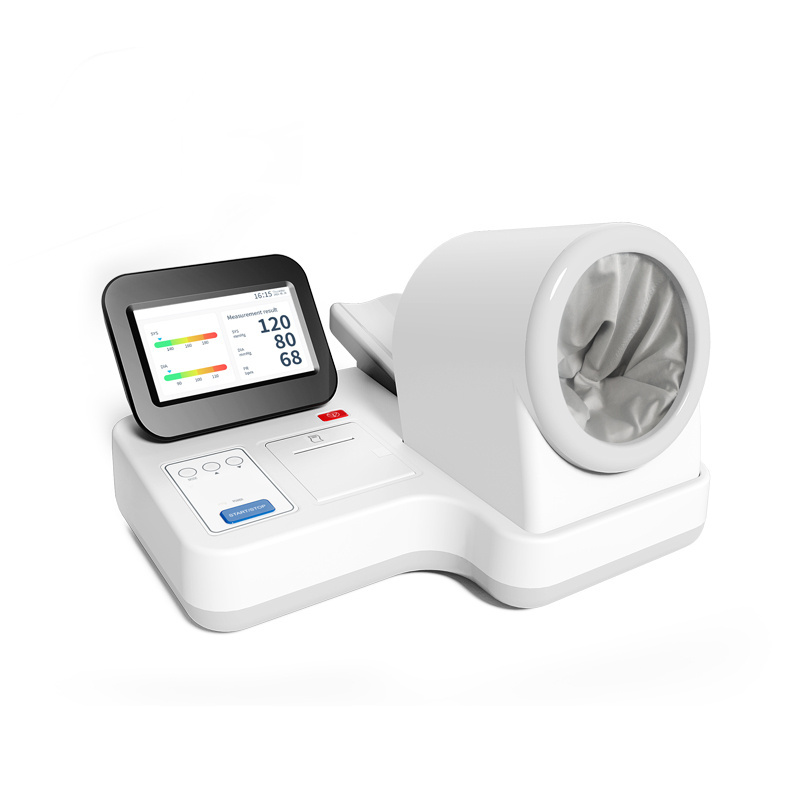

High-definition color LCD blood pressure meter desktop sphygmomanometer
Introduction
The device adopts high-definition color LCD, concise and elegant in interface, which is applicable for use by adult (arm circumference: 17 cm ~ 42 cm) for NIBP measurement in hospitals and medical institutions, no need to manually wrap the cuff, user can finish measurement by himself. The measurement results can be printed.
Features
1)Be applicable for use by adult for NIBP measurement.
2)One-button operation, wrap the cuff automatically to finish measurement.
3)High-definition color LCD, big font display, simple and understandable in display contents.
4)Measurement results can be printed, convenient for user to record.
5)Be applicable for use by person whose arm circumference is in range of 17 cm ~ 42 cm.
6)Optional two units: mmHg and kPa
7)USB interface and network interface.
2)One-button operation, wrap the cuff automatically to finish measurement.
3)High-definition color LCD, big font display, simple and understandable in display contents.
4)Measurement results can be printed, convenient for user to record.
5)Be applicable for use by person whose arm circumference is in range of 17 cm ~ 42 cm.
6)Optional two units: mmHg and kPa
7)USB interface and network interface.
Performance
1)Parameters:
Measurement method: oscillometry
Measurement mode: upper arm
Range: 0 ~ 297 mmHg (0 ~ 39.6 kPa)
BP measurement range:
Systolic pressure: 4 kPa (30 mmHg) ~ 36 kPa (270 mmHg)
Mean pressure: 2.7 kPa (20 mmHg) ~ 31.3 kPa (235 mmHg)
Diastolic pressure: 1.3 kPa (10 mmHg) ~ 29.3 kPa (220 mmHg)
Resolution: 0.133 kPa (1 mmHg)
PR measurement range: 40 bpm ~ 240 bpm
Accuracy:
Static pressure: ± 3 mmHg (± 0.4 kPa)
PR accuracy: ± 2 % or ± 2 bpm, whichever is greater
2)Display mode: color LCD
3)Power supply: 100 - 240 V ~ , 50/60 Hz
4)Safety class: class I, type BF applied part
Measurement method: oscillometry
Measurement mode: upper arm
Range: 0 ~ 297 mmHg (0 ~ 39.6 kPa)
BP measurement range:
Systolic pressure: 4 kPa (30 mmHg) ~ 36 kPa (270 mmHg)
Mean pressure: 2.7 kPa (20 mmHg) ~ 31.3 kPa (235 mmHg)
Diastolic pressure: 1.3 kPa (10 mmHg) ~ 29.3 kPa (220 mmHg)
Resolution: 0.133 kPa (1 mmHg)
PR measurement range: 40 bpm ~ 240 bpm
Accuracy:
Static pressure: ± 3 mmHg (± 0.4 kPa)
PR accuracy: ± 2 % or ± 2 bpm, whichever is greater
2)Display mode: color LCD
3)Power supply: 100 - 240 V ~ , 50/60 Hz
4)Safety class: class I, type BF applied part
Accessories
User Manual, power cord, armrest, printing paper, protective sleeve for armband
Physical characteristic
Dimension: 460 mm (L) × 450 mm (W) × 300 mm (H)
Weight: about 5.6 kg
Operating environment:
Temperature: + 5 ℃ ~ + 40 ℃
Relative humidity: 15 % ~ 85 %
Atmospheric pressure: 700 hPa ~ 1060 hPa
Storage environment:
Temperature: - 20 ℃ ~ + 55 ℃
Relative humidity: ≤95 %
Atmospheric pressure: 700 hPa ~ 1060 hPa
Weight: about 5.6 kg
Operating environment:
Temperature: + 5 ℃ ~ + 40 ℃
Relative humidity: 15 % ~ 85 %
Atmospheric pressure: 700 hPa ~ 1060 hPa
Storage environment:
Temperature: - 20 ℃ ~ + 55 ℃
Relative humidity: ≤95 %
Atmospheric pressure: 700 hPa ~ 1060 hPa
