Quick Details
-
Model Number:
-
SK130M-32
-
Place of Origin:
-
Yangzhou,China
-
Panel Dimensions:
-
500-1650mm, 670*1020*30mm
-
Cell Type:
-
210mm Half Cut Cell
-
Application:
-
Solar Power System
-
Product name:
-
Sola Panel
-
Frame:
-
Anodized Aluminium Alloy
-
Operate:
-
-40°C~+85°C
-
Packaging Configuration:
-
16KG±3%
-
Maximum system Voltage:
-
DC1500V
-
OEM ORDER:
-
Provide Custom Products
-
Junction Box:
-
IP68 Rated
Quick Details
-
Cell size:
-
670*500-1650mm
-
Type:
-
PERC, Half Cell, HJT, hbc, N-TYPE, TOPCON, Customi
-
Brand Name:
-
SUNTEK
-
Model Number:
-
SK130M-32
-
Place of Origin:
-
Yangzhou,China
-
Panel Dimensions:
-
500-1650mm, 670*1020*30mm
-
Cell Type:
-
210mm Half Cut Cell
-
Application:
-
Solar Power System
-
Product name:
-
Sola Panel
-
Frame:
-
Anodized Aluminium Alloy
-
Operate:
-
-40°C~+85°C
-
Packaging Configuration:
-
16KG±3%
-
Maximum system Voltage:
-
DC1500V
-
OEM ORDER:
-
Provide Custom Products
-
Junction Box:
-
IP68 Rated

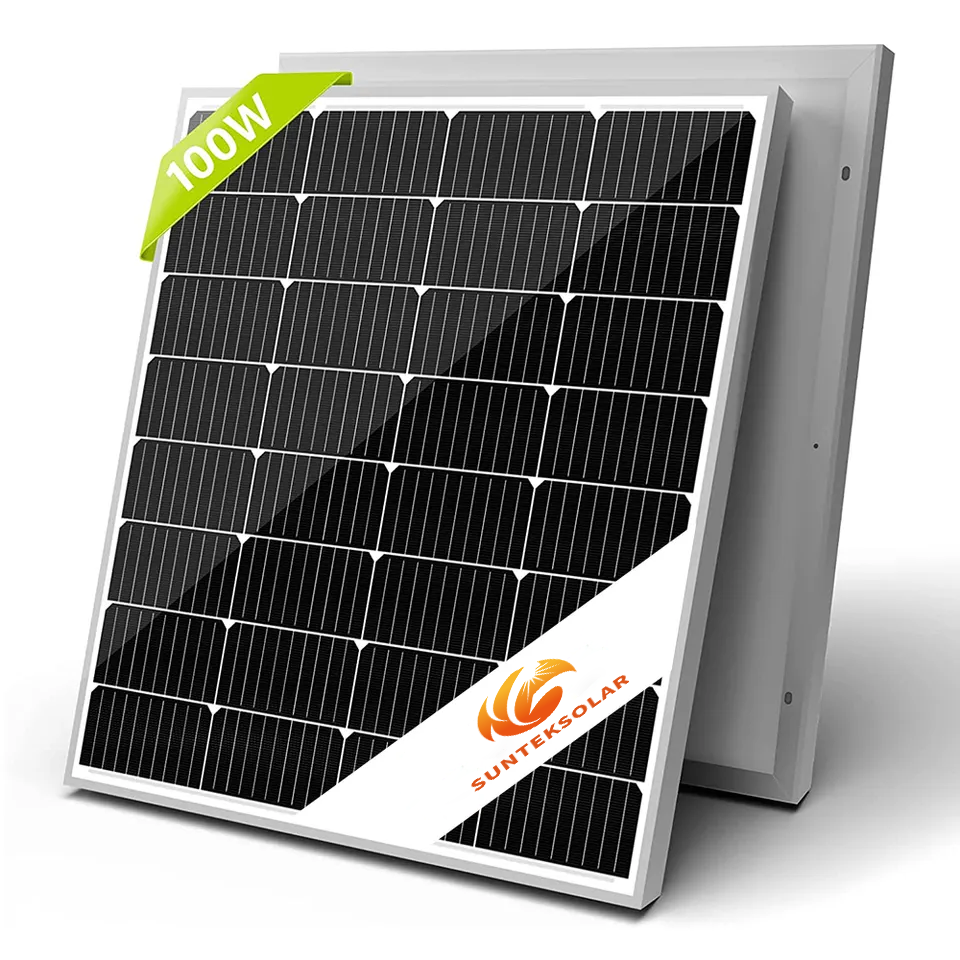

PRODUCT DISPLAY
|
Cell Orientation
|
32 (4x8)
|
|
Glass
|
Single Glass
|
|
Weight
|
6.52kg±3%
|
|
Power Output Tolerance
|
0~+5W
|
|
Dimension
|
785*765*30mm
|
|
Frame
|
Anodized aluminumalloy frame
|
|
Model Number
|
SK40M-32
|
SK50M-32
|
SK60M-32
|
SK70M-32
|
SK75M-32
|
SK80M-32
|
|
Testing Condition
|
STC
|
STC
|
STC
|
STC
|
STC
|
STC
|
|
Maximum Power (Pmax/W)
|
40
|
50
|
60
|
70
|
75
|
80
|
|
Open Circuit Voltage (Voc/V)
|
21.28
|
21.42
|
22.06
|
21.51
|
21.8
|
22.06
|
|
Short Circuit Current (Isc/A)
|
2.34
|
2.91
|
3.25
|
4.06
|
4.21
|
4.33
|
|
Voltage at Max Power (Vmp/V)
|
18.24
|
18.37
|
19.37
|
18.43
|
18.79
|
19.37
|
|
Current at Max Power (Imp/A)
|
2.19
|
2.72
|
3.10
|
3.8
|
3.89
|
4.13
|
|
Module Weight (Kg)
|
2.8
|
3.43
|
3.43
|
4.53
|
4.53
|
4.53
|
|
Module Dimension (mm)
|
655*395*30
|
800*395*30
|
800*395*30
|
545*765*30
|
545*765*30
|
545*765*30
|
|
Model Number
|
SK90M-32
|
SK95M-32
|
SK100M-32
|
SK110M-32
|
SK120M-32
|
SK130M-32
|
|
Testing Condition
|
STC
|
STC
|
STC
|
STC
|
STC
|
STC
|
|
Maximum Power (Pmax/W)
|
90
|
95
|
100
|
110
|
120
|
130
|
|
Open Circuit Voltage (Voc/V)
|
21.8
|
22.06
|
21.42
|
21.72
|
22.08
|
21.71
|
|
Short Circuit Current (Isc/A)
|
5.05
|
5.14
|
5.82
|
6.24
|
6.18
|
7.39
|
|
Voltage at Max Power (Vmp/V)
|
18.79
|
19.37
|
18.37
|
18.63
|
19.41
|
18.6
|
|
Current at Max Power (Imp/A)
|
4.79
|
4.9
|
5.44
|
5.9
|
6.18
|
6.99
|
|
Module Weight (Kg)
|
5.32
|
5.32
|
6.52
|
6.52
|
6.52
|
7.77
|
|
Module Dimension (mm)
|
640*765*30
|
640*765*30
|
785*765*30
|
785*765*30
|
785*765*30
|
785*765*30
|
Certifications
Why Choose Us
Strict QC System
100% Cells Sorting
Ensure Colour and Power Difference.
Ensure high yields,consistent performance and durability,
First of 52 steps strict quality control and inspection process.
Ensure Colour and Power Difference.
Ensure high yields,consistent performance and durability,
First of 52 steps strict quality control and inspection process.
1
00% Inspection
Before and After Lamination.
Most stringent acceptance criteria and tightest tolerance,
Intelligent alarm and stop mechanism in case of any deviation or errors.
Before and After Lamination.
Most stringent acceptance criteria and tightest tolerance,
Intelligent alarm and stop mechanism in case of any deviation or errors.
100% EL Testing
Before and Following Lamination
Ensure "Zero" micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and panel. .
Before and Following Lamination
Ensure "Zero" micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and panel. .
100% Optimal Testing
Ensure 3% Positive Power Tolerance
Comprehensive QC information management system with barcode ID.Quality traceable system in place to allow quality data flow constantly.
Ensure 3% Positive Power Tolerance
Comprehensive QC information management system with barcode ID.Quality traceable system in place to allow quality data flow constantly.
Product packaging
|
Model
|
144cell mono
|
|
|
Modules per box
|
30 pieces
|
|
|
Modules per 40' container
|
660 pieces
|
|
|
|
||
