Production of textile ceramics:
1: Making mould
2: Prepare material according to requirement.
3: Blending material
4: Extrude items
5: Fire about 48 hours (depending on the size of the product)
6: Sanding (polishing)
7: Pick out superior products for delivery.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
yunnuo
-
Color:
-
White,pink,yellow,black,grey
-
Feature:
-
extreme wear, high temperature and harsh environment
-
Usage:
-
Wire guide in coiling machine and spinning and weaving machinery
-
Surface:
-
shiny,polished,flaring,fine polishing
-
Density:
-
3.5g/cm3
-
Advantage:
-
high temperatures for long periods even under severe mechanical stress
-
Size:
-
Customized,tailored
-
Finish:
-
diamond polished surface finish
-
Keywords:
-
ceramic yarn wire guide
Quick Details
-
Material:
-
Alumina Ceramic
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
YNT-196
-
Brand Name:
-
yunnuo
-
Color:
-
White,pink,yellow,black,grey
-
Feature:
-
extreme wear, high temperature and harsh environment
-
Usage:
-
Wire guide in coiling machine and spinning and weaving machinery
-
Surface:
-
shiny,polished,flaring,fine polishing
-
Density:
-
3.5g/cm3
-
Advantage:
-
high temperatures for long periods even under severe mechanical stress
-
Size:
-
Customized,tailored
-
Finish:
-
diamond polished surface finish
-
Keywords:
-
ceramic yarn wire guide
Product Description

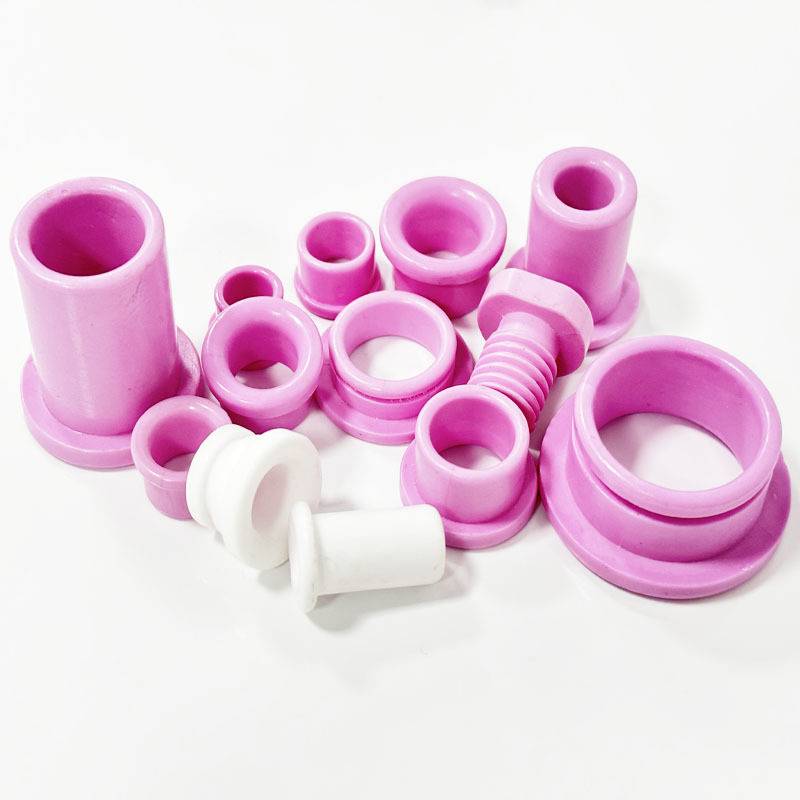

Ceramic tube eyelet guides
|
OD*ID*Length
|
|
1.8*1.2*16.5
|
|
2.8x1.7x25
|
|
2.6x1.4*25
|
|
3.1x1.7*25
|
|
3.2x1.7*25
|
|
3.2x1.7*35
|
|
3.2*1.9*16
|
|
4*2.1*16.5
|
|
4.8*2.6*5.5
|
|
5*2.6*30
|
|
5.2*3.1*21
|
|
5*2.6*8
|
|
6*3*7.5
|
|
6*3*25
|
|
6*3.1*33
|
|
8*4.5*41
|
|
8*5*8
|
|
8*5.3*13
|
|
10*6.2*20
|
|
10*6.2*30
|
|
10*6.2*42
|
|
10*6.2*15
|
Production of textile ceramics
|
A
|
35
|
|
B
|
27
|
|
C
|
23
|
|
D
|
46
|
|
E
|
18
|
|
Other size
|
customized
|
|
AL2O3%
|
95
|
99.7
|
|
Bulk Density
(g/cm3) |
3.7
|
3.91
|
|
Flexural strength
(MPa) |
304
|
370
|
|
Linear expansion coefficient(×10-6/C)（25-800C）
|
7.3
|
7.6
|
|
Thermal conductivity [w/(m.R)]
|
20
|
35
|
|
Dielectric strength (KV/mm)
|
10
|
10
|
|
Volume resistivity (Ω.cm) 20C
|
>1014
|
>1014
|
|
300C
|
>1012
|
>1010
|
|
Max C
|
1600
|
1800
|
|
Moh's hardness
|
8.8
|
9
|
|
Refractoriness
|
2000
|
2040
|
