Quick Details
-
Packaging Type:
-
Cartridge
-
Voltage:
-
220v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Yuhang
-
Dimension(L*W*H):
-
1250*1150*1400mm
-
Weight:
-
350 KG, 350kg
-
Core Components:
-
Cylinder
-
Air Supply:
-
0.6-0.8MPa
-
Filling speed:
-
20~45pcs/min
-
Control:
-
PLC screen
-
Filling volume:
-
MAX 330ml
-
Air Consume:
-
<0.3m3 /min
Quick Details
-
Machinery Capacity:
-
2000BPH
-
Packaging Material:
-
Plastic
-
Filling Material:
-
Acrylic paste, adhesive, Silicone glue
-
Packaging Type:
-
Cartridge
-
Voltage:
-
220v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Yuhang
-
Dimension(L*W*H):
-
1250*1150*1400mm
-
Weight:
-
350 KG, 350kg
-
Core Components:
-
Cylinder
-
Air Supply:
-
0.6-0.8MPa
-
Filling speed:
-
20~45pcs/min
-
Control:
-
PLC screen
-
Filling volume:
-
MAX 330ml
-
Air Consume:
-
<0.3m3 /min
Product Description

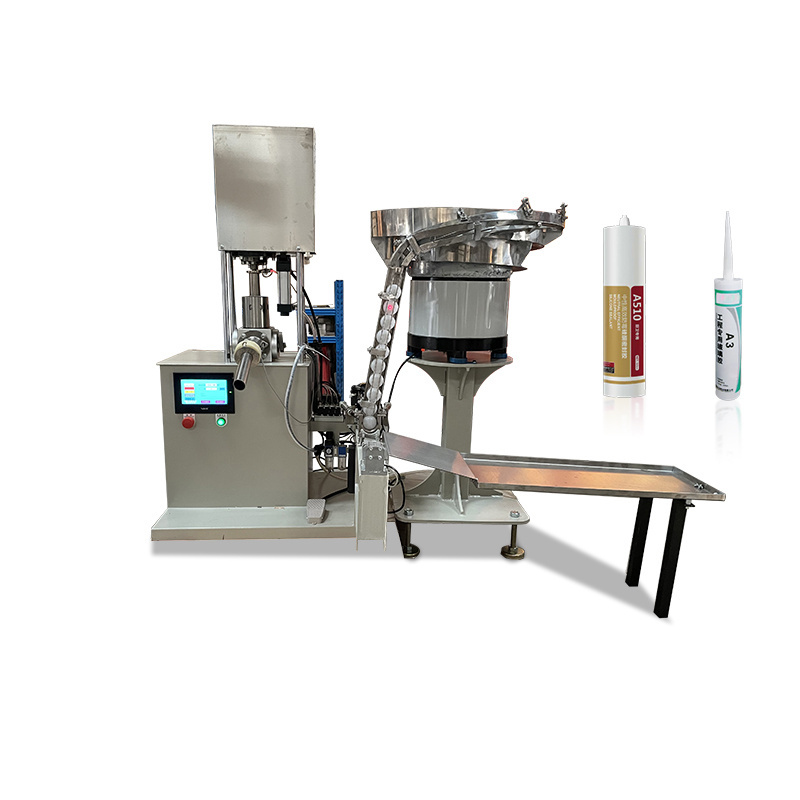

Semi-automatic filling and capping machine
YH semi-automatic quantitative filling machine produced by Gaouyou Yuhang Chemical Machinery Factory.This machine is self-developed by our company on the basis of absorbing foreign advanced technology. It is widely used in the chemical,pharmaceutical and food industries. It is suitable for filling all kinds of plastic film/aluminum film hoses with various pastes,greases, Sealant, etc.
2. Product performance
1)Semi-automatic control, 1 worker operates the bottle, the equipment automatically quantitative filling, automatic bottom cap;
2)The whole machine adopts PLC controller and touch screen, strict precision control and processing technology of each transmission part, the equipment has high stability and fast response.
1)Semi-automatic control, 1 worker operates the bottle, the equipment automatically quantitative filling, automatic bottom cap;
2)The whole machine adopts PLC controller and touch screen, strict precision control and processing technology of each transmission part, the equipment has high stability and fast response.
3)The volumetric metering cylinder is used, and the servo motor controls the quantification. The filling measurement accuracy is high, and the measurement parameters can be adjusted at any time throughout the touch screen.
Product specification
Product specification
|
Model
|
YHGZJ-BJ-1
|
|
Power Supply
|
220V/50HZ
|
|
Air Supply
|
0.6-0.8MPa
|
|
Air Consume
|
<0.3m3 /min
|
|
Filling Volume
|
MAX 330ml Adjustable
|
|
Volume Precision
|
≤±0.5℅
|
|
Productivity
|
20~45pcs/min
|
|
Tube Diameters
|
&30-￠50mm
|
|
Dimensions(L×W×H)
|
1250×1150*1400
|
|
Weight(kg)
|
350kg
|
|
Name
|
Model
|
Brand
|
Quantity
|
Remarks
|
|
Controller
|
XD2-16T
|
XINJE
|
1
|
|
|
Servo motor
|
2.3KW
|
XINJE
|
1
|
|
|
Touch screen
|
7 inch
|
XINJE
|
1
|
|
|
Proximity switch
|
IM12-04NNS-ZW1
|
FORLINX
|
4
|
|
|
power switch button
|
|
Idea
|
2
|
|
|
Relay
|
RU2S-D24
|
Idea
|
1
|
|
|
Power switch
|
2P-16A
|
TENGEN
|
1
|
|
|
Switching power supply
|
NES-100-24
|
MW
|
1
|
|
|
cylinder
|
SC40*75S
|
AirTAC
|
1
|
|
|
cylinder
|
SCJ63*125-50S
|
AirTAC
|
1
|
|
|
cylinder
|
MI20*50
|
AirTAC
|
2
|
|
|
cylinder
|
MI10*20
|
AirTAC
|
1
|
|
|
cylinder
|
SDA20*30
|
AirTAC
|
1
|
|
|
Solenoid valve
|
4V210 D24
|
AirTAC
|
5
|
|
