The 4x4 pickup vehicle is a type of vehicle.This vehicles have vehicle off-road capabilities.
- Product Details
- {{item.text}}
Quick Details
-
Horsepower:
-
150 - 250hp
-
Cargo Tank Type:
-
Fence
-
Gross Vehicle Weight:
-
8510 kg
-
Drive Wheel:
-
4x4
-
After-sales Service Provided:
-
Video technical support, Online support, Free spare parts
-
Brand Name:
-
Zhuanzhi
-
Place of Origin:
-
Hubei
-
Cargo Tank Dimension:
-
3545x2294x550/900mm
-
Color:
-
Customer's Request
-
Tire:
-
12.5R20
-
Displacement:
-
5.88 L
-
Overall dimension:
-
6500x2470x2825 mm
-
Engine Power:
-
118(kw)
-
Wheelbase:
-
3600 mm
-
Payload:
-
2500 kg
-
Transmission:
-
6 speed, Manuel
-
Fuel consumption:
-
32(L/100km)
-
Drive type:
-
4X2 LHD
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 3
-
Market Segement:
-
Logistics transportation
-
Horsepower:
-
150 - 250hp
-
Cargo Tank Type:
-
Fence
-
Gross Vehicle Weight:
-
8510 kg
-
Drive Wheel:
-
4x4
-
After-sales Service Provided:
-
Video technical support, Online support, Free spare parts
-
Brand Name:
-
Zhuanzhi
-
Place of Origin:
-
Hubei
-
Cargo Tank Dimension:
-
3545x2294x550/900mm
-
Color:
-
Customer's Request
-
Tire:
-
12.5R20
-
Displacement:
-
5.88 L
-
Overall dimension:
-
6500x2470x2825 mm
-
Engine Power:
-
118(kw)
-
Wheelbase:
-
3600 mm
-
Payload:
-
2500 kg
-
Transmission:
-
6 speed, Manuel
-
Fuel consumption:
-
32(L/100km)
-
Drive type:
-
4X2 LHD
Product Description

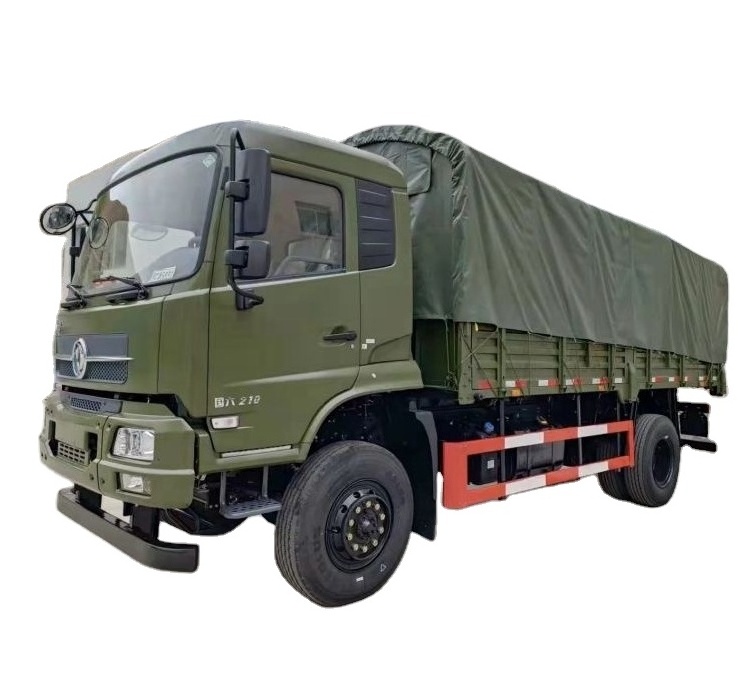

[4-wheel drive vehicle] Dongfeng Cummins
one-row and half cab 4X4 flat-head vehicle
The overall performance of off-road trucks is better than that of civilian trucks. From design to production, they must consider adapting to the harsher environment. They are simple in appearance, easy to disassemble and repair, easy to assemble each assembly, strong engine power, long driving range, and can Various modifications, the most important thing is high reliability and durability. Only when these standards are met can they truly play a role in battlefields, prospecting, and rescue operations.
4x4 trucks:
The
4x4 off-road
truck is a vehicle designed to transport troops, fuel supplies to the battlefield, through asphalted roads and unpaved dirt roads. Several countries have manufactured their own models of trucks, each of which has its own technical characteristics. These vehicles are adapted to the needs of the different armies on the ground. In general, these trucks are composed of a chassis, a motor, a transmission, a cabin, an area for the placement of the load and the equipment, axles of transmission, suspensions, direction, tires, electrical, pneumatic, hydraulic, engine cooling systems, and brakes. They can be operated with a gasoline engine or with a diesel engine, there are four-wheel drive(4x4)vehicles, six wheeled (6x6), eight wheeled (8x8), ten wheeled (10x10) and even twelve wheeled vehicles (12x12).
Specification
|
Model
|
Dongfeng Off-road Vehicle Trucks EQ2070G
|
|
|
Dimension & Weight
|
|
|
|
Overall dimension (mm)
|
6500*2470*2825
|
|
|
Cargo Box Size (mm)
|
3545*2294*550/900
|
|
|
Wheelbase (mm)
|
3600
|
|
|
Total weight (kg)
|
8510
|
|
|
Tare weight (kg)
|
5800
|
|
|
Payload (kg)
|
2500
|
|
|
Engine
|
|
|
|
Engine Model
|
Dongfeng C u m m i n s EQB160-22
|
|
|
Engine Type
|
6 cylinder in-line, 4 Stroke Water, cooled, turbocharge ,intercooler
|
|
|
Fuel Type
|
Diesel
|
|
|
Engine Power (kW/HP)
|
118/160
|
|
|
Max torque (N.m/rpm)
|
500/1600
|
|
|
Displacement (L)
|
5.88
|
|
|
Fuel consumption (L/100km)
|
32
|
|
|
Emission
|
Euro III
|
|
|
Chassis system
|
|
|
|
Transmission
|
6 speed, Manuel
|
|
|
Suspension Type
|
Leaf spring
|
|
|
Clutch
|
Φ395mm single sheet dry-type clutch
|
|
|
Steering
|
Power steering
|
|
|
Tyre
|
12.5R20
|
|
Detailed Images
Dongfeng 4X4/6X6/6X4/4X2 vehicles, Off-road Cargo/lorrry Trucks
A truck or lorry is a motor vehicle designed to transport cargo. Trucks vary greatly in size, power, and configuration. Commercial trucks can be very large and powerful and may be configured to be mounted with specialized equipment, such as in the case of refuse trucks, fire trucks, concrete mixers, and suction excavators. In American English, a commercial vehicle without a trailer or other articulation is formally a "straight truck" while one designed specifically to pull a trailer is not a truck but a"tractor".
Dongfeng EQ2070G Off-road Cargo Trucks
Modern trucks are largely powered by diesel engines, although small- to medium-size trucks with gasoline engines exist in the US,
Canada, and Mexico. In the European Union, vehicles with a gross combination mass of up to 3.5 t (7,700 lb) are known as light
commercial vehicles, and those over as large goods vehicles. Dongfeng EQ2070G Military Off-road lorry Trucks is an multi-purpose truck. they were inspired mainly by the American Studebaker US6 and Russian ZiL and Praga V3S.
Canada, and Mexico. In the European Union, vehicles with a gross combination mass of up to 3.5 t (7,700 lb) are known as light
commercial vehicles, and those over as large goods vehicles. Dongfeng EQ2070G Military Off-road lorry Trucks is an multi-purpose truck. they were inspired mainly by the American Studebaker US6 and Russian ZiL and Praga V3S.
Dongfeng vehicles
Due to the design of axle gearboxes (axles are positioned high above the wheels axis), the EQ2070G has a high ground clearance,
this structure provides great terrain passability, but on the other hand limits the maximum speed (91 km/h). The Dongfeng EQ2070G
was a durable, popular and extremely adaptable truck built in various versions and widely exported, therefore it is not difficult
to see EQ2070G based vehicles still hard at work nowadays.
this structure provides great terrain passability, but on the other hand limits the maximum speed (91 km/h). The Dongfeng EQ2070G
was a durable, popular and extremely adaptable truck built in various versions and widely exported, therefore it is not difficult
to see EQ2070G based vehicles still hard at work nowadays.
The engine is an air-cooled diesel six-cylinder "EQB160-22" (modified engine from C u m m i n s B series), with a capacity of 7412 cm³, direct fuel injection and overhead valves. It is relatively noisy, but works reliably even in extreme conditions. Climbing ability is up to 60% (without tow). Four wheels (rear and front are 2) all are driving wheels and help the truck not to bog down in soft soil, therefore it does not experience any problems in forests or in the field.Consumption is 30 liters of diesel per 100km, the fuel tank has a capacity of 145+70 liters.
The truck is able to get over 40 cm high perpendicular obstacle, wading depthis 100 cm. There are two batteries (12 V, 125 Ah), they connected in parallel during traffic, but serially when engine starts. The
payload of the truck is 2.5 tons on paved surfaces and 2 tons on rough terrain. Maximum speed is 91 km/h.
payload of the truck is 2.5 tons on paved surfaces and 2 tons on rough terrain. Maximum speed is 91 km/h.
More Options:
4-wheel drive off-road trucks mainly include: Dongfeng EQ1093 pointed 4x4 off-road truck chassis, Dongfeng DFL1100B flat-head Tianjin 4-wheel drive off-road cargo/lorry truck, EQ2090 series 4-wheel drive vehicles, and Dongfeng EQ2141 series 4x4 desert off-road vehicles. It can be modified for short- and medium-distance transport vehicles, municipal sanitation projects,mines, oil drilling special chassis prospecting vehicles, truck-mounted crane trucks, sprinklers, and fire trucks. Equipped with:a central inflation and deflation system, which can inflate and deflate tires on the front axle and rear axle respectively; the rear axle is equipped with a jaw-type self-locking differential lock, which automatically locks the differential when there is a large difference in left and right adhesion. Suitable for mountainous deserts, can easily cope with harsh roads.
4-wheel drive off-road trucks mainly include: Dongfeng EQ1093 pointed 4x4 off-road truck chassis, Dongfeng DFL1100B flat-head Tianjin 4-wheel drive off-road cargo/lorry truck, EQ2090 series 4-wheel drive vehicles, and Dongfeng EQ2141 series 4x4 desert off-road vehicles. It can be modified for short- and medium-distance transport vehicles, municipal sanitation projects,mines, oil drilling special chassis prospecting vehicles, truck-mounted crane trucks, sprinklers, and fire trucks. Equipped with:a central inflation and deflation system, which can inflate and deflate tires on the front axle and rear axle respectively; the rear axle is equipped with a jaw-type self-locking differential lock, which automatically locks the differential when there is a large difference in left and right adhesion. Suitable for mountainous deserts, can easily cope with harsh roads.
