Quick Details
-
Warranty:
-
3months-1year
-
Brand Name:
-
KEEPTEEN
-
Model Number:
-
D20-18
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
8*25*35cm
-
Working Volt:
-
6v 9v 12v voltage output
-
Material:
-
ETFE Solar
-
surface:
-
Tempering Glass
-
Capacity:
-
54000mAh
-
Solar Working Power:
-
20W
-
Output Voltage:
-
12V/2A, 9V/2.6A, 6V/4A
-
Cable length:
-
2m
-
MPPT:
-
Yes
-
battery:
-
18pcs 18650 battery
-
Plug:
-
DC5.5*2.1mm, DC4.0*1.7mm, DC3.5*1.35mm,
Quick Details
-
Cell size:
-
158.75mmx158.75mm
-
Type:
-
10w Solar Panel
-
Panel Efficiency:
-
23%
-
Warranty:
-
3months-1year
-
Brand Name:
-
KEEPTEEN
-
Model Number:
-
D20-18
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
8*25*35cm
-
Working Volt:
-
6v 9v 12v voltage output
-
Material:
-
ETFE Solar
-
surface:
-
Tempering Glass
-
Capacity:
-
54000mAh
-
Solar Working Power:
-
20W
-
Output Voltage:
-
12V/2A, 9V/2.6A, 6V/4A
-
Cable length:
-
2m
-
MPPT:
-
Yes
-
battery:
-
18pcs 18650 battery
-
Plug:
-
DC5.5*2.1mm, DC4.0*1.7mm, DC3.5*1.35mm,
D20 Full 20w Solar Panel kit system with built in 54000mAh 18650 battery Output 5v 6v 9v 12v voltage
Features:
1. Full 20W solar Panel
2. ETFE Solar meterial
3. Lightweight Solar
4.MPPT(Maximum Power Point Tracking)
5.Built in 18pcs 18650 li battery(54000mAh capacity)
6.Output 5v/6v/9v/12v voltage
Description:
1.Solar Panel:Full 20W,Monocrystalline silicon,ETFE Surface,23% Conversion rate,Lightweight.
2. High-end Smart IC.Adjust the charging current by detecting the current, reducing the risk of burnout.
3. MMPT IC(Maximum Power Point Tracking),Max conversion of solar energy.
4. Using high-end solid capacitorsAvoiding the phenomenon of overheating and burning the shell.
5. Bulit-in Max 18pcs(optional) 3000mAh 18650 Li Battery,3series and 6 parallel circuits.
6. 2 kinds charge way:Charge by 15v/2A(5 hours) and Charge by sunshine(3 days).
7.Connector:USB and DC5521
8.Output voltage:12v/1a,9v/2a,6v/2a,5v/2a.
9.Short circuit reverse connection protection
10.Overchargeing protection
11.Working Temperature:‘-10℃~60℃(-14℉~140℉),lower working temperature available.
12.IP 66 waterproof
13.Certification:Patent/CE/FCC/Rosh
Usage:
Charge Air Fan
Charge security ip camera
Charge audio recorder
Charge outdoor wireless router
Charge all kinds of outdoor Electronics product

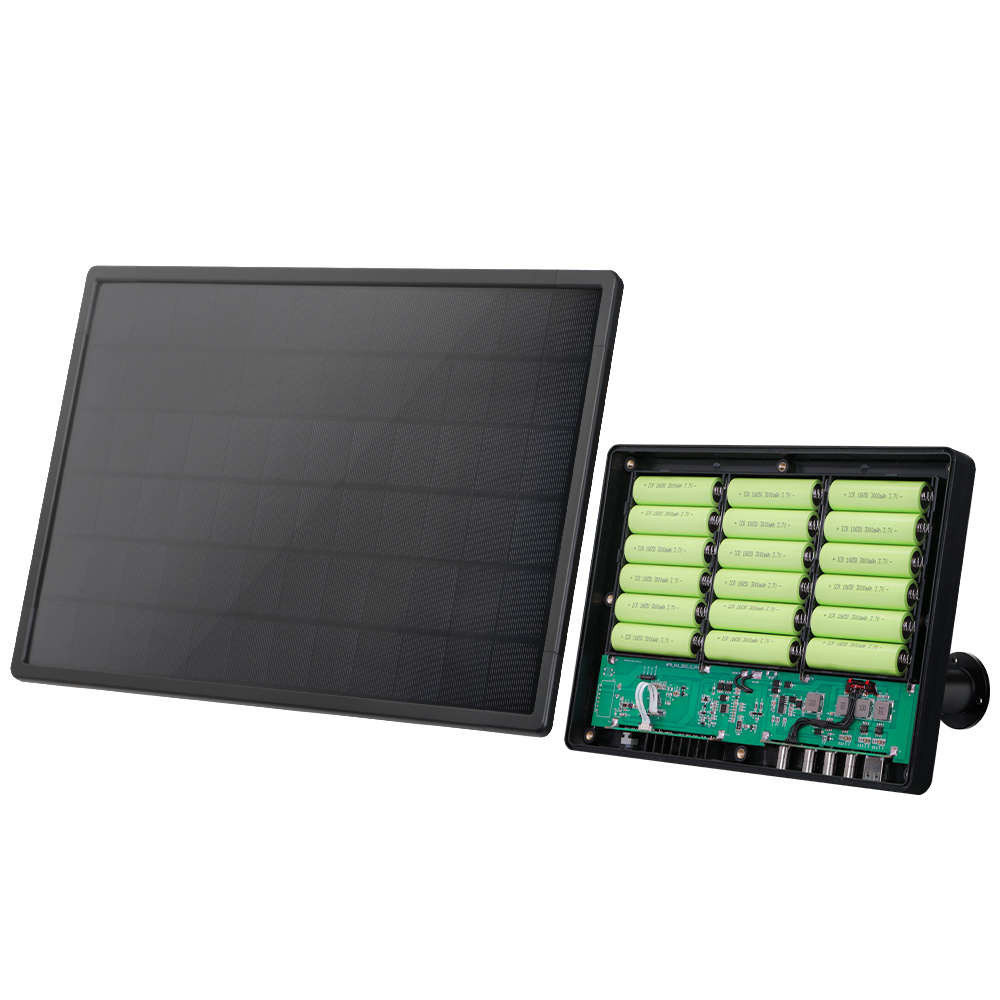

D20 Solar panel built in controller and 54000mAh battery
|
||
| Solar Panel |
PCE(conversion efficiency)
|
23% |
| Working Power | 20W(Full 20W) | |
| Working Volt | 5v/6v/9v/12v | |
| Material | Monocrystalline silicon | |
| surface | ETFE | |
| Size | 435x262mm | |
| Battery Kind | 18650 li battery(3000mAh/1 C) | |
| Battery | Battery Power | Max 199.8wh |
| Battery Voltage | 3.7V | |
| Capacity | 0/9000/18000/27000/36000/45000/54000mAh | |
|
Circuit Combination
|
max 18pcs 18650 battery(3 series and 6 parallel circuits)
|
|
|
Battery Removable or not
|
Yes(0/3/6/9/12/15/18) optional | |
| Input | Charging Time | 5 hours if Charging by DC 15V/2A range |
| 12 hours if charging by strong sunshine(3 normal Day) | ||
| Output | Output Voltage |
12V/1.5A--DC5521
9V/2A--DC5521 6V/2A--DC5521 5V/2A--USB |
| Circuit Protection | Yes | Short circuit reverse connection protection |
| Overcharging protection | ||
| MPPT | Yes | Maximum Power Point Tracking |
| Interface | Plug |
DC5521--12V/1.5A
DC5521--9V/2A DC5521--6V/2A USB--5V/2A |
| Cable length | 2M(DC5521 male--DC5521 male) | |
|
Installation
|
1 kinds | Tripod Mount (M6 Screw) |
| LED indicator | indicator Power Capacity and Charging Status | |
| Working Temperature:-10C~60C(-14 f~140 f) | available if lower working temperature | |
| Waterproof | IP66 | |
| Power key | yes | |
| Size | Product Size | 44x27x4cm |
| Packing Size | 50x30.5x7.5cm | |
| Weight | Product Weight | 1.4kg without battery/1.955kg if 18pcs battery |
| Packing Weight | 1.6kg without battery/2.2kg if 18pcs battery | |
| Accessories | 20w Solar Panel--1pc | |
| Certification | CE/FCC/Rohs | |
