Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GP, Greenpower
-
Model Number:
-
GPWF1-24/630A
-
Rated voltage:
-
12kV, 24kV, 40.5kV
-
Rated current:
-
400A, 630A, 800A
-
Rated frequency:
-
50/60 Hz
-
Short-time withstand current:
-
12.5 kA/1s, 16 kA/1s
-
Applied standards:
-
IEC 62271-103, IEC 60265-1, ANSI C37.90.1-2/62.45
-
Mechanical stability operation:
-
5000 times
-
Website:
-
www.sinogp.com
-
E-mail:
-
gp(at)sinogp.com
Quick Details
-
Number of Pole:
-
3
-
Rated Current:
-
630
-
Rated Voltage:
-
24000
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GP, Greenpower
-
Model Number:
-
GPWF1-24/630A
-
Rated voltage:
-
12kV, 24kV, 40.5kV
-
Rated current:
-
400A, 630A, 800A
-
Rated frequency:
-
50/60 Hz
-
Short-time withstand current:
-
12.5 kA/1s, 16 kA/1s
-
Applied standards:
-
IEC 62271-103, IEC 60265-1, ANSI C37.90.1-2/62.45
-
Mechanical stability operation:
-
5000 times
-
Website:
-
www.sinogp.com
-
E-mail:
-
gp(at)sinogp.com
Product Show

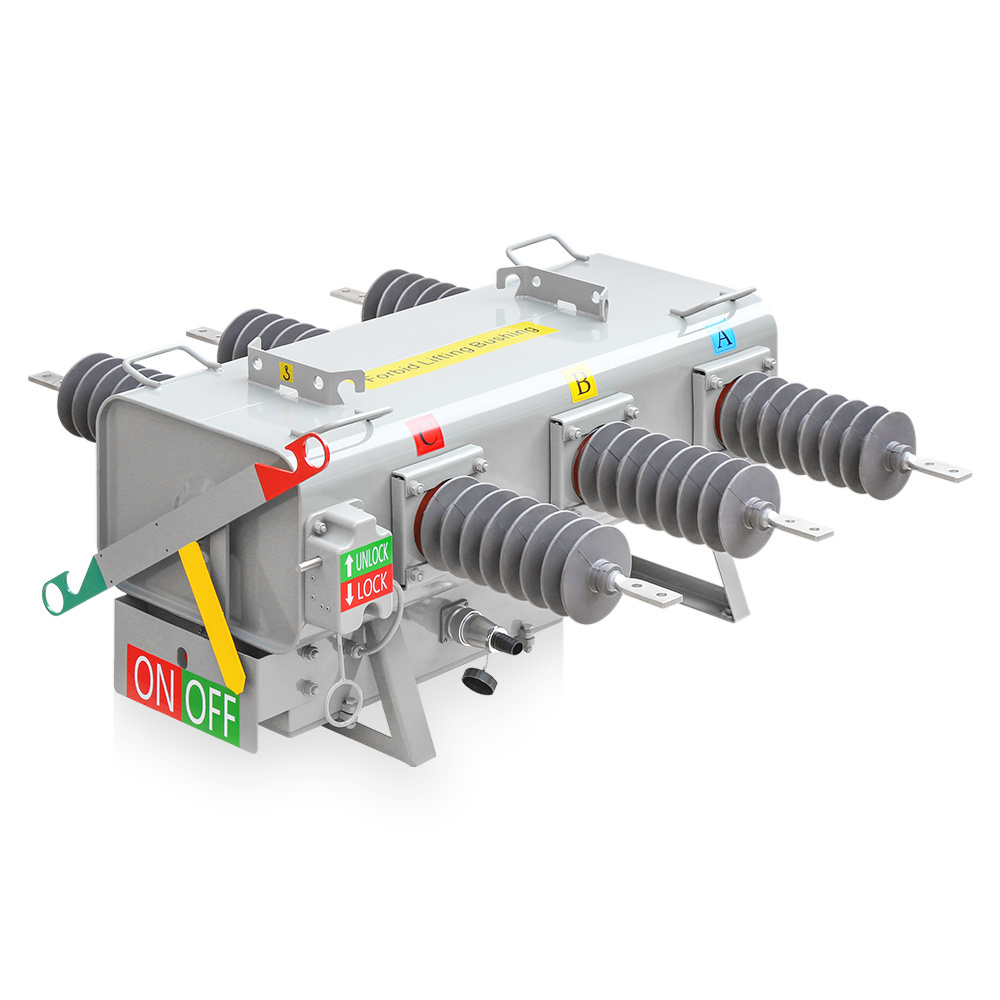

GPWF1 Series Outdoor Load Switch
The load switch of GPWF1 series installed on the pole is suitable for the rated voltage of 12/24/40.5kV, rated current of 630A~800A, 50/60Hz distribution network to turn off and close the load current and overload current in the power system, and can automatically isolate the faulty distribution line section. The load switch comes with the latest technology electronic controller and can be operated manually, electrically and remotely. The electronic controller is housed in a stainless steel case and can be used under various weather conditions. In addition, wired and wireless modems can be installed in the box for remote monitoring and control. The installation on the pole is simple, the layout is convenient and fast, and the construction cost is reduced.
Technology & Details
◼
24kV
Outdoor Load Switch
◼
40.5kV
Outdoor Load Switch
◼
Appearance and dimension of load switch
|
Dimension
(mm)
|
|
|
|
|
Packing size (mm)
|
Weight
(kg)
|
||||
|
Rated voltage
|
A
|
B
|
C
|
D
|
Width × Depth × Height
|
|
||||
|
12kV
|
225
|
500
|
803
|
1220
|
1100 × 900 × 700
|
105
|
||||
|
24kV
|
300
|
650
|
953
|
1440
|
1300 × 1100 × 700
|
145
|
||||
|
40.5kV
|
400
|
850
|
1153
|
1630
|
1400 × 1200 × 700
|
165
|
||||
◼
Main technical parameters
