Quick Details
-
Brick size:
-
150*150*100 mm, 200*200*60 mm, 300*150*100 mm, 400*100*200 mm, 400*120*200 mm, 400*150*200 mm, 400*200*200 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yugong
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2050*1500*2250
-
Weight (KG):
-
2000 kg
-
Product Name:
-
Concrete block machine
-
Demolding and turning method:
-
hydraulic
-
Hydraulic pressure:
-
16-20Mpa
-
Total Power:
-
16KW
-
Total weight:
-
4500ks
-
Molding cycle:
-
10-15S
-
Moving method:
-
auto
-
Exxcitation way:
-
Three-dimensional box excitation
-
Capacity(pcs/h):
-
2880
-
Color:
-
Can be customized
Quick Details
-
Type:
-
Curbstone Block Machine, Hollow Block Making Machine, Interlock Block Making Machine, Paving Block Making Machine
-
Brick Raw Material:
-
Cement
-
Production Capacity (Pieces/8 hours):
-
1000 pcs/8hours, 1500 pcs/8hours, 2500 pcs/8hours, 3000 pcs/8hours, 4480 pcs/8hours, 5760 pcs/8hours, 800 pcs/8hours
-
Brick size:
-
150*150*100 mm, 200*200*60 mm, 300*150*100 mm, 400*100*200 mm, 400*120*200 mm, 400*150*200 mm, 400*200*200 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yugong
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2050*1500*2250
-
Weight (KG):
-
2000 kg
-
Product Name:
-
Concrete block machine
-
Demolding and turning method:
-
hydraulic
-
Hydraulic pressure:
-
16-20Mpa
-
Total Power:
-
16KW
-
Total weight:
-
4500ks
-
Molding cycle:
-
10-15S
-
Moving method:
-
auto
-
Exxcitation way:
-
Three-dimensional box excitation
-
Capacity(pcs/h):
-
2880
-
Color:
-
Can be customized

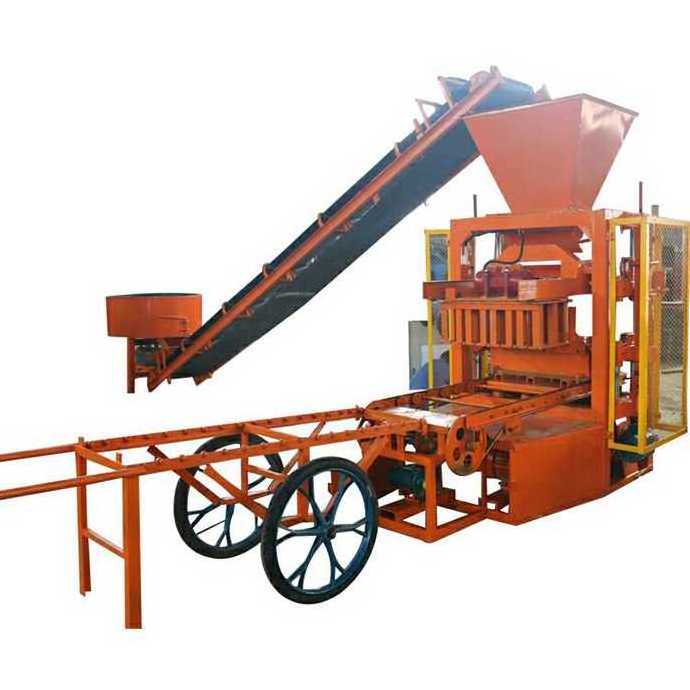

Resonable designed achieve box vibration, hydraulic stripping,omnidirectional automatically movement. High quality of steel and precision welding made the machine a longer service life and hydraulic system made less fault during work. QMY12-15 has large productivity than the other small brick machine, the block density becomes higher, shaping speed quicker and block strength more.
| Model |
Pcs/cycle 400*200*200 |
Pcs/h 400*200*200 |
Power | Phase |
| YGM2-45 | 2 | 160 | Diesel/electric | Three/Single |
| YGM4-45 | 4 | 320 | Diesel/electric | Three/Single |
| YGM5-45 | 5 | 400 | Diesel/electric | Three/Single |
| YGM4-30 | 4 | 480 | Electric | Three |
| YGM6-25 | 6 | 864 | Electric | Three |
| YGM12-15 | 12 | 2880 | Electric | Three |
| YGM18-15 | 18 | 4320 | Electric | Three |
Product Characters:
1.Advanced technology,high quality: The whole machine adopts supreme quality steel, precise welding,imported hydraulic components.
2.The hydraulic system and the machinery system of this equipment supplement each other and the operating of it is very simple;
3.No need pallets, low investment high profits;
4.Raw material wide application:stone,lime,sand,coal gangues, fly ash,construction waste,tailings as raw materials, suitable for different conditions raw materials;
5.The major vibration form is mould vibration, which can make super vibration influence with small power.With the pressure of hydraulic system, it makes the raw material adding adequately and compacting adequately;
6.It can produce various kind of concrete production by easily changing the mould.
