Quick Details
-
Product name:
-

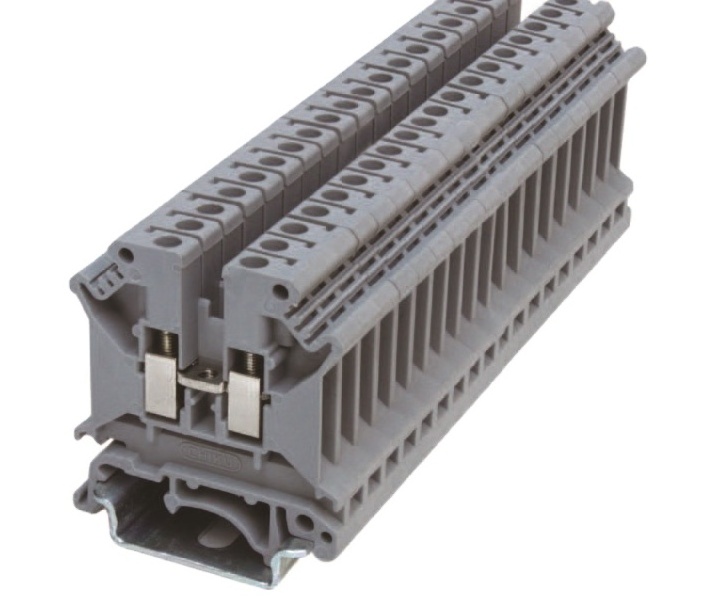

UK 5N terminal block din rail
-
Body material:
-
PA66
-
Certificate:
-
CE,ISO 9001,ISO 14001,OHASA 18001
-
Color:
-
Gray ,blue, orange, red and etc
-
Flammability Leve:
-
V0
-
Rated Current:
-
41A
-
Rated current:
-
800V
-
Spring Material:
-
Brass
-
Application:
-
power distribution box and etc
Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
CHIKU
-
Model Number:
-
RUK 5N
-
Product name:
-
UK 5N terminal block din rail
-
Body material:
-
PA66
-
Certificate:
-
CE,ISO 9001,ISO 14001,OHASA 18001
-
Color:
-
Gray ,blue, orange, red and etc
-
Flammability Leve:
-
V0
-
Rated Current:
-
41A
-
Rated current:
-
800V
-
Spring Material:
-
Brass
-
Application:
-
power distribution box and etc
RoHS certificate din rail mounted terminal blocks UK 5N Thickness 6.2 mm 41 A / 4 mm
RUK 5N
General
|
Number of levels |
1 |
|
Number of connections |
2 |
|
Nominal cross section |
6mm² |
|
C olor |
g ray, red, blue, yellow |
|
Insulating material |
PA |
|
Flammability rating according to UL 94 |
V0 |
|
Rated surge voltage |
8Kv |
|
Degree of pollution |
3 |
|
Connection in acc. with standard |
GB30847/IEC 60947-7-1 |
|
R ated operational current |
41A |
|
R ated operational voltage |
800V |
|
R ated current max. |
41A |
|
R ated voltage max. |
800V |
|
Temperature index |
130RTI/120TI |
