The clamp is made of aluminium and steel parts are hot-dip galvanized.
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
Dead End Clamp
-
Material:
-
Aluminum alloy,steel
-
Application:
-
Overhead Line Accessories
-
Dead End Clamp Material:
-
Nylon Plus fiber glass,stainless steel
-
Dead End Clamp Breaking Load:
-
10KN
-
Dead End Clamp Quality:
-
Prime, high quality
-
Dead End Clamp Price Range:
-
Average
-
Others:
-
OEM Service Offered
-
Item:
-
ABC accessories
Quick Details
-
Brand Name:
-
YOJIU
-
Place of Origin:
-
Zhejiang, China, Zhejiang
-
Model Number:
-
dead end clamp
-
Product name:
-
Dead End Clamp
-
Material:
-
Aluminum alloy,steel
-
Application:
-
Overhead Line Accessories
-
Dead End Clamp Material:
-
Nylon Plus fiber glass,stainless steel
-
Dead End Clamp Breaking Load:
-
10KN
-
Dead End Clamp Quality:
-
Prime, high quality
-
Dead End Clamp Price Range:
-
Average
-
Others:
-
OEM Service Offered
-
Item:
-
ABC accessories

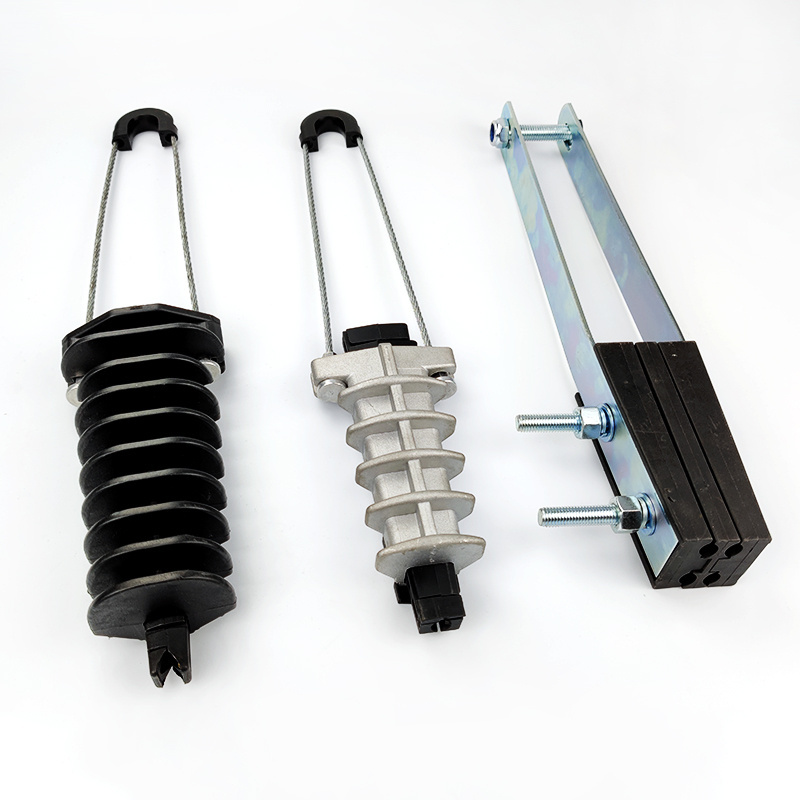

Anchoring Dead End Clamp
Dead-end clamp is used for ending overhead lines to poles or walls.
Description of Dead end clamp for ab cable
Dead end clamp for ab cable service line.The dead end clamp is designed to anchor insulated service lines with 2 or 4 conductors to the pole or wall. The clamp is composed of a body, wedges and removable and adjustable bail or pad. One core Anchor clamps are design to supporting the neutral messenger,the wedge can be self-adjusting. Pilot wires or street lighting conductor are led alongside the clamp. The self opening is featured by an integrate spring facilities for easily insert the conductor into the clamp.
Material of dead end clamp
The clamp body, the main mechanical component is manufactured in heavy duty weatherproof synthetic material.
The wedge, made from synthetic material exerts necessary mechanical pressure in retaining the cable in the body of the clamp.
The pull hook is made from anti corrosion rod.
For anchoring isolated coaxial and unipolar cables.
The wedge, made from synthetic material exerts necessary mechanical pressure in retaining the cable in the body of the clamp.
The pull hook is made from anti corrosion rod.
For anchoring isolated coaxial and unipolar cables.
For the correct dead end clamp installation, the following steps are recommended:
* Loosen the mooring hook from the anchor clamp.
* Place the hook en the place to be mooring point or support, fixing it inside the body of the clamp
* Remove the wedge from its base and then place the cable within the clamp.
* Replace the wedge to its corresponding position and proceed to tense the cable taut.
* Place the hook en the place to be mooring point or support, fixing it inside the body of the clamp
* Remove the wedge from its base and then place the cable within the clamp.
* Replace the wedge to its corresponding position and proceed to tense the cable taut.
|
Item No.
|
Cross section(mm²)
|
Messsenger DIA.(mm)
|
Breaking load
|
|
YJPA 500
|
16-35
|
8-11
|
4 KN
|
|
YJPA 1000
|
25-35
|
8-11
|
10 KN
|
|
YJPA 1500
|
50-70
|
11-14
|
15 KN
|
|
YJPA 2000
|
70-95
|
14-16
|
20 KN
|
|
YJPAR20
|
2×(16-25)
|
10-16
|
2.5 KN
|
|
YJPAR21
|
2×4 -4×25
|
4-19
|
2.5 KN
|
