Quick Details
-
Brand Name:
-
CX-Induction
-
Voltage:
-
380V 400V 415V 480V etc
-
Dimension(L*W*H):
-
200*300
-
Weight (T):
-
1.5 T
-
Power (kW):
-
80
-
Applicable Industries:
-
university and research institution, carbon materials, Carbon-based materials, Lithium battery anode material, graphite material, New energy vehicle
-
Product Nam:
-
Laboratory Furnace
-
Model:
-
CX-GF20/30 VT
-
Usable size:
-
D200Hx300H 9L
-
Max temperature:
-
3000C
-
Working temperature:
-
2850C
-
Certification:
-
CE, ISO, UL reports
-
Heating method:
-
Induction Method
-
Furnace type:
-
Vertical, top loading
-
Application:
-
Advanced carbon material
-
Furnace footprint:
-
L1600xW1350xH1820mm
Quick Details
-
Place of Origin:
-
Hunan, China
-
Marketing Type:
-
Hot Product 2024
-
Core Components:
-
vacuum pump, Temperature controller, IGBT power supply, graphite heating element, Corundum, Fluke pyrometer, Siemens PLC, induction coil
-
Brand Name:
-
CX-Induction
-
Voltage:
-
380V 400V 415V 480V etc
-
Dimension(L*W*H):
-
200*300
-
Weight (T):
-
1.5 T
-
Power (kW):
-
80
-
Applicable Industries:
-
university and research institution, carbon materials, Carbon-based materials, Lithium battery anode material, graphite material, New energy vehicle
-
Product Nam:
-
Laboratory Furnace
-
Model:
-
CX-GF20/30 VT
-
Usable size:
-
D200Hx300H 9L
-
Max temperature:
-
3000C
-
Working temperature:
-
2850C
-
Certification:
-
CE, ISO, UL reports
-
Heating method:
-
Induction Method
-
Furnace type:
-
Vertical, top loading
-
Application:
-
Advanced carbon material
-
Furnace footprint:
-
L1600xW1350xH1820mm
Product Description
China CE ISO 3000 degree graphitization furnace with Argon atmosphere

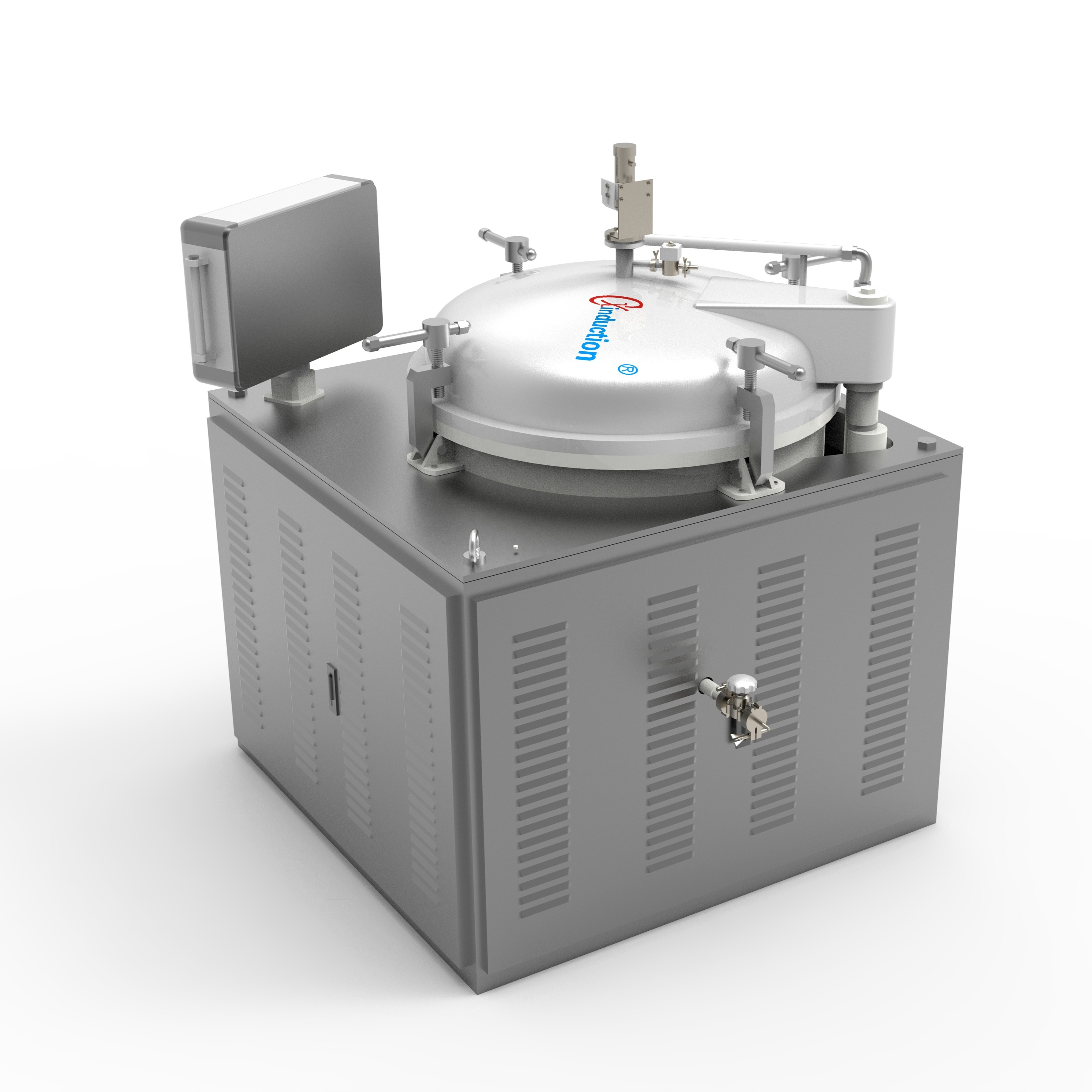

CX-GF20/30 VT is vertical top loading induction heating furnace with round hot zone shape. This model is ideal for various research applications and new materials development. Simple operation and easy maintenance process of this furnace, save time and budget in research projects. With maximum operating temperature of 3000 ℃, this model can be used for many applications.
|
Model
|
CX-GF20/30 VT
|
|
Configuration
|
Vertical, Top loading
|
|
Max. Design Temperature
|
3000 ℃
|
|
Continuous Working Temperature
|
2950 ℃
|
|
Usable Space (mm)
|
Dia. * H: Φ200*300
|
|
Heating Power
|
80 KW
|
|
Frequency
|
2500 Hz (auto-track)
|
|
Ultimate Vacuum
|
1.2 * 10-3 mbar
|
|
Optional High Vacuum
|
5 * 10-5 mbar
|
|
Working Atmosphere
|
High Vacuum (Optional) / Vacuum / Inert Gas (Ar or N2)
|
|
Supply Power
|
3 -phase， 380v，400v, 415v，480v can be customized
|
|
Cooling Water Pressure
|
1.5 - 2.5 bar
|
|
Cooling Water Temperature
|
≤ 28℃
|
|
Overall Dimension (L*W*H, mm)
|
L1600*W1350*H1820mm)
|
|
Weight (KG)
|
around 1500
|
CX-Induction 3000 degree graphitization furnace support vacuum(under 2000C) and Argon atmosphere.
The furnace with small footprint, ideal for laboratory and universities.
The furnace with excellent temp uniformity, power-saving, user friendly, and passed
CE & ISO certifications, UL reports, which received good feedback from clients both home and abroad.
Main Application:
Carbon related materials:
Petroleum coke
Needle coke
coke
carbon fiber (CF)
Graphene Oxide(GO)
Carbon composites
Furnace Structure
Packing&Shipping
Rich experience in packaging and shipping.
After Sales Service
Company Introduction
Founded in June 2003, Zhuzhou Chenxin Induction Equipment Co.,Ltd is a scientific and technological enterprise relying on semiconductor converting technology. We has always been commitied to the manufacturer of various industrial furnace products, and have won several provincial technological progress awards and patent certificates. Our products have been exported to Vietnam, Thailand, Sayria, South Africa, Japan, Korea, USA and other countries as well as more than 20 domestic provinces and cities.
Customer Photos
FAQ
Question: Are you a factory?
[Amy reply:] Yes. We focused on 3000C graphitization furnace, with rich experience, we can customize the ideal furnace to meet your requests.
[Amy reply:] Yes. We focused on 3000C graphitization furnace, with rich experience, we can customize the ideal furnace to meet your requests.
Question: Can you serve overseas installation and debugging?
[Amy reply:] Yes. We can dispatch our engineer to your city for installation and debugging or other service. Meanwhile, we will offer relevant documents: The plan of equipment; Foundation condition graph; The layout of equipment; Electric control system schematic diagram; Main accessories operating instructions and qualification etc.
[Amy reply:] Yes. We can dispatch our engineer to your city for installation and debugging or other service. Meanwhile, we will offer relevant documents: The plan of equipment; Foundation condition graph; The layout of equipment; Electric control system schematic diagram; Main accessories operating instructions and qualification etc.
