Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sunrise
-
Model Number:
-
SR568
-
Warranty:
-
12 Months
-
Colour:
-
optional
-
Certification:
-
CE
-
max wheel diameter:
-
1600mm
-
Standard accessories:
-
yes
-
drive system:
-
hydraulic
-
Rim diameter:
-
14"-26"
-
tool arm positioning:
-
Remote
-
Tool head positioning:
-
Remote
Quick Details
-
Motor Power:
-
1.5KW/1.8KW
-
Operating Pressure:
-
0-130bar
-
Power Supply:
-
220V/380V-3Ph
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sunrise
-
Model Number:
-
SR568
-
Warranty:
-
12 Months
-
Colour:
-
optional
-
Certification:
-
CE
-
max wheel diameter:
-
1600mm
-
Standard accessories:
-
yes
-
drive system:
-
hydraulic
-
Rim diameter:
-
14"-26"
-
tool arm positioning:
-
Remote
-
Tool head positioning:
-
Remote

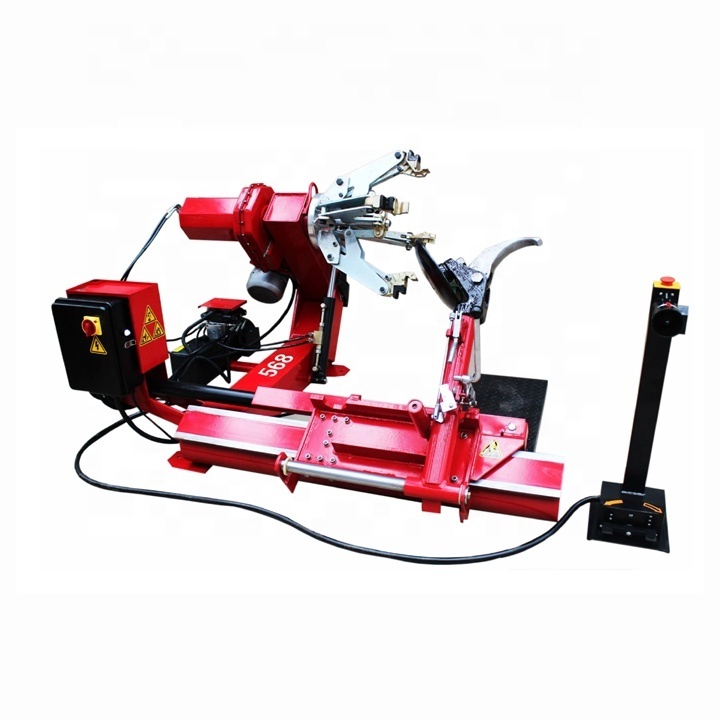

Truck tire changer SR568:
Features:
1.Semi-automatic universal truck tire changer,
2.All movements of the working parts are guide by the movable control platform ,
3.particulary suitable for handling truck wheels,farm wheels,passenger car wheels and industrial vehicle wheels between 14"-26"
4.Four-jaw universal chuck
5.movable control unit
6.Locking jaws with different gripping possibilities
7.Hydraulic motor with pressure regulating device
8.Working arm with quick rotation system
Technical specifictions:
| Rim diameter | 14"-26" |
| Max.wheel weight | 500kg |
| Max.wheel width | 780mm |
| Max.wheel diameter | 1600mm |
| Hydraulic pump motor | 1.5KW |
| Geaxboxmotor | 1.8Kw |
| Operation control voltage | 24V |
| Bead breaker force | 2500Kg |
| Noise level | <70dB |
| Package size(mm) | 2030×1600×1000 |
| Weight |
570/650kg |
Package:
