Fast bottle washing.High working efficiency.
Less water consumption.
Cleaning bottle thoroughly.
Simple operation.
Large bottle application.
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
99.7%
-
Voltage:
-
220V/380V/110V
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GOFAR
-
Dimension(L*W*H):
-
1700*1750*1900mm
-
Weight:
-
800 KG
-
Product name:
-
glass bottle washers
-
Keywords:
-
glass bottle washers
-
Function:
-
Washing Filling Capping
-
Bottle type:
-
PET Plastic Bottle Glass Bottle
-
Suitable for:
-
0.5ml/1ml/2ml/5ml/10ml Thread Cartridge
-
Range of Application:
-
all kinds of bottles
-
Washing type:
-
high pressure sprinkler external shower
-
Water source:
-
hot water,purifided water
-
Material:
-
SUS304
Quick Details
-
Machinery Capacity:
-
3000BPH
-
Packaging Material:
-
Plastic, Wood
-
Filling Material:
-
Beer, Other, Milk, Water, Oil, Juice
-
Filling Accuracy:
-
99.7%
-
Voltage:
-
220V/380V/110V
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GOFAR
-
Dimension(L*W*H):
-
1700*1750*1900mm
-
Weight:
-
800 KG
-
Product name:
-
glass bottle washers
-
Keywords:
-
glass bottle washers
-
Function:
-
Washing Filling Capping
-
Bottle type:
-
PET Plastic Bottle Glass Bottle
-
Suitable for:
-
0.5ml/1ml/2ml/5ml/10ml Thread Cartridge
-
Range of Application:
-
all kinds of bottles
-
Washing type:
-
high pressure sprinkler external shower
-
Water source:
-
hot water,purifided water
-
Material:
-
SUS304

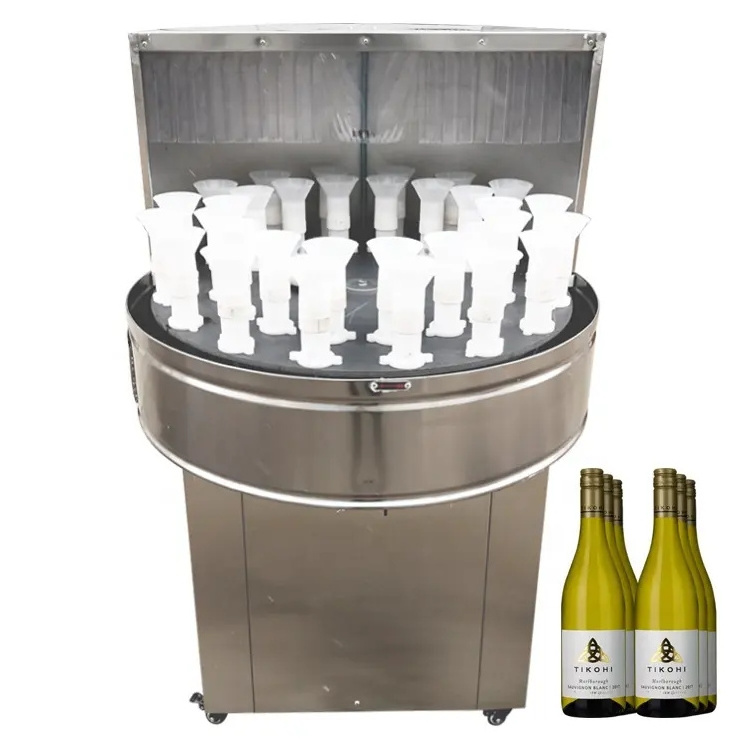

Automatic industrial rotary type wine glass bottle cleaning washer washing machine wash bottles glass
This machine is mainly used for cleaning new glass bottles or old cleaned bottles and polyester bottles before filling.It can be combined with filling machine, capping machine, conveyor and other packaging production line. And it is widely used inwineries,beverage factories, brewing factories, pharmaceutical factories and other packaging lines.
Hello friend ,This is Daisy,welcome view our products, I am a manufacturer of liquid filling equipment.If you need any equipment,welcome to contact me ,different filling heads quatities match with different capability need,you can tell me your capability,so that ican recommend match model for you.,i will give you quotation as soon as possible .
|
model |
Washing heads
|
production efficiency
|
Applicable bottle type
|
|
Power
(kw) |
Size(mm) |
|
|
|
|
|
Height
(mm) |
Diameter
(mm) |
|
|
|
|
GFQSP-18
|
18
|
3500
|
160-350
|
Φ50—Φ100
|
1.9
|
1400×1400×2200
|
|
|
GFQSP-24
|
24
|
5000
|
160-350
|
Φ50—Φ100
|
2.3
|
1600×1800×2200
|
|
|
GFQSP-30
|
30
|
6000
|
160-350
|
Φ50—Φ100
|
2.5
|
1700×2150×2200
|
|
|
GFQSP-40
|
40
|
8000
|
160-350
|
Φ50—Φ100
|
3
|
2000×2500×2200
|
|
|
GFQSP-48
|
48
|
10000
|
160-350
|
Φ50—Φ100
|
3.5
|
2200×2800×2200
|
|
|
GFQSP-60
|
60
|
12000
|
160-350
|
Φ50—Φ100
|
5
|
3000×3200×2200
|
|
Product Feature
Fast bottle washing.High working efficiency.
Less water consumption.
Cleaning bottle thoroughly.
Simple operation.
Large bottle application.
To clamp bottle mouth tightly.No damage bottle.
Food grade material.
To keep bottles move freely and smoothly. High quality material no damage the bottles.
Glass housing protection
Tempered glass for protection.High quality hinge for tight connection
Tempered glass for protection.High quality hinge for tight connection
1. The mechanical hand stamping parts and casting materials are all made of national standard 304 material, which ensures the corrosion resistance of the material.The manipulator has the characteristics of accurate positioning and easy turnover of the bottle.
2. The Bottle pusher is made from organic polymer materials. It could push back or forward to adapt the bottle’s diameter. When the automatic washing machine is running, this pusher could deliver the bottle from the front conveyor line to the washing machine automatically.
3. The Rinser part will wash the bottle automatically, which including the inside and outside surface.
4. The bottle gear is made from organic polymer materials. It could custom-made by the different bottle type. This part is responsible for take t he bottle from bottle gear to mechanical hand. When the washing is finished, it will take the bottle back to the co nveyor line.
2. The Bottle pusher is made from organic polymer materials. It could push back or forward to adapt the bottle’s diameter. When the automatic washing machine is running, this pusher could deliver the bottle from the front conveyor line to the washing machine automatically.
3. The Rinser part will wash the bottle automatically, which including the inside and outside surface.
4. The bottle gear is made from organic polymer materials. It could custom-made by the different bottle type. This part is responsible for take t he bottle from bottle gear to mechanical hand. When the washing is finished, it will take the bottle back to the co nveyor line.
